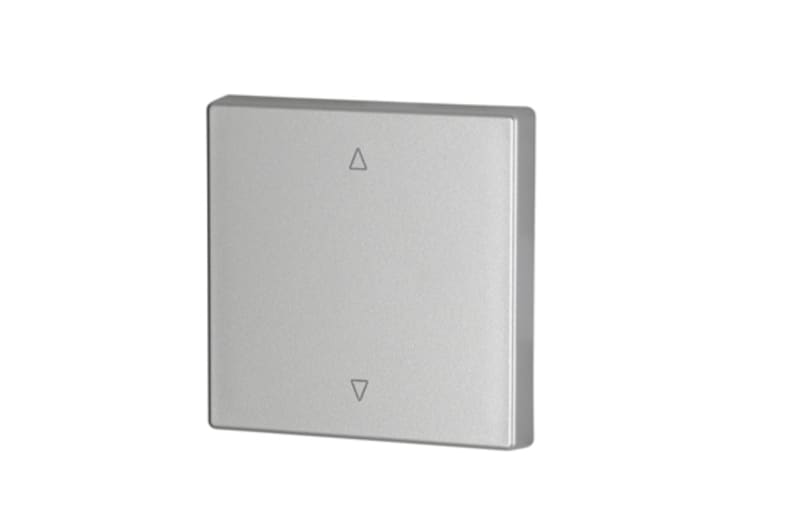

Eaton 147615 CWIZ-01/23 Single Rocker Silver 55x55 mm Up/Down Arrows
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 147615 (CWIZ-01/23) single-hallway push-button rocker cap in matte silver lacquered thermoplastic, 55x55 mm with arrow symbols for up/down control. Intended for Venetian blind switch applications in the 55 mm universal pushbutton range.
Technical Specifications
- Manufacturer part number (MPN)
- 147615
- EAN / GTIN
- 4015081440757
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 147615
- Depth
- 55 mm
- Height
- 7 mm
- Width
- 55 mm
- Weight
- 7.09 g
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Features
- Halogen free
- Surface finishing
- Matt
- Surface protection
- Lacquered
- Material quality
- Thermoplastic
- Color
- Silver
- Material
- Plastic
- Fastening type
- Engage (snap)
- Degree of protection
- IK00; IP20
- Model
- Single rocker
- Imprint/indication
- Symbol "arrows"
- Bus system product type
- Rocker
- Utilization
- Venetian blind
- Number of gangs (rocker)
- 1
- RAL-number (Akin)
- 7001
- Dimensions
- 55x55 mm
- Colour
- Silver
- Halogen free
- Yes
- Monitoring window/light outlet
- No
- Impact strength
- IK00
- With label area
- No
- With exchangeable lens/symbol
- No
- Suitable for degree of protection (IP)
- IP20
- Suitable for touch sensor connector for bus system
- Yes
- Scannable symbol/barrier free
- No
- Anti-bacterial treatment
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4015081440757
- SAP 1200607503
- Code 82997966
