Of/On-switch,P1-40/Z/N

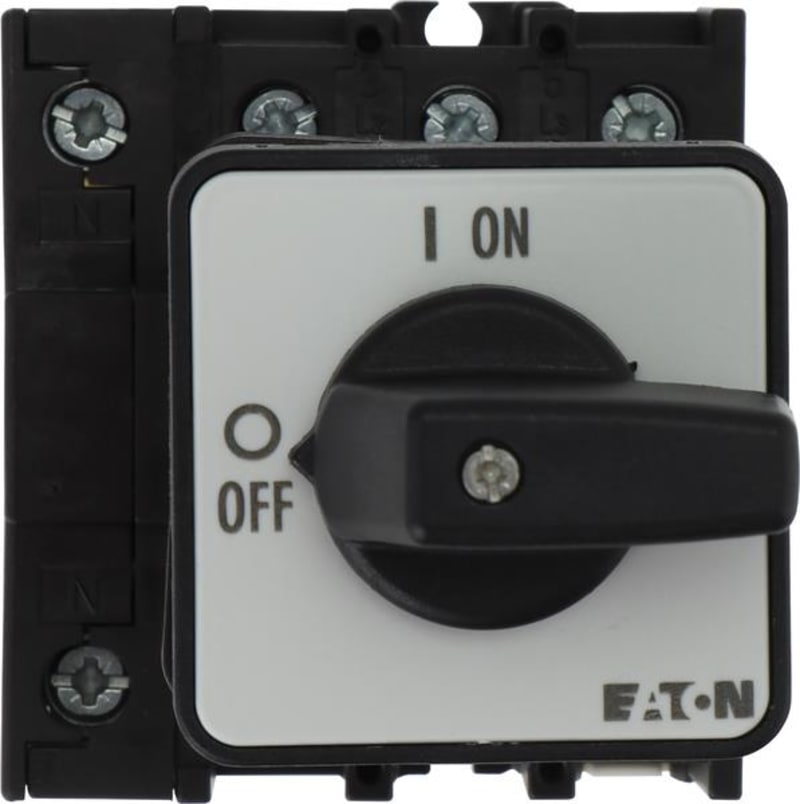

Eaton P1-40/Z/N Of/On-switch, P1, 40 A, rear mounted, 3-phase + N, with black rotary handle.

Manufacturer part number (MPN)

P1-40/Z/N

EAN / GTIN

4015082952990

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199966

Depth

130 mm

Height

70 mm

Width

65 mm

Weight

0.161 kg

Compliances

UKCA; CE

Certifications

IEC/EN 60947; IEC/EN 60947-3; IEC/EN 60204

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Black

Actuator type

Short thumb-grip

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1.9 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

290 kA

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

130 kA

Rated operational current (Ie) at AC-21, 440 V

40 A

Rated operational current (Ie) at AC-23A, 230 V

40 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-23A, 690 V

20 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

30 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

30 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

17 A

Rated operational power at AC-23A, 220/230 V, 50 Hz

11 kW

Rated operational power at AC-23A, 400 V, 50 Hz

22 kW

Rated operational power at AC-23A, 690 V, 50 Hz

18.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

15 kW

Rated operational power at AC-3, 415 V, 50 Hz

15 kW

Rated operational power at AC-3, 690 V, 50 Hz

15 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

40 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Fitted with

Black thumb grip and front plate; Auxiliary contact

Number of poles

3+N

Accessories

Auxiliary contact fitted by user.

Degree of protection

IP65; NEMA Other

Degree of protection (front side)

IP65

Lifespan, mechanical

300,000 Operations

Mounting method

Rear mounting

Mounting position

As required

Operating frequency

50 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

On-Off switch

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Switching angle

90 °

Rated conditional short-circuit current (Iq)

80 kA

Rated short-time withstand current (Icw)

0.64 kA; 640 A, Contacts, 1 second

Short-circuit protection rating

50 A gG/gL, Fuse, Contacts

Load rating

1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor); 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)

Screw size

M4, Terminal screw

Terminal capacity

1 x (1 - 4) mm², flexible with ferrules to DIN 46228; 2 x (1 - 4) mm², flexible with ferrules to DIN 46228; 1 x 10 mm² with fork terminal; 2 x 10 mm² with fork terminal

Tightening torque

1.6 Nm, Screw terminals

HS Code

8536.90

• EAN 4015082952990
• SAP 1200661140
• Code 83113212
