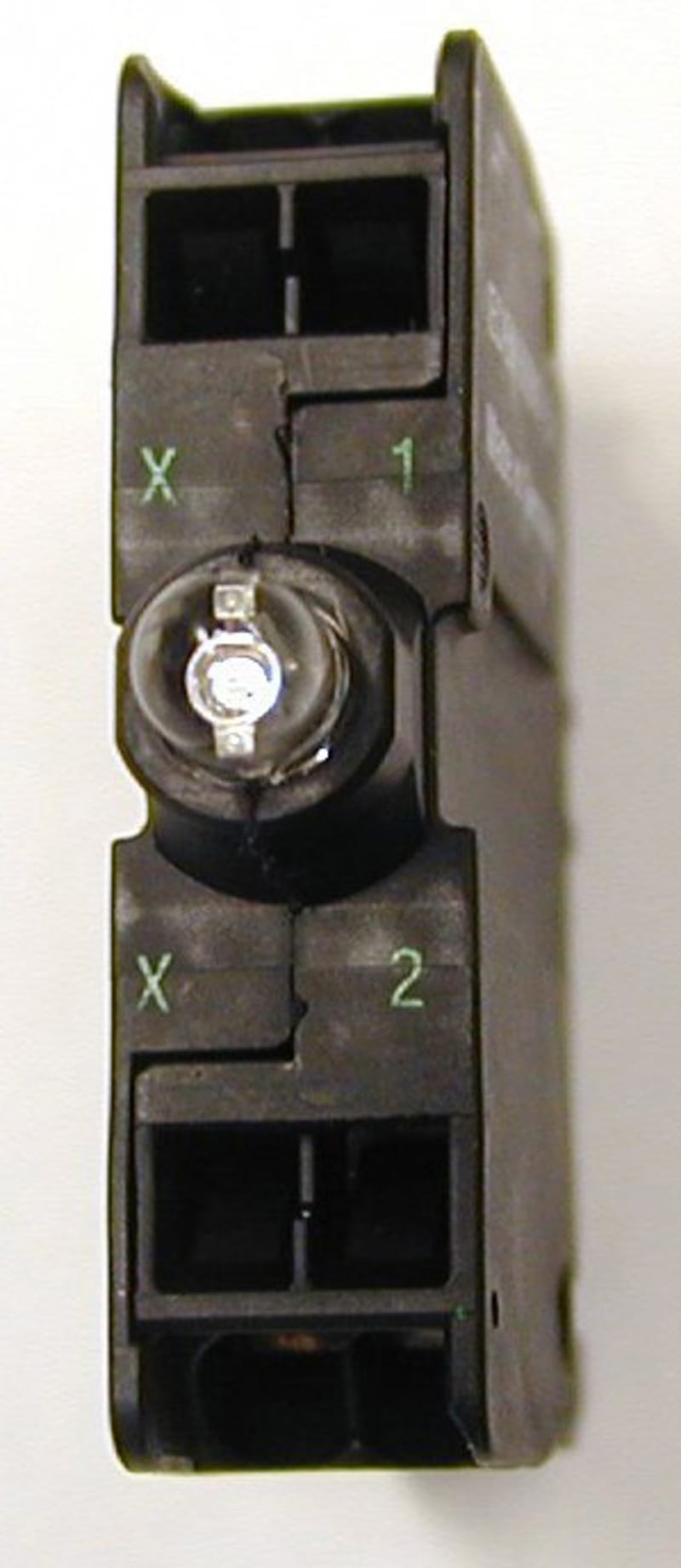

LED-ELEM., 12-30V, BOTTOM, White

Eaton LED-ELEM., 12-30V, BOTTOM, White (part number M22-CLEDC-W) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 216572; Depth: 39 mm; Height: 39 mm; Width: 10 mm.

Manufacturer part number (MPN)

M22-CLEDC-W

EAN / GTIN

4015082165727

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216572

Depth

39 mm

Height

39 mm

Width

10 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; VDE; CSA Class No.: 3211-03; IEC 60947-5-1; CE; CSA File No.: 012528; UL Category Control No.: NKCR; IEC/EN 60947-5; CSA-C22.2 No. 14-05; UL; CSA-C22.2 No. 94-91; UL File No.: E29184; CSA

Catalog Notes

Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Static heat dissipation, non-current-dependent Pvs

0.45 W

Power consumption

Max. 0.26 W

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) - max

14 mA

Rated operational current (Ie) - min

5 mA

Rated operational voltage (Ue) at AC - max

30 V

Rated operational voltage (Ue) at AC - min

12 V

Rated operational voltage (Ue) at DC - max

30 V

Rated operational voltage (Ue) at DC - min

12 V

Color

White

Fitted with

Diode; Light source

Light color

White

Degree of protection

IP20

Lifespan, electrical

100,000 h (at 25°C, according to EN60064)

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Voltage type

AC/DC

Connection type

Base fixing

Mounting position

As required

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Lamp holder

None

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Floor fastening

With light source

Yes

Connection type auxiliary circuit

Spring clamp connection

Rated voltage Ue at AC 50 Hz

12–30 V

Rated voltage Ue at AC 60 Hz

12–30 V

Rated voltage Ue at DC

12–30 V

Voltage type for actuating

AC/DC

Country of origin

Germany

HS Code

8541.41

• EAN 4015082165727
• SAP 1000079885
• Code 8843205
