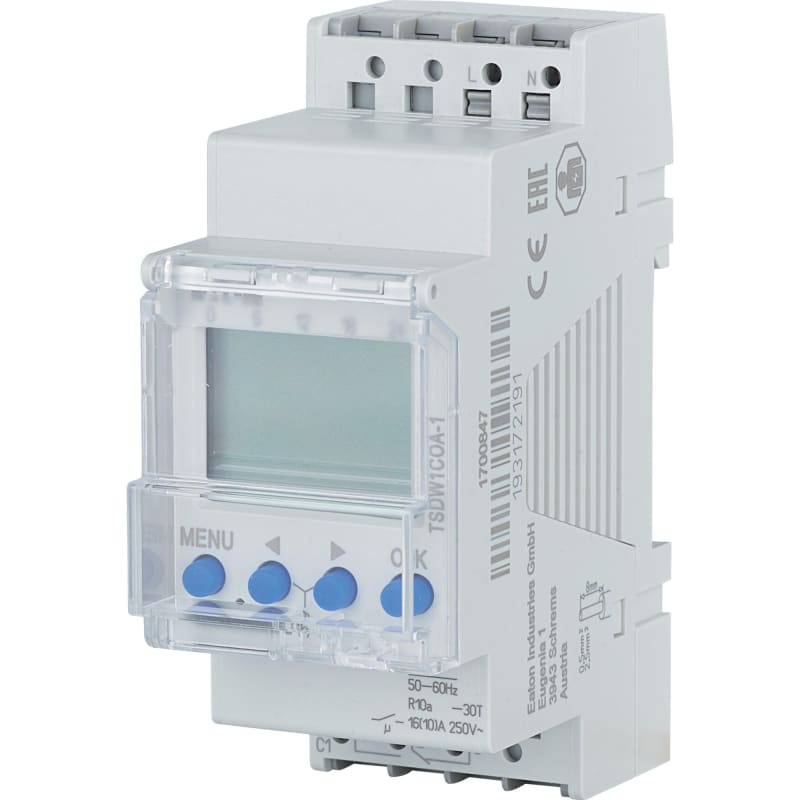

Digital Astro time switch, 1 channel
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Digital Astro time switch, 1 channel (part number 196850) is listed under HVAC & Refrigeration / Thermostats & Controls. Sales unit: pcs; Package quantity: 60 pcs; Eaton catalogue number: 196850; Depth: 69.2 mm; Height: 90.1 mm; Width: 35.8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 196850
- EAN / GTIN
- 9008790990465
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 196850
- Depth
- 69.2 mm
- Height
- 90.1 mm
- Width
- 35.8 mm
- Weight
- 0.107 kg
- Compliances
- RoHS conform
- Mounting method
- DIN rail
- Features
- Text guidance in display
- Number of channels
- 1
- Accuracy per day
- 1 s
- Autonomy in years
- 10 year
- Frequency supply voltage - max
- 60 Hz
- Frequency supply voltage - min
- 50 Hz
- Heat dissipation capacity
- 1.5 W
- Nominal switching current at 250 V AC
- 16 A
- Contact type
- Change-over contact (NO/NC)
- Degree of protection
- IP20
- Functions
- Automatic switching summer-/winter time; Manual operation; Quartz controlled; External programming; 24 h program; Weekly program; Holiday program; Astro program; Switching preselection; Potential free switch contact
- Voltage type
- AC
- Shortest switching time at channel 1
- 1 min
- Number of memory locations
- 56
- Switching power LED - max
- 600 W
- Static heat dissipation, non-current-dependent
- 0.4 W
- Supply voltage - max
- 240 V
- Supply voltage - min
- 230 V
- Width in number of modular spacings
- 2
- Number of contacts
- 1
- Output signal
- Other
- External programming via
- Manufacturer specific
- Shortest switching time channel 1
- 1 s
- Supply voltage
- 230–240 V
- Frequency supply voltage
- 50–60 Hz
- Text guidance in display
- Yes
- External programming
- Yes
- With memory card
- No
- 60 min program
- No
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- No
- Holiday program
- Yes
- Impulse program
- No
- Cycle program
- No
- Astro program
- Yes
- Random program
- No
- Hour meter
- No
- Mains synchronous
- No
- Quartz controlled
- Yes
- Radio-controlled
- No
- GPS (global positioning system)
- No
- Automatic switching summer/winter time
- Yes
- Suitable for manual operation
- Yes
- External push button input
- No
- Switching preselection
- Yes
- Max. switching power LED
- 600 W
- Potential free switch contact
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 9008790990465
- SAP 1200426812
- Code 82456768
Product Documentation
