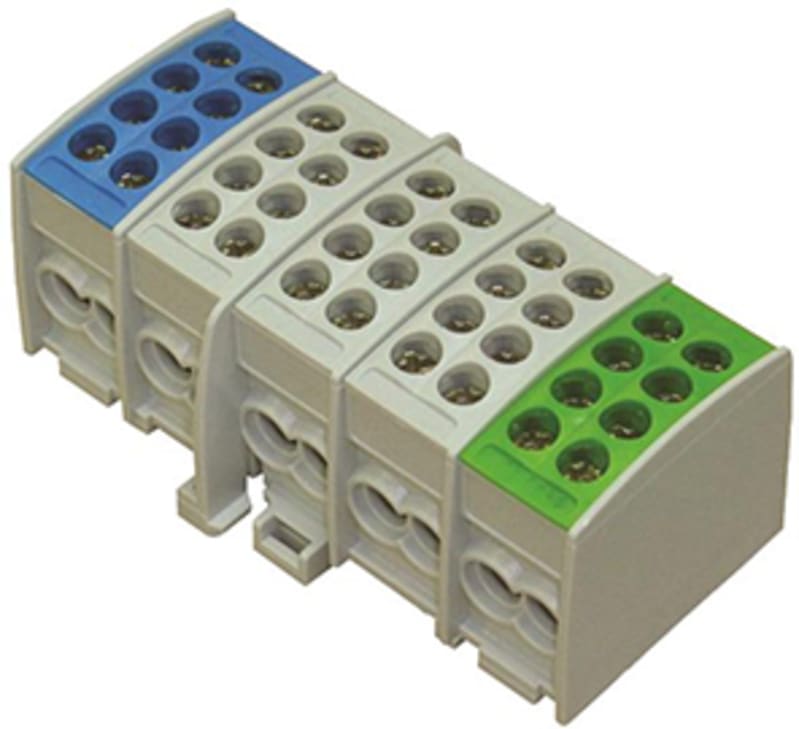

Terminal Connection, 4X25 MM²
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal Connection, 4X25 MM² (part number ZSD-HKL/4X25/FS) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Eaton catalogue number: 217218; Depth: 100 mm; Height: 60 mm; Width: 70 mm; Weight: 0.25 kg.
Technical Specifications
- Manufacturer part number (MPN)
- ZSD-HKL/4X25/FS
- EAN / GTIN
- 9010238056657
- Sales unit
- pcs
- Eaton catalogue number
- 217218
- Depth
- 100 mm
- Height
- 60 mm
- Width
- 70 mm
- Weight
- 0.25 kg
- Compliances
- RoHS conform
- Features
- Contact safe
- Nominal current
- 63 A
- Number of connections (Less Than 6 mm squared)
- 0
- Number of connections (Less Than AWG 6)
- 0
- Number of connections (Greater Than 25 mm squared)
- 0
- Number of connections (Greater Than 250 kcmil)
- 0
- Number of connections (10 mm squared)
- 0
- Number of connections (16 mm squared)
- 8
- Number of connections (25 mm squared)
- 8
- Number of connections (250 kcmil)
- 0
- Number of connections (AWG 2)
- 0
- Number of connections (AWG 4)
- 0
- Number of connections (AWG 4/0)
- 0
- Number of connections (AWG 6)
- 0
- Number of connections (total)
- 16
- Number of poles
- Four-pole
- Connection type
- Screwing
- Mounting method
- DIN rail
- Suitable for
- Fine strand conductors; Solid conductors; Stranded conductors
- Conductor cross section, input - min
- 1.5 mm²
- Conductor cross section, input - max
- 25 mm²
- Number of inputs
- 8
- Number of outputs
- 8
- Conductor cross section, output - max
- 25 mm²
- Conductor cross section, output - min
- 1.5 mm²
- Contact safe
- No
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- Yes
- Suitable for extra fine-strand conductors
- No
- Conductor cross section, input
- 1.5–25 mm²
- Conductor cross section, output
- 1.5–25 mm²
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 9010238056657
- SAP 1200562336
- Code 82901416
