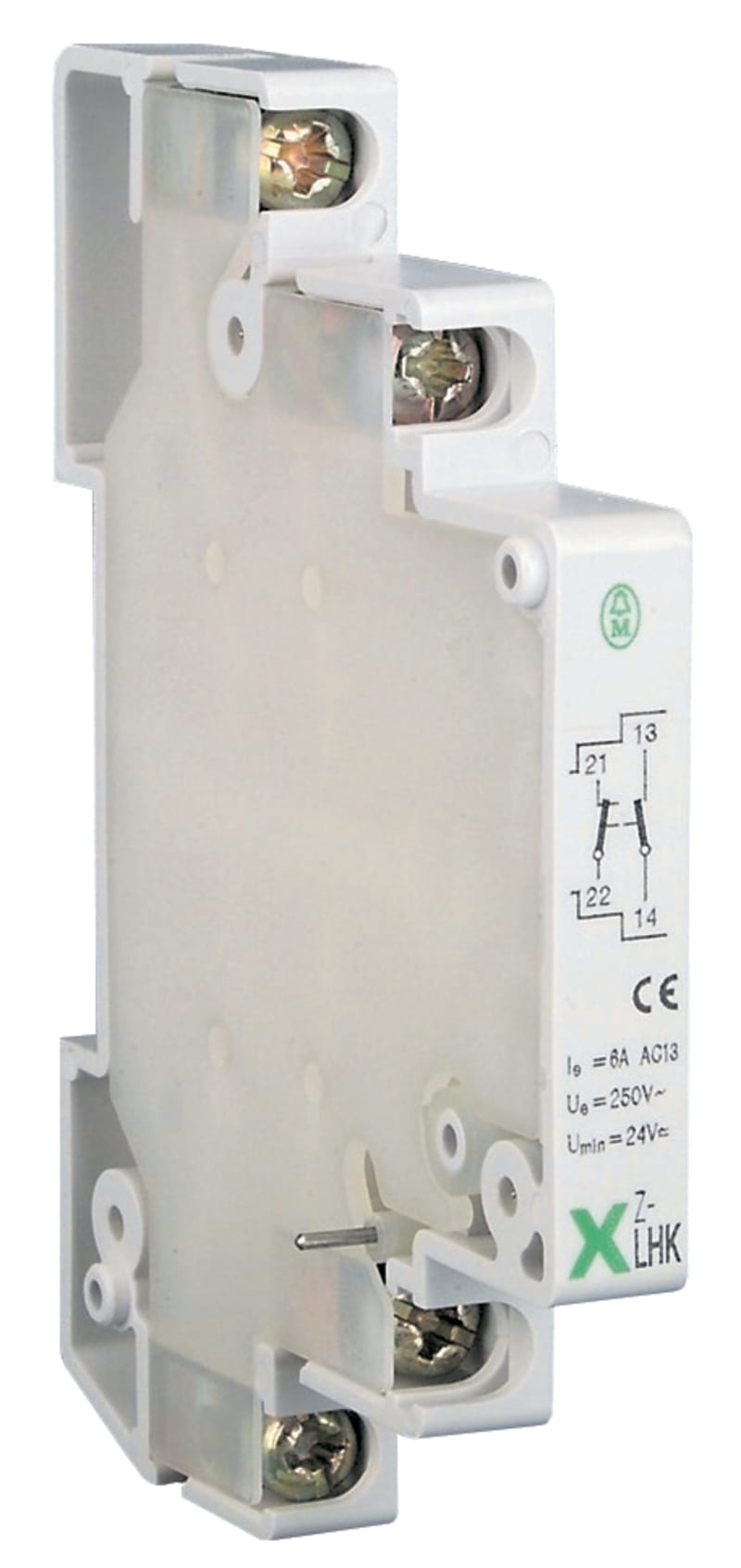

Auxiliary contact (Z-LHK)

Eaton Z-LHK Auxiliary Contact.

Manufacturer part number (MPN)

Z-LHK

EAN / GTIN

4015082484408

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248440

Depth

80 mm

Height

75 mm

Width

8.8 mm

Weight

0.041 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Used with

Auxiliary contacts; Accessory for miniature circuit breaker; Accessory

Accessory/spare part type

Auxiliary contacts

Mounting method

For fitting on right to: AZ, PLHT

Additional equipment required

Auxiliary switch

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Voltage type

AC

Functions

Auxiliary switch

Device fitting

Universal

Type

Accessory Accessory for miniature circuit breaker

Application

Switchgear for industrial and advanced commercial applications

Rated operational voltage (Ue) - max

230 V

Rated switch current

6 A

Suitable for current of main contact unit - max

8 A

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Auxiliary switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

8 A

Country of origin

Serbia

HS Code

8536.30
