Dehn
Surge protection device Type 1+2+3 for TNC FM (941305)
Part number941305EAN / GTIN4013364275317HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

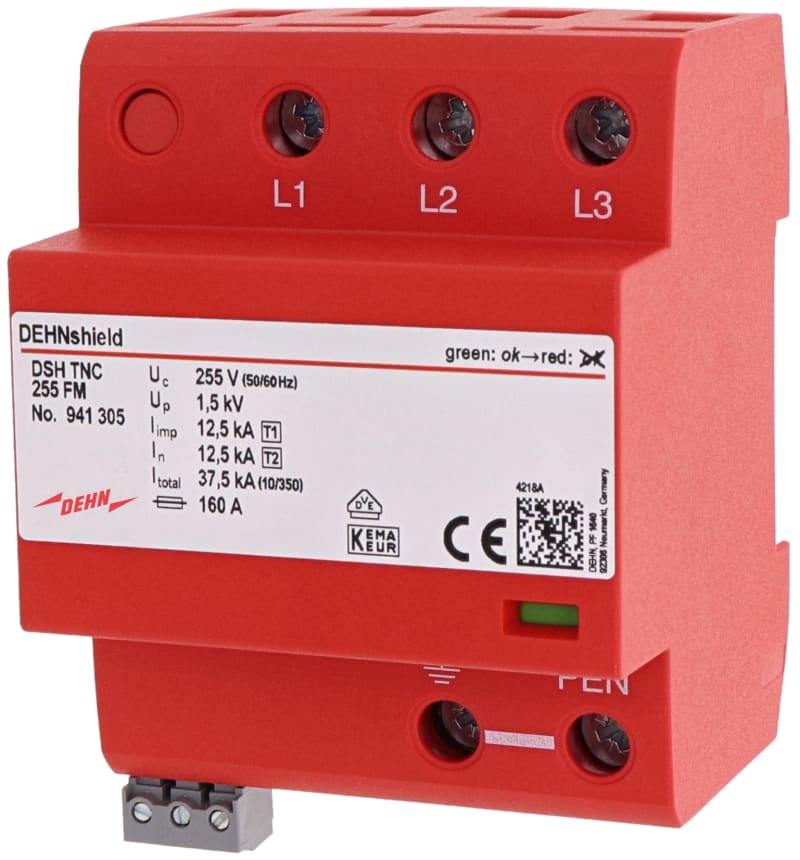

Dehn 941305 Surge protection device Type 1+2+3 for TNC FM.
Technical Specifications
- Manufacturer part number (MPN)
- 941305
- EAN / GTIN
- 4013364275317
- Sales unit
- pcs
- Mounting method
- DIN rail (top hat rail) 35 mm
- Lightning impulse current (10/350 µs)
- 37.5 kA
- Construction size
- 4 modular spacing
- Voltage protection level
- 1.5 kV
- Remote signalling
- Yes
- Follow current extinguishing capability
- 25 kA
- Max. continuous voltage AC
- 255 V
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Voltage protection level L-N
- 1.5 kV
- Signalling at the device
- Optical
- Degree of protection (IP)
- IP20
- Voltage protection level N-PE
- 1.5 kV
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Specific energy (W/R)
- 39.06 kJ/Ohm
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- Voltage protection level L-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 160 A
- Voltage switching spark gap technology
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4013364275317
- SAP 1200718881
- Code 83837340
Product Documentation
Document preview: Surge protection device Type 1+2+3 for TNC FM (941305) — Specification sheet
