Dehn

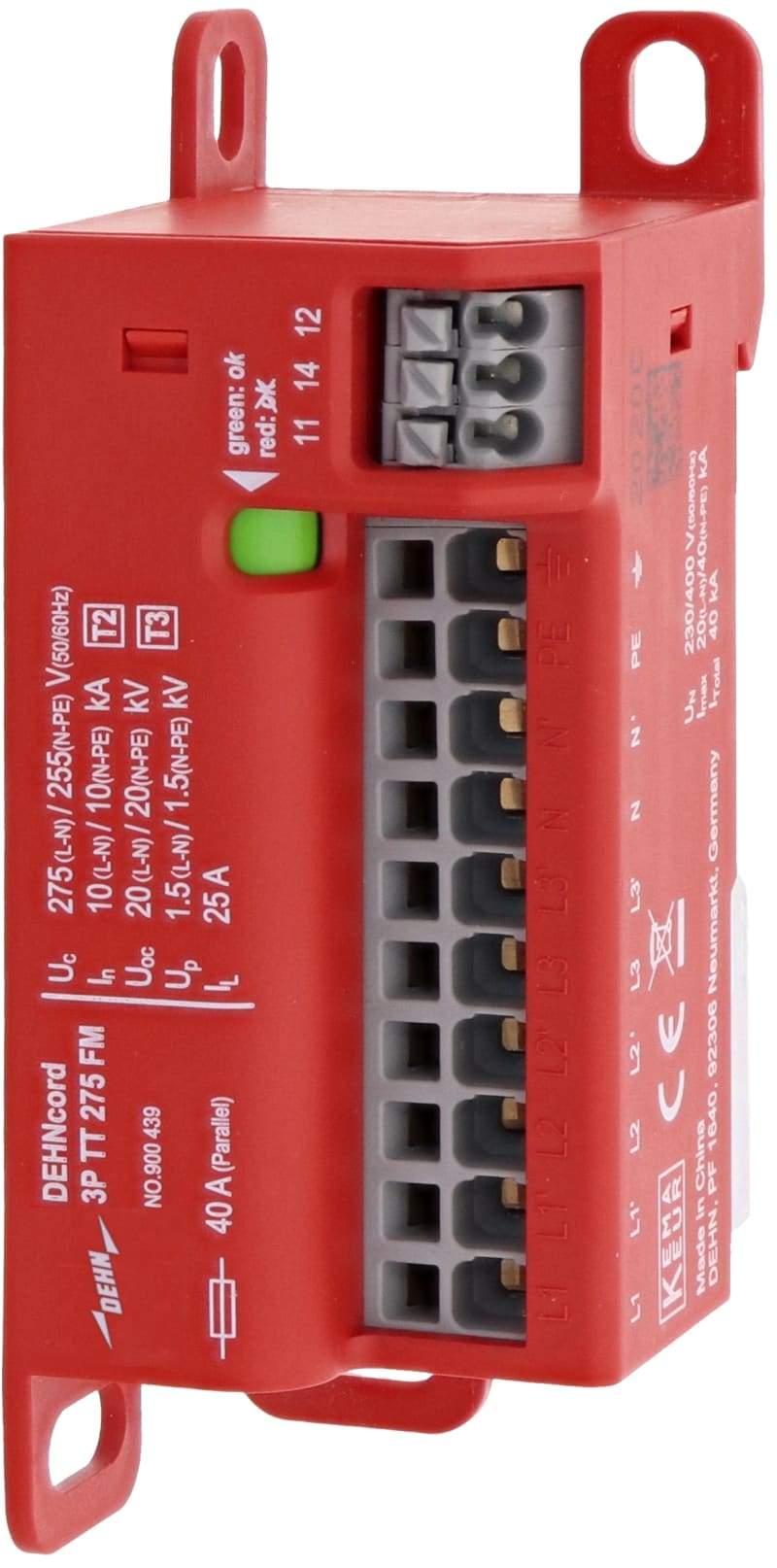

Surge protection device Type 2 TT/TN (900439)
Part number900439EAN / GTIN4013364436053HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Dehn 900439 Surge protection device Type 2 TT/TN.
Technical Specifications
- Manufacturer part number (MPN)
- 900439
- EAN / GTIN
- 4013364436053
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 10 kA
- Max. discharge surge current (8/20)
- 20 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Max. continuous voltage DC
- 350 V
- Voltage protection level
- 1.5 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 25 A
- Short-circuit breaking capacity (Isccr)
- 6 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 6 mm²
- Max. conductor cross section flexible (fine-strand)
- 6 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4013364436053
- SAP 1200595153
- Code 82968326
Product Documentation
Document preview: Surge protection device Type 2 TT/TN (900439) — Specification sheet
