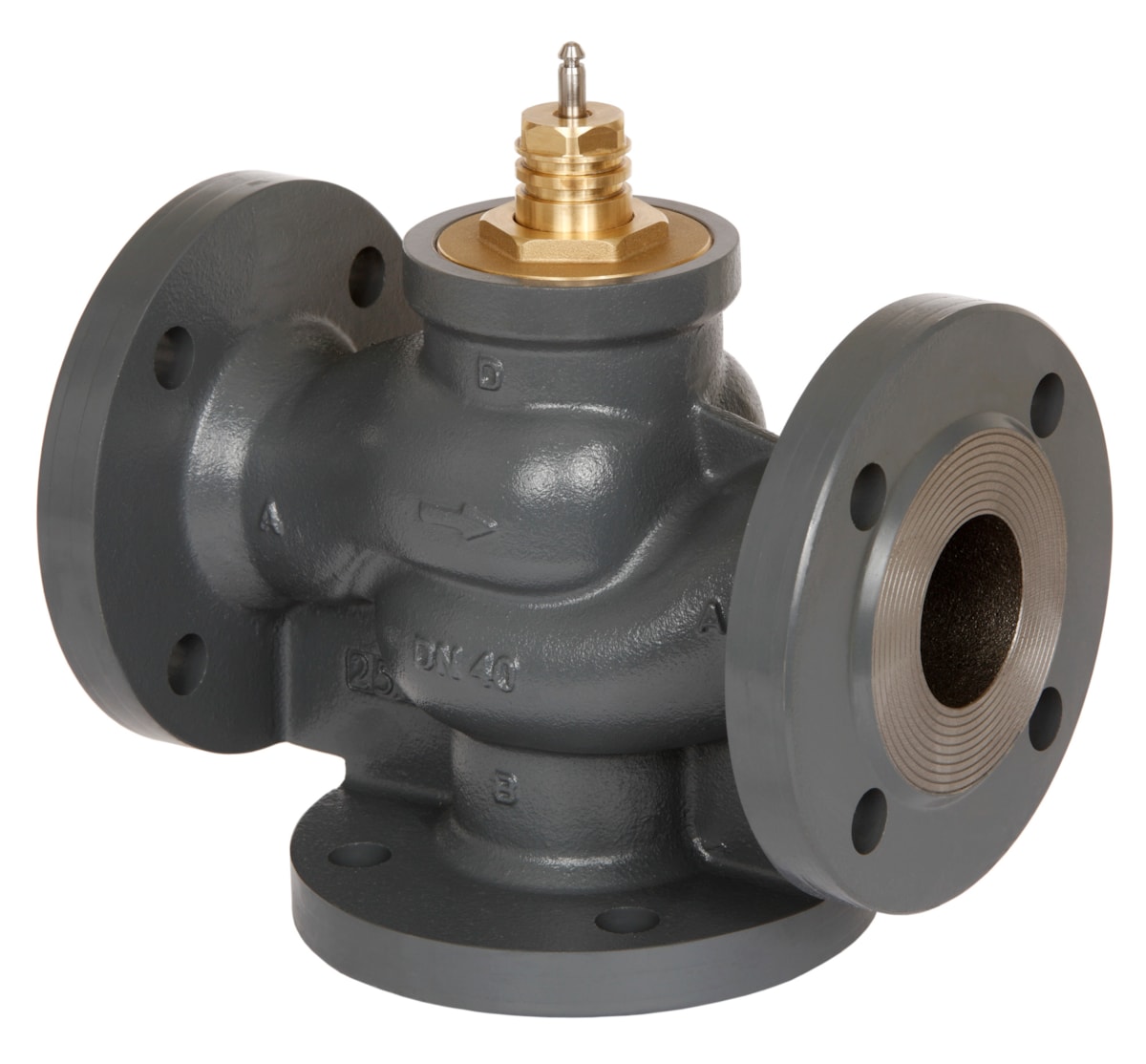

Danfoss VL 3 PN 6 Three-Way Flanged Mixing Valve Body DN 25, Kvs 10 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VL 3 three-way flanged mixing-valve body that blends (or, mounted for diverting service, splits) flow between two ports and a common port, OEM order code 065Z0357. VL3 PN6 DN25/10 flange. Nominal size DN 25, Kvs 10 m³/h, nominal pressure PN 6 (6 bar), valve stroke 10 mm. Equal percentage flow characteristic, control ratio 100:1, seat leakage bubble tight design. Body of Grey cast iron EN-GJL-250 (GG-25), cone Brass, stem Stainless steel. For heating and cooling circuits on district heating/cooling circulation water, media temperature -10 °C to 120 °C. The valve body is driven by a matched Danfoss electric actuator (AMV/AME series) sized to the 10 mm valve stroke. Net weight 4.086 Kilogram. Data quoted verbatim from store.danfoss.com (code 065Z0357).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065Z0357
- Code number
- 065Z0357
- Type
- VL 3
- Product group
- Other valves
- Valve function
- Three-way (3-port) flanged mixing control-valve body
- Function
- Mixing valve
- Number of ports
- 3
- Application
- Heating and cooling
- Permissible media
- District heating/cooling circulation water
- Alternative medium
- Glycolic water up to 50%
- Nominal size
- DN 25
- Kvs value
- 10 m³/h
- Nominal pressure
- PN 6 (6 bar)
- Max. closing differential pressure (mixing)
- 4 bar
- Max. closing differential pressure (diverting)
- 1 bar
- Stroke
- 10 mm
- Connection
- Flange
- Flow characteristic
- Equal percentage
- Control ratio
- 100:1
- Max. leakage through port
- bubble tight design
- Max. leakage through port (B-AB)
- 1.0 % Kvs
- Cavitation factor
- 0.4
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Brass
- Valve stem material
- Stainless steel
- Stuffing-box sealing material
- EPDM
- Media pH range
- 7 to 10
- Media temperature
- -10 °C to 120 °C
- Net weight
- 4.086 Kilogram
- Gross weight
- 4.086 Kilogram
- EAN
- 5710104009179
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Material
- Grey cast iron EN-GJL-250 (GG-25); cone Brass; stem Stainless steel
- Pressure Rating
- PN 6 (6 bar)
- Temperature Range
- -10 °C to 120 °C
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Three-way mixing valve body — requires a matched Danfoss electric actuator (AMV/AME series) sized to the 10 mm valve stroke. Confirm stroke (10 mm), Kvs (10 m³/h), nominal size (DN 25) and pressure class (PN 6) against the circuit design before ordering.
