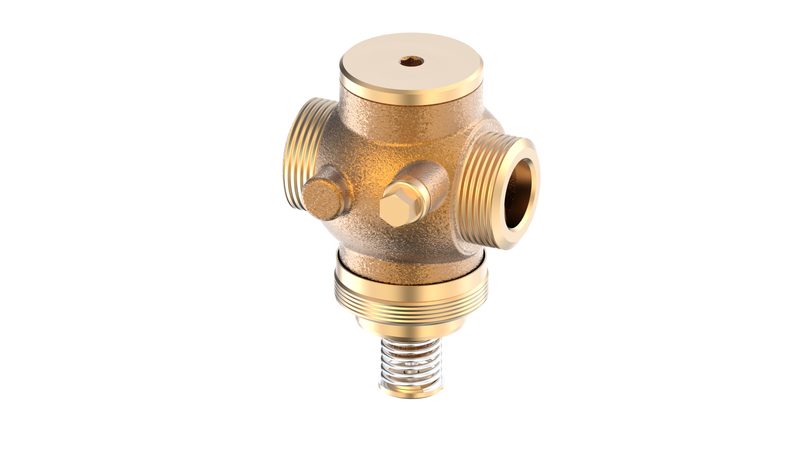

Danfoss VGU Control Valve Body DN 20 PN 25 Kvs 6.3 m³/h (2-Way threaded)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VGU two-way threaded seat (globe) control valve body, OEM order code 065B0792. Nominal size DN 20, pressure class PN 25, flow coefficient Kvs 6.3 m³/h. The VGU is the valve-body element of a Danfoss cooling control-valve assembly: it pairs with a matched electric AMV / AME (or self-acting) actuator to form a temperature, pressure or flow controller. Red bronze, mat. 2.1096.1 (RG5) body with DZR brass CuZn36Pb2AS (CW 602N) cone and stainless-steel, mat. 1.4571 seat, approx. linear flow characteristic, 5 mm stroke, spindle normally closed, piston pressure relief. Rated for district heating/cooling circulation water at 2 °C to 150 °C, maximum differential pressure 20 bar. Connection G 1 A (ISO 228/1). OEM P/N 065B0792. Data quoted verbatim from store.danfoss.com (code 065B0792). 2.1096.1 (RG5); cone DZR brass CuZn36Pb2AS (CW 602N); seat Stainless steel, mat. 1.4571; Standard size: DN 20; Thread: ISO 228/1; Pressure rating: PN 25 (25 bar); max differential pressure 20 bar; Temperature range: 2 °C to 150 °C; Approval: CE; Approvals: CE; HS code: 8481.80. Deployed in process, utility and marine piping loops for on-off shutoff, control, safety relief or diversion service. No. No.
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B0792
- Type
- VGU
- Product group
- Motorized control valves
- Application
- Cooling
- Function
- Control valve
- Valve size
- DN 20
- Pressure class
- PN 25
- Nominal pressure
- 25 bar
- PN alternative (VSP)
- 16
- Kvs value
- 6.3 m³/h
- Connection type
- External Thread
- Connection size
- G 1 A
- Connection standard
- ISO 228/1
- Number of ports
- 2
- Flow characteristic
- Approx. linear
- Cavitation factor
- 0.6
- Spindle position
- Normally closed
- Pressure relief system
- Piston
- Stroke
- 5 mm
- Diameter
- 20 mm
- Differential pressure (max)
- 20 bar
- Media temperature
- 2 °C to 150 °C
- Permissible media
- District heating/cooling circulation water
- Medium alternative
- Glycolic water up to 30%
- Media pH range
- 7 to 10
- Leakage through port (max)
- 0.05 % Kvs
- Mounting version
- Free
- Valve body material
- Red bronze, mat. No. 2.1096.1 (RG5)
- Valve cone material
- DZR brass CuZn36Pb2AS (CW 602N)
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Sealing material
- EPDM
- Net weight
- 0.856 Kilogram
- Gross weight
- 0.856 Kilogram
- Volume
- 0.825 Liter
- EAN
- 5702421543740
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 20
- Material
- Red bronze, mat. No. 2.1096.1 (RG5); cone DZR brass CuZn36Pb2AS (CW 602N); seat Stainless steel, mat. No. 1.4571
- Thread Standard
- ISO 228/1
- Pressure Rating
- PN 25 (25 bar); max differential pressure 20 bar
- Temperature Range
- 2 °C to 150 °C
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Valve body for a Danfoss cooling control-valve assembly. Combine the VGU DN 20 body with a matched electric AMV / AME (or self-acting) actuator sized for the required duty. Select by nominal size (DN 20), pressure class (PN 25) and flow coefficient (Kvs 6.3 m³/h); verify actuator stroke 5 mm and media compatibility before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss VGU Control Valve Body DN 25 PN 25 Kvs 8 m³/h (2-Way threaded)
065B0793
Danfoss
Danfoss VGU Control Valve Body DN 32 PN 25 Kvs 12.5 m³/h (2-Way threaded)
065B0794
Danfoss
Danfoss VGU Control Valve Body DN 40 PN 25 Kvs 16 m³/h (2-Way threaded)
065B0795
Danfoss
Danfoss VGU Control Valve Body DN 50 PN 25 Kvs 20 m³/h (2-Way threaded)
065B0796
Danfoss
Danfoss VGUF Control Valve Body DN 32 PN 25 Kvs 12.5 m³/h (2-Way flanged)
065B0797
Danfoss
Danfoss VGUF Control Valve Body DN 40 PN 25 Kvs 20 m³/h (2-Way flanged)
065B0798
Danfoss

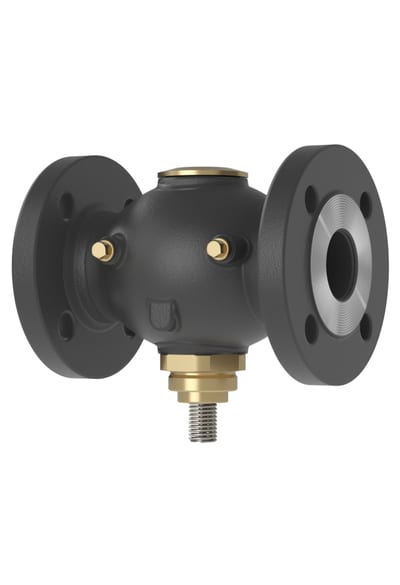

Danfoss VGUF Control Valve Body DN 50 PN 25 Kvs 25 m³/h (2-Way flanged)
065B0799
Danfoss

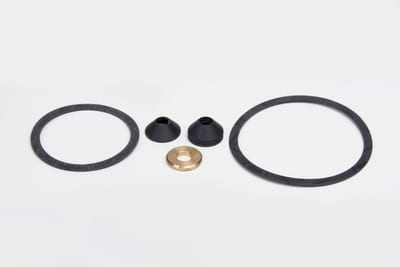

Danfoss Stuffing-Box Service Kit for VFS DN 15 - DN 50
