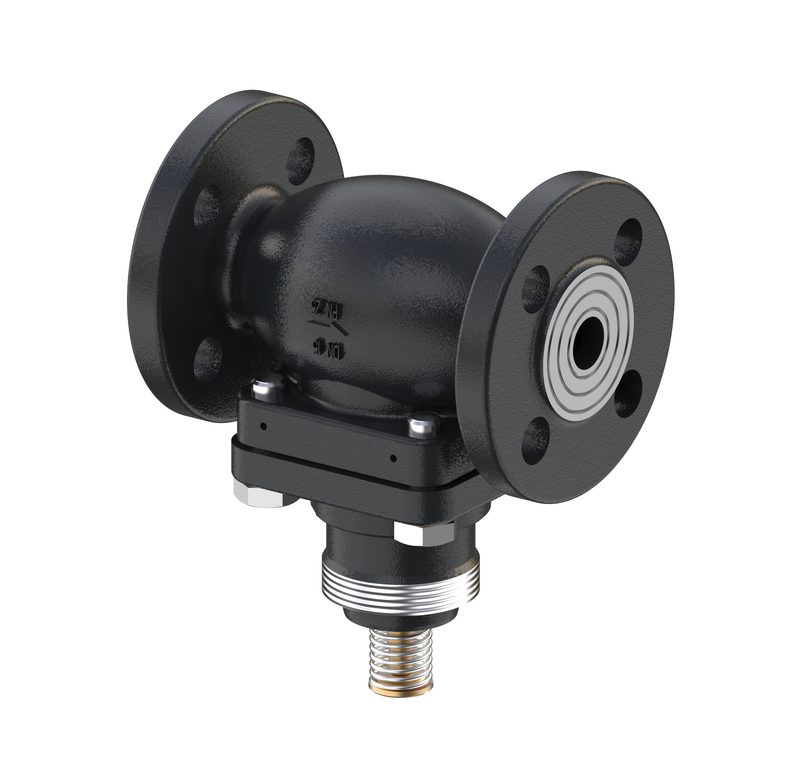

Danfoss VGF Control Valve Body DN 15 PN 25 Kvs 4 m³/h (2-Way flanged)

Danfoss VGF two-way flanged seat (globe) control valve body, OEM order code 065B0780. Nominal size DN 15, pressure class PN 25, flow coefficient Kvs 4 m³/h. The VGF is the valve-body element of a Danfoss district heating control-valve assembly: it pairs with a matched electric AMV / AME (or self-acting) actuator to form a temperature, pressure or flow controller. Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) body with DZR brass CuZn36Pb2AS (CW 602N) cone and stainless-steel, mat. 1.4571 seat, approx. linear flow characteristic, 5 mm stroke, spindle normally open, piston pressure relief. Rated for district heating/cooling circulation water at 2 °C to 150 °C, maximum differential pressure 20 bar. Connection 15 (EN 1092-2). OEM P/N 065B0780. Data quoted verbatim from store.danfoss.com (code 065B0780). 1.4571; Standard size: DN 15; Pressure rating: PN 25 (25 bar); max differential pressure 20 bar; Temperature range: 2 °C to 150 °C; Approval: CE; Approvals: CE; HS code: 8481.80. Deployed in process, utility and marine piping loops for on-off shutoff, control, safety relief or diversion service.

Brand

Danfoss

Part number

065B0780

Type

VGF

Product group

Motorized control valves

Application

District Heating

Function

Control valve

Valve size

DN 15

Pressure class

PN 25

Nominal pressure

25 bar

PN alternative (VSP)

16

Kvs value

4 m³/h

Connection type

Flange

Connection size

15

Connection standard

EN 1092-2

Number of ports

2

Flow characteristic

Approx. linear

Cavitation factor

0.6

Spindle position

Normally open

Pressure relief system

Piston

Stroke

5 mm

Diameter

15 mm

Differential pressure (max)

20 bar

Media temperature

2 °C to 150 °C

Permissible media

District heating/cooling circulation water

Medium alternative

Glycolic water up to 30%

Media pH range

7 to 10

Leakage through port (max)

0.05 % Kvs

Mounting version

Free

Valve body material

Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)

Valve cone material

DZR brass CuZn36Pb2AS (CW 602N)

Valve seat material

Stainless steel, mat. No. 1.4571

Net weight

3.926 Kilogram

Gross weight

3.967 Kilogram

Volume

5.107 Liter

EAN

5702421543627

HS code

8481.80 (taps, cocks, valves for pipes)

Size / Series

DN 15

Material

Ductile cast iron EN-GJS-400-18-LT (GGG 40.3); cone DZR brass CuZn36Pb2AS (CW 602N); seat Stainless steel, mat. No. 1.4571

Pressure Rating

PN 25 (25 bar); max differential pressure 20 bar

Temperature Range

2 °C to 150 °C

Classification / Approval

CE

HS Code

8481.80
