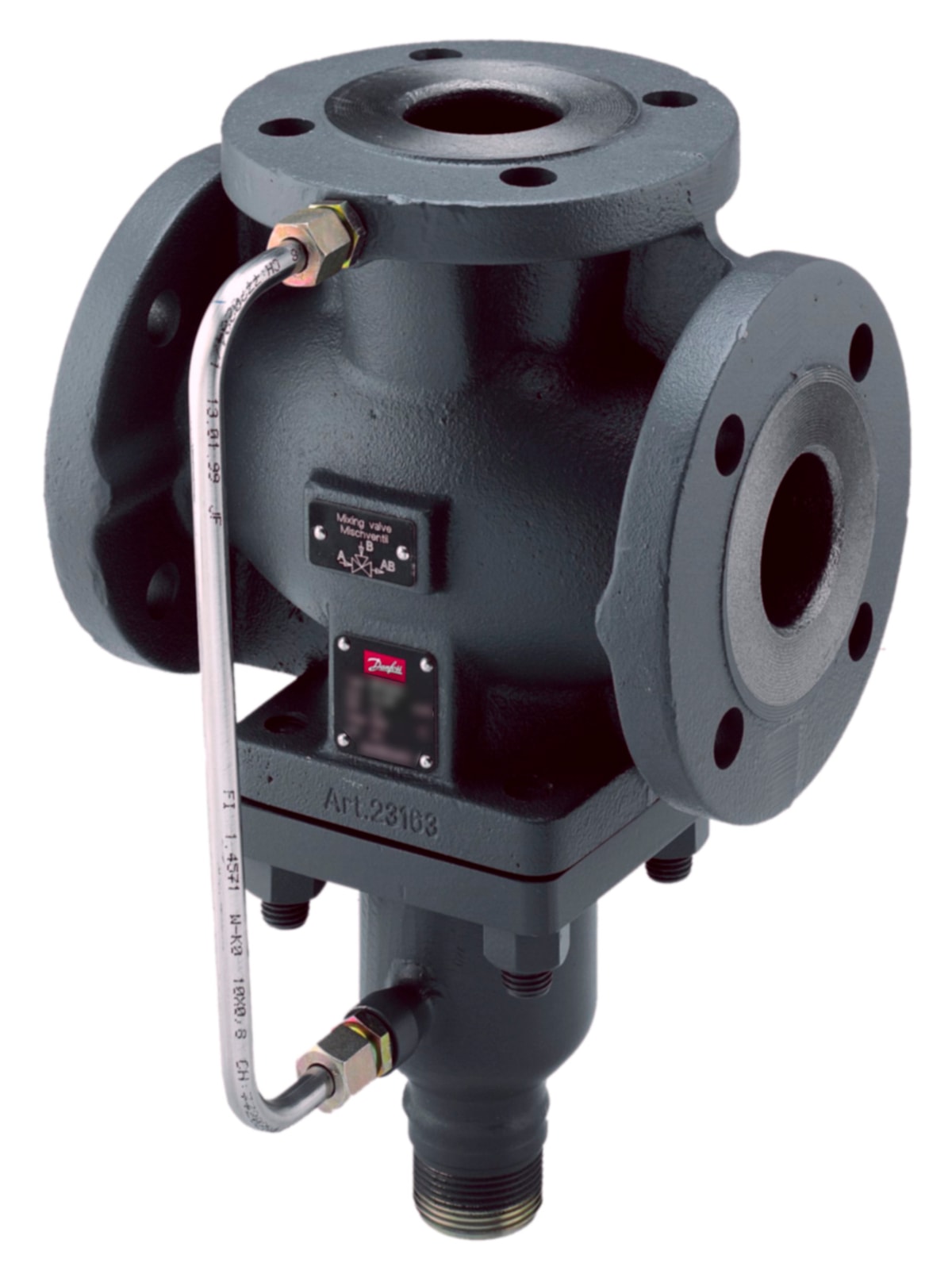

Danfoss VFG 33 Three-Way Mixing Globe Valve Body DN65 PN 25 Kvs 50 m³/h (3-Way flanged)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VFG 33 3-way flanged globe (seat) valve body, OEM order code 065B2610. Nominal size DN65, pressure class PN 25, flow coefficient Kvs 50 m³/h. The VFG 33 is a three-way mixing valve body (flow-dividing / flow-mixing service, function "Pressure relief" plus "Mixing valve", control ratio 1:50). It pairs with a matched self-acting (AFA / AFP / AFT / AVT) or electric (AMV / AME) actuator to form a temperature, pressure, differential-pressure or flow controller. Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) body with stainless-steel, mat. no. 1.4404 cone and stainless-steel, mat. no. 1.4021 seat, linear flow characteristic, 16 mm stroke, spindle a-ab: normally closed. Rated for district heating media at 2 °C to 200 °C, maximum differential pressure 12 bar. Data quoted verbatim from store.danfoss.com (code 065B2610).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B2610
- Type
- VFG 33
- Product group
- Motorized control valves
- Application
- District Heating
- Valve size
- DN 65
- Pressure class
- PN 25
- Nominal pressure
- 25 bar
- Kvs value
- 50 m³/h
- Connection type
- Flange
- Number of ports
- 3
- Function
- Pressure relief
- Function 2
- Mixing valve
- Control ratio
- 1:50
- Flow characteristic
- Linear
- Spindle position
- A-AB: Normally closed
- Stroke
- 16 mm
- Differential pressure (max)
- 12 bar
- Cavitation factor
- 0.5
- Media temperature
- 2 °C to 200 °C
- Permissible media
- District heating/cooling circulation water
- Medium alternative
- Glycolic water up to 30%
- Media pH range
- 7 to 10
- Leakage through port (max)
- 0.05 % Kvs
- Leakage bypass port (max)
- 0.05 %
- Valve body material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Stainless steel, mat. No. 1.4404
- Valve seat material
- Stainless steel, mat. No. 1.4021
- Net weight
- 40.5 Kilogram
- Gross weight
- 40.5 Kilogram
- EAN
- 5702421805275
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 65
- Material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3); cone Stainless steel, mat. No. 1.4404; seat Stainless steel, mat. No. 1.4021
- Pressure Rating
- PN 25 (25 bar); max differential pressure 12 bar
- Temperature Range
- 2 °C to 200 °C
- HS Code
- 8481.80
Compatibility & Fitment
Valve body for Danfoss three-way mixing control-valve assemblies. Combine the VFG 33 DN65 body with a matched self-acting (AFA / AFP / AFT / AVT) or electric (AMV / AME) actuator sized for the required duty. Select the body by nominal size (DN65), pressure class (PN 25) and flow coefficient (Kvs 50 m³/h); verify actuator stroke 16 mm and media compatibility before ordering.
