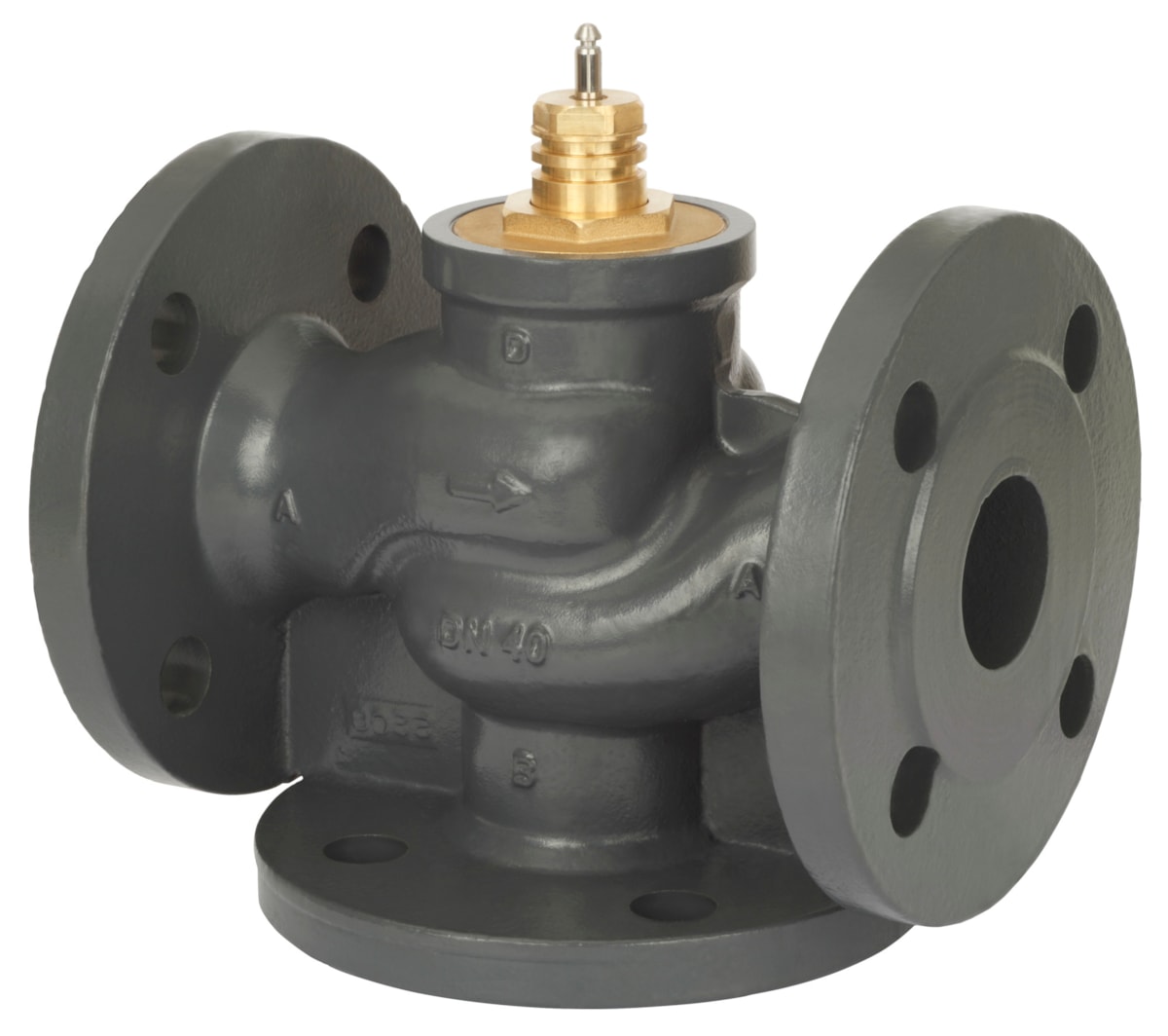

Danfoss VF 3 PN 16 3-Way Seated Flanged Mixing Valve DN 40, Kvs 25
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VF 3 three-way seated flanged control-valve body, OEM order code 065Z0259. VF 3 PN16 40/25 3-way seated flange Nominal size DN 40, Kvs 25 m³/h, nominal pressure PN 16 (16 bar), valve stroke 15 mm. Mixing valve (secondary pressure-relief function). Equal percentage flow characteristic, control ratio 100:1, seat leakage bubble tight design; max closing Δp 4 bar mixing / 1 bar diverting. Materials: body Grey cast iron EN-GJL-250 (GG-25), cone Brass, stem Stainless steel, stuffing-box seal EPDM. For heating and cooling circuits on district heating/cooling circulation water (alt. glycolic water up to 50%), media temperature -10 °C to 130 °C. Motorised by a matched Danfoss AMV/AME electric actuator sized to the valve stroke. Net weight 9.432 Kilogram. Data quoted verbatim from store.danfoss.com (code 065Z0259).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065Z0259
- Type
- VF 3
- Product group
- Other valves
- Valve function
- Three-way (3-port) seated flanged control-valve body
- Primary function
- Mixing valve
- Secondary function
- Pressure relief
- Mounting version
- Flow
- Application
- Heating and cooling
- Permissible media
- District heating/cooling circulation water
- Alternative medium
- Glycolic water up to 50%
- Nominal size
- DN 40
- Kvs value
- 25 m³/h
- Nominal pressure
- PN 16 (16 bar)
- Max. closing differential pressure (mixing)
- 4 bar
- Max. closing differential pressure (diverting)
- 1 bar
- Stroke
- 15 mm
- Connection
- Flange
- Flow characteristic
- Equal percentage
- Control ratio
- 100:1
- Max. leakage through port
- bubble tight design
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Brass
- Valve stem material
- Stainless steel
- Stuffing-box sealing material
- EPDM
- Media temperature
- -10 °C to 130 °C
- Net weight
- 9.432 Kilogram
- Gross weight
- 9.744 Kilogram
- EAN
- 5710104007519
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Material
- Grey cast iron EN-GJL-250 (GG-25); cone Brass; stem Stainless steel
- Pressure Rating
- PN 16 (16 bar)
- Temperature Range
- -10 °C to 130 °C
- HS Code
- 8481.80
Compatibility & Fitment
Three-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series) sized to the valve stroke (15 mm). Confirm stroke (15 mm), Kvs (25 m³/h), nominal size (DN 40) and pressure class (PN 16) against the circuit design before ordering.
