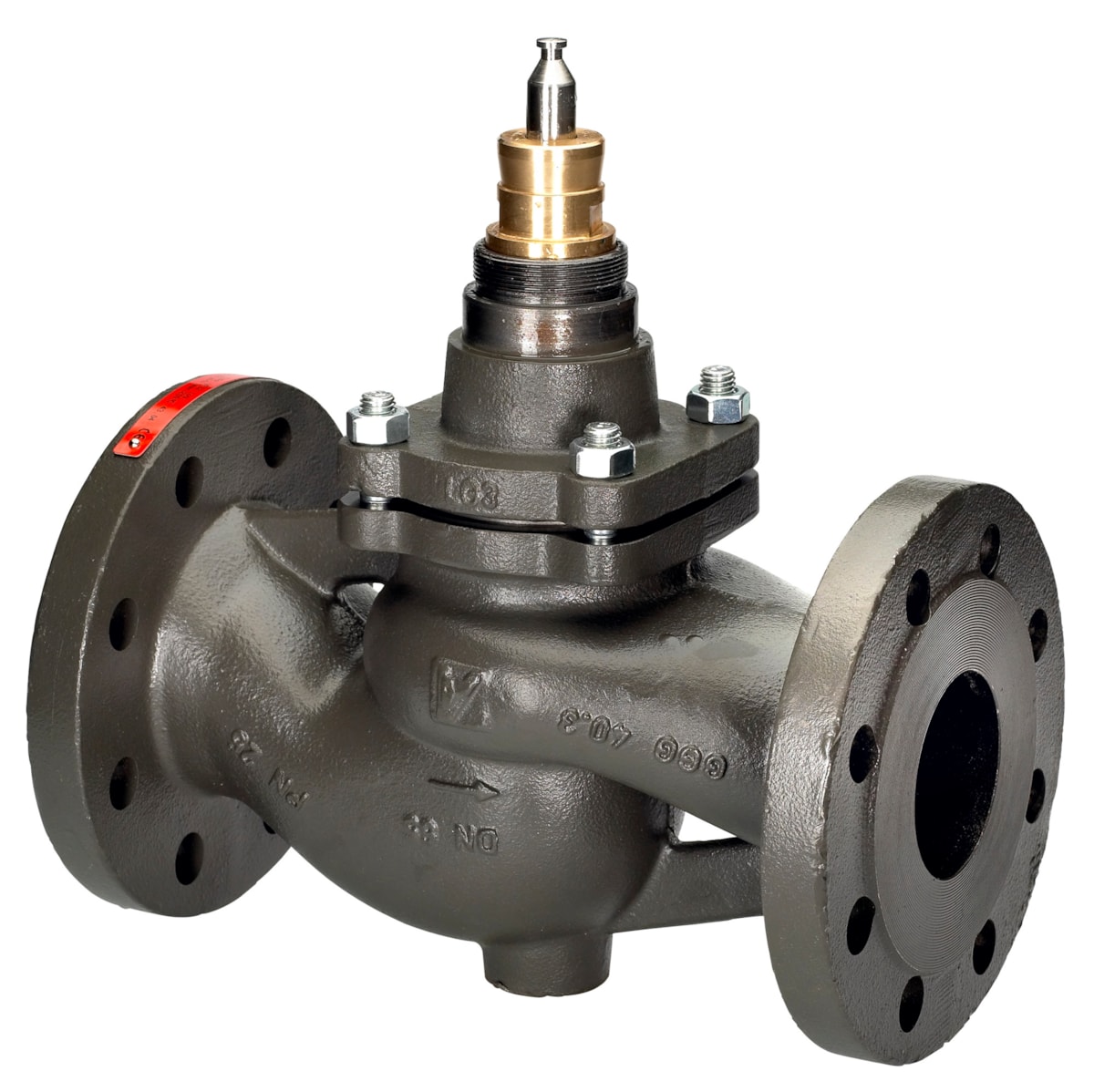

Danfoss VF 2 PN 16 2-Way Seated Flanged Control Valve DN 15, Kvs 4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VF 2 two-way seated flanged control-valve body, OEM order code 065Z0275. VF 2 PN16 15/4 2-way seated flange. Nominal size DN 15, Kvs 4 m³/h, nominal pressure PN 16 (16 bar), max. differential pressure 4 bar, valve stroke 10 mm. Equal percentage flow characteristic, control ratio 50:1, seat leakage bubble tight design. Body of Grey cast iron EN-GJL-250 (GG-25), cone Brass, stem Stainless steel, stuffing-box seal EPDM. For heating and cooling circuits on district heating/cooling circulation water, media temperature -10 °C to 130 °C. The valve body is motorised by a matched Danfoss AMV/AME (up to AME 855) electric actuator sized to the 10 mm stroke. Net weight 1.936 Kilogram. Data quoted verbatim from store.danfoss.com (code 065Z0275).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065Z0275
- Type
- VF 2
- Product group
- Other valves
- Valve function
- Two-way (2-port) seated flanged control-valve body
- Application
- Heating and cooling
- Permissible media
- District heating/cooling circulation water
- Nominal size
- DN 15
- Kvs value
- 4 m³/h
- Nominal pressure
- PN 16 (16 bar)
- Max. differential pressure
- 4 bar
- Stroke
- 10 mm
- Connection
- Flange
- Flow characteristic
- Equal percentage
- Control ratio
- 50:1
- Max. leakage through port
- bubble tight design
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Brass
- Valve stem material
- Stainless steel
- Stuffing-box sealing material
- EPDM
- Media temperature
- -10 °C to 130 °C
- Net weight
- 1.936 Kilogram
- Gross weight
- 2.189 Kilogram
- EAN
- 5710104007595
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Material
- Grey cast iron EN-GJL-250 (GG-25); cone Brass; stem Stainless steel
- Pressure Rating
- PN 16 (16 bar); max differential pressure 4 bar
- Temperature Range
- -10 °C to 130 °C
- HS Code
- 8481.80
Compatibility & Fitment
Two-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series, e.g. AME 55/85 or AME 685/855 for large sizes) sized to the 10 mm valve stroke. Confirm stroke (10 mm), Kvs (4 m³/h), nominal size (DN 15) and pressure class (PN 16) against the circuit design before ordering.
