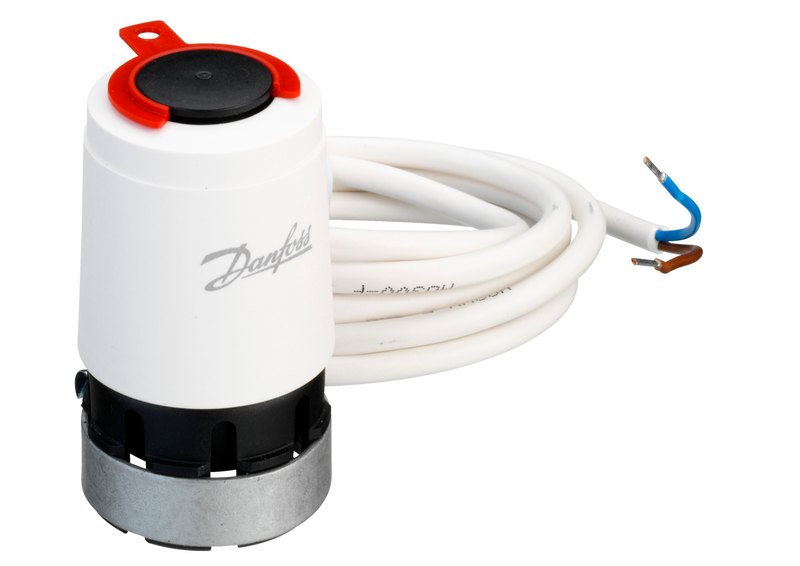

Danfoss TWA-V electrothermal actuator, 24 V AC, normally closed
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TWA-V electrothermal (thermal-wax) valve actuator, OEM order code 088H3120. The TWA-V converts a switching signal from a room thermostat or controller into valve movement on hydronic floor-heating manifolds and radiator/zone valves — no auxiliary air or hydraulics. Normally closed (NC) — the valve is closed when de-energised and opens when the actuator is powered. Supply voltage 24 V AC (50/60 Hz), power consumption 2 W. RAV / VMT connection; fits Danfoss RAV and VMT valve bodies. 0.95 m connecting cable. Enclosure rating IP41. Net weight 0.135 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 088H3120). OEM P/N 088H3120, EAN 5702420049588.
Technical Specifications
- Brand
- Danfoss
- Part number
- 088H3120
- Type
- TWA-V
- Product group
- Thermal actuators
- Description
- TWA-V NC 24V
- Actuator principle
- Electrothermal (thermal wax element)
- Valve function
- NC
- End-switch
- No
- Supply voltage
- 24 V AC
- Frequency range
- 50 Hz – 60 Hz
- Power consumption
- 2 W
- Connection
- RAV / VMT
- Connection type
- RAV
- Cable length
- 0.95 m
- IP protection class
- IP41
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.135 Kilogram
- Gross weight
- 0.144 Kilogram
- EAN
- 5702420049588
- HS code
- 8481.90 (parts of taps, cocks, valves and similar appliances)
Standards & Compliance
- Material
- Polyamide housing
- IP Rating
- IP41
- HS Code
- 8481.90
Compatibility & Fitment
Electrothermal actuator for Danfoss RAV and VMT valve bodies. Signalled by a 24 V or 230 V AC room-thermostat/controller output — match the supply voltage (24 V AC) and valve function (normally closed) to the control system. Confirm the valve connection (RAV / VMT) against the manifold or valve body before ordering.
