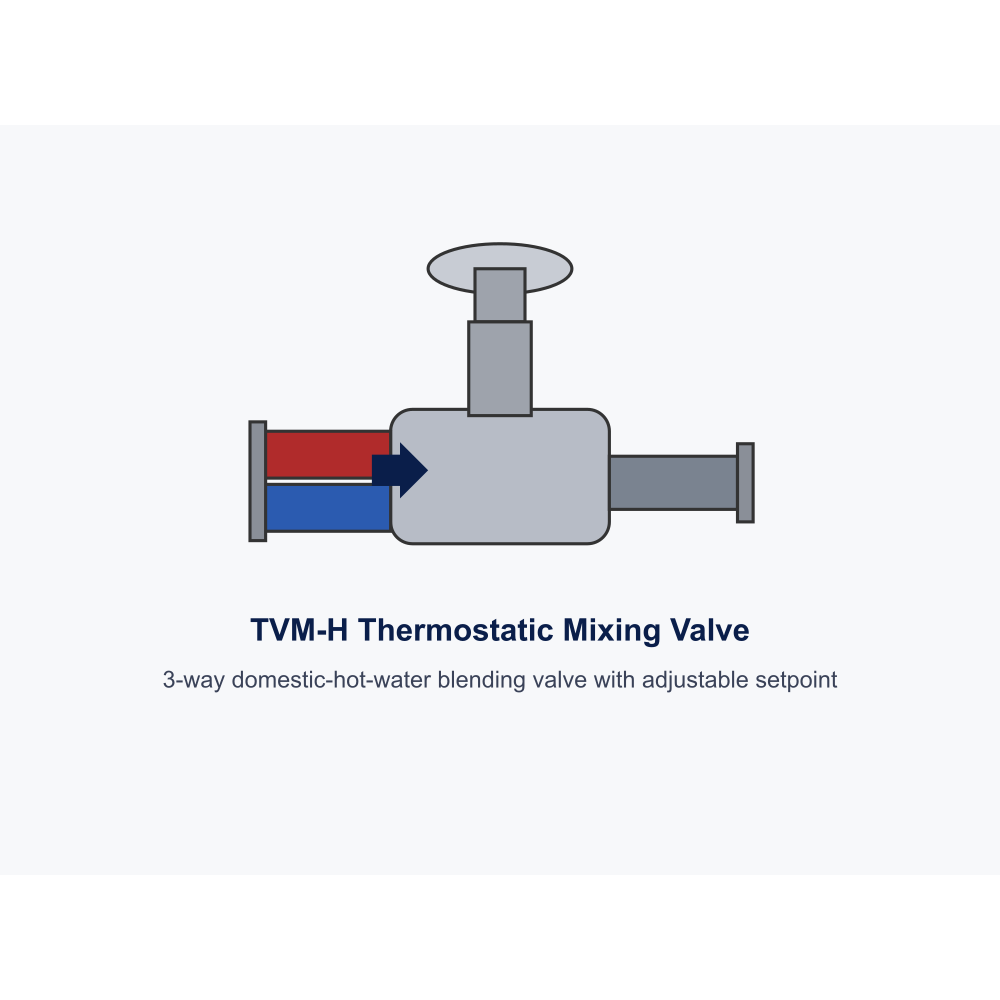

Danfoss TVM-H DN 25 thermostatic mixing valve

Danfoss TVM-H DN 25 — thermostatic mixing (blending) valve for domestic-hot-water service and thermal balancing. The valve blends hot supply with cooler return/cold water to hold the outlet at a set temperature (adjustable 30 °C to 70 °C, factory set 70 °C) as flow and inlet temperature vary, protecting against scald risk and stabilising circulation-loop temperature. DZR brass + antilimescale treatment body, external thread connection, PN 10, Kvs 3 m³/h without / 2.6 m³/h with the non-return insert, maximum differential pressure 5 bar, media temperature up to 100 °C. OEM P/N 003Z1127. EAN 5702421524756. Technical data quoted verbatim from store.danfoss.com (code 003Z1127).

Code number

003Z1127

Type

TVM-H

Product group

Hot water balancing

Description

TVM-H DN 25, thermostatic mixing valve

Valve size

DN 25

Valve body material

DZR brass + antilimescale treatment

Connection types

External Thread

Integrated non-return valve

No

Label product

Yes

Pressure class

PN 10

Kvs value with non-return valve [m3/h]

2.6 m³/h

Kvs value without non-return valve [m3/h]

3 m³/h

Factory setting [°C]

70 °C

Temperature setting range [°C] [Min]

30 °C

Temperature setting range [°C] [Max]

70 °C

Differential pressure range [bar] [Max]

5 bar

Media temperature [°C] [Max]

100 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

ff9b3c80-0d59-4769-9d4d-1d6a017826bf

SCIP dossier product name

"003Z1127"

Net weight

0.774 Kilogram

Gross weight

0.774 Kilogram

Volume

0.48 Liter

EAN

5702421524756

Material

Valve body DZR brass + antilimescale treatment

Pressure Rating

PN 10

Temperature Range

30 °C to 70 °C (setpoint)

Classification / Approval

CE

HS Code

8481.80
