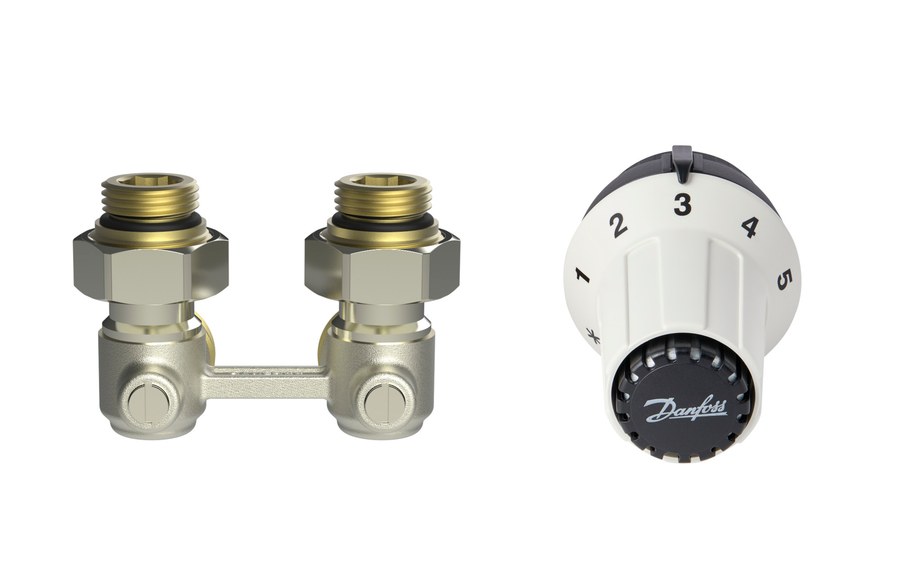

Danfoss RAS-C + RLV-KB radiator valve set (TRV set) — Angle ½", 2-Elements, RAS-C sensor

Danfoss RAS-C + RLV-KB thermostatic radiator valve set (TRV set), OEM order code 013G5278 — a matched 2-elements package for a single radiator: PANDA-RA + RLV-KB. Angle pattern, valve size ½". The RAS-C sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the RLV-KB return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5278). OEM P/N 013G5278, EAN 5702425098987. HS 8481.80.

Code number

013G5278

Brand

Danfoss

Type

RAS-C + RLV-KB

Product group

TRV set

Set contents

2-elements — PANDA-RA + RLV-KB

Design

Angle

Valve size

½"

Lockshield / return valve type

RLV-KB

Sensor-to-valve connection

RA

Sensor design

RAS-C (liquid-charged, self-acting)

Sensor temperature setting range

8 °C to 28 °C

Tailpiece

Without tailpiece

Colour

Black RAL 9005 / White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.545 kg

EAN

5702425098987

HS code

8481.80 (taps, cocks, valves)

CE mark

No

Connection type to valve

RA

Contents of set

2-elements

Description

PANDA-RA + RLV-KB

Packaging type

Box

RLV type

RLV-KB

Sensor media

Liquid

Sensor setting temperature [°C] [Max]

28 °C

Sensor setting temperature [°C] [Min]

8 °C

Sensor type

Built-in sensor

Tailpiece type

Without tailpiece

UL mark

No

UNSPSC CODE

40101801

Valve type

no valve

Material

Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor

Temperature Range

sensor setting 8 °C to 28 °C

HS Code

8481.80
