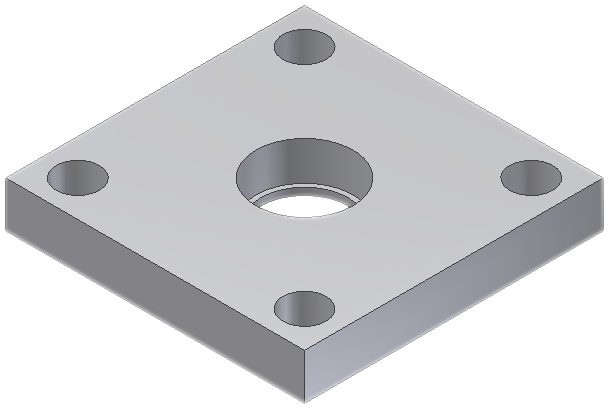

Danfoss threaded flange set, DN20 (3/4 in), NPT, ANSI/ASME B1.20.1, steel, square tongue, 2-Flange set
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss flange set, code 027G1007: a pair of steel threaded flanges (2 flanges per set) for connecting Danfoss industrial-refrigeration valves and line components to NPT-threaded pipework. Nominal size DN20 (3/4 in). Threaded connection to ANSI/ASME B1.20.1 (NPT); square flange form, tongue face, flange version 4.0. Steel construction for ammonia (R717) and fluorinated-refrigerant service. Supplied as a set of two flanges. Technical data quoted verbatim from store.danfoss.com (code 027G1007).
Technical Specifications
- Type
- Threaded flange set (2 flanges)
- Code number
- 027G1007
- Nominal size
- DN20 (3/4 in)
- Connection type
- NPT
- Connection standard
- ANSI/ASME B1.20.1
- Flange form
- Square, tongue face
- Flange design
- Tongue
- Flange version
- 4.0
- Material
- Steel
- Parts included
- 2 flanges
- Product group
- Flanges
- EU RoHS compliance
- Yes
- China RoHS compliance
- Yes
- REACH Candidate List substances
- No
- Net weight
- 1.741 kg (gross 1.741 kg)
- Packing
- 10 pc per pack
- EAN
- 5702428197106
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Material Spec.
- Steel
- Refrigerants
- R717
- Used for product
- NRVA 25 - 32
Standards & Compliance
- Standard
- ANSI/ASME B1.20.1
- Size / Series
- DN20 (3/4 in)
- Material
- Steel
- Thread Standard
- NPT, ANSI/ASME B1.20.1
- HS Code
- 7307.91
Compatibility & Fitment
NPT threaded flange connection set for Danfoss industrial-refrigeration valves and line components with matching 3/4 in NPT ports. Verify the valve size, connection type (NPT to ANSI/ASME B1.20.1) and flange form/version (Square, v4.0) before ordering; supplied as a set of two flanges.
Product Documentation
More from Danfoss
Danfoss
Danfoss GBC 28S Shut-off Ball Valve 1 1/8 in Solder ODF/ODM
009L7001
Danfoss
Danfoss GBC 6S Shut-off Ball Valve 1/4 in Solder ODF
009L7020
Danfoss
Danfoss GBC 10S Shut-off Ball Valve 3/8 in Solder ODF 009L7021
Danfoss

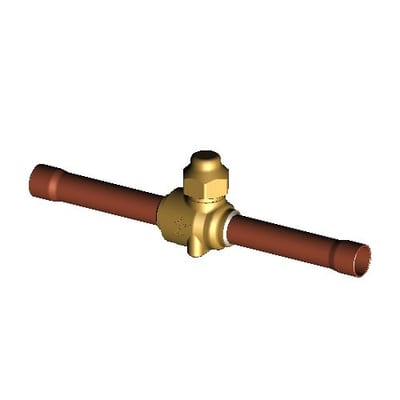

Danfoss GBC 12S Shut-off Ball Valve 1/2 in Solder ODF 009L7022
Danfoss

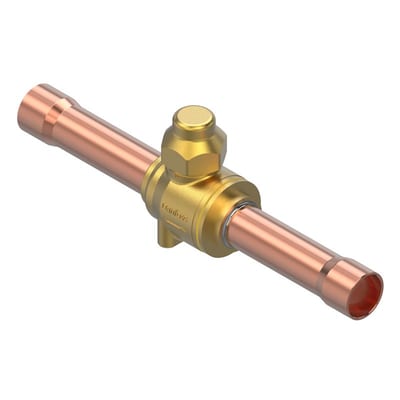

Danfoss GBC 16S Shut-off Ball Valve 5/8 in Solder ODF
009L7023
Danfoss

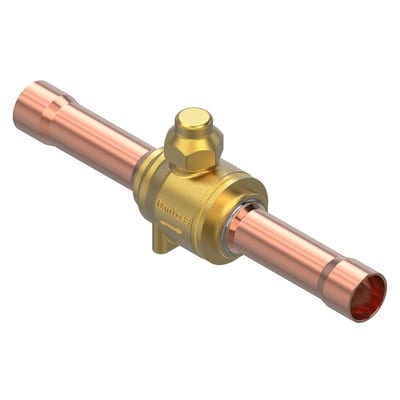

Danfoss GBC 18S Shut-off Ball Valve 3/4 in Solder ODF 009L7024
Danfoss

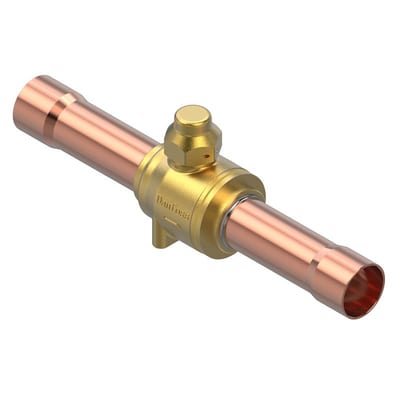

Danfoss GBC 22S Shut-off Ball Valve 7/8 in Solder ODF
009L7025
Danfoss

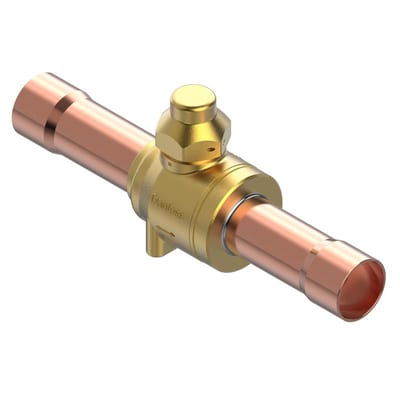

Danfoss GBC 28S Shut-off Ball Valve 1 1/8 in Solder ODF
