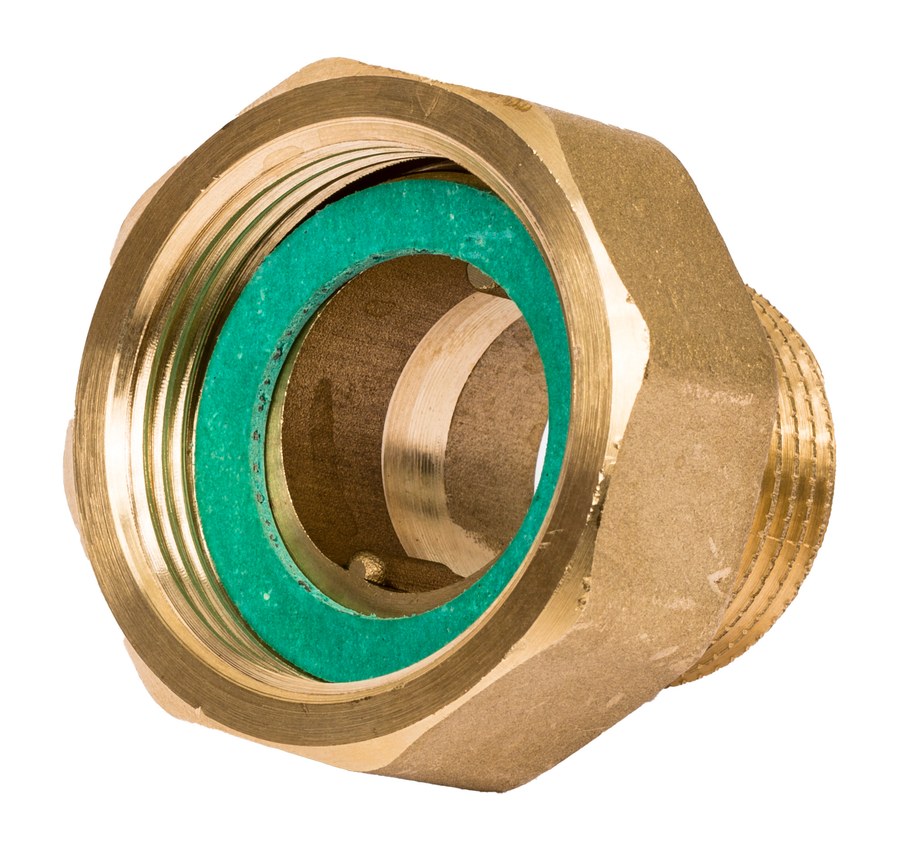

Danfoss Thread tailpiece set (2 pcs), PN 25, DN 25, R 1 male × G 11/4 union, for AV-range self-acting controllers & VM/VG globe valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss thread tailpiece set (2 pcs) (003H6904) — genuine Danfoss accessory for the AV-range self-acting pressure, differential-pressure and flow controllers (AVP/AVPB/AVPQ/AVQ/AVQM/AVQT and related) and VM/VG globe valves. Externally-threaded connection tailpieces (union-nut to valve, male BSP-taper thread to pipe). Nominal size DN 25; pressure class PN 25 (25 bar); valve-side union nut per size. OEM designation "Tailpiece ext.thr R1 PN25 DN25 (G11/4)". material Brass CW617N. Supplied as a pair (packing quantity 2 pcs). Net weight 0.484 kg; gross weight 0.498 kg. Contains lead per the REACH candidate list. OEM P/N 003H6904. EAN 5702421544891. Technical data quoted verbatim from store.danfoss.com (code 003H6904).
Technical Specifications
- Code number
- 003H6904 Type: Thread tailpieces Product group: Tailpieces Function: Externally-threaded connection tailpieces (union-nut to valve, male BSP-taper thread to pipe) For valve size: DN 25 Connection types: External Thread Description (OEM): Tailpiece ext.thr R1 PN25 DN25 (G11/4) Diameter: 25 mm Pressure class: PN 25 Pressure nominal: 25 bar material: Brass CW617N Packing format: Single pack Packing quantity (pcs per pack): 2 EU RoHS compliance: Out of scope REACH Candidate List substance: Lead (CAS no. 7439-92-1) Net weight: 0.484 kg Gross weight: 0.498 kg EAN: 5702421544891 Connection size: G 1 1/4 Description: Tailpiece ext.thr R1 PN25 DN25 (G11/4) Diameter [mm]: 25 mm Packing quantity: 2 Pressure nominal [bar]: 25 bar REACH Candidate List substances: Lead (CAS no. 7439-92-1)
Standards & Compliance
- Material
- Brass CW617N
- Pressure Rating
- PN 25 (25 bar)
- HS Code
- 8481.90
Compatibility & Fitment
Genuine Danfoss accessory (003H6904) for the AV-range self-acting controllers and VM/VG globe valves. Confirm the nominal size / connection matches the valve and pipework before ordering. Pressure class PN 25.
Product Documentation
More from Danfoss
Danfoss
Danfoss Thread tailpiece set (2 pcs), PN 25, DN 32, R 11/4 male × G 13/4 union, for AV-range self-acting controllers & VM/VG globe valves
003H6905
Danfoss
Danfoss Thread tailpiece set (2 pcs), PN 25, DN 32, R 11/4 male × G 11/2 union, for AV-range self-acting controllers & VM/VG globe valves
003H6906
Danfoss
Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 15, union G 3/4, for AV-range self-acting controllers & VM/VG globe valves
003H6908
Danfoss
Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 20, union G 1, for AV-range self-acting controllers & VM/VG globe valves
003H6909
Danfoss
Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 25, union G 1 1/4, for AV-range self-acting controllers & VM/VG globe valves
003H6910
Danfoss
Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 32, union G 1 3/4, for AV-range self-acting controllers & VM/VG globe valves
003H6911
Danfoss
Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 40, union G 2, for AV-range self-acting controllers & VM/VG globe valves
003H6912
Danfoss

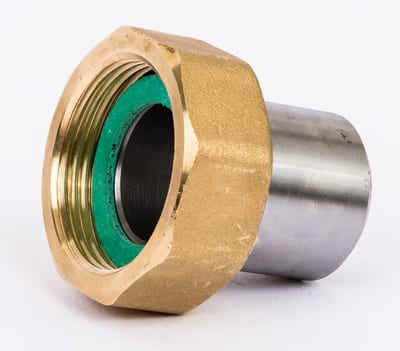

Danfoss Weld-on tailpiece set (2 pcs), PN 25, DN 50, union G 2 1/2, for AV-range self-acting controllers & VM/VG globe valves
