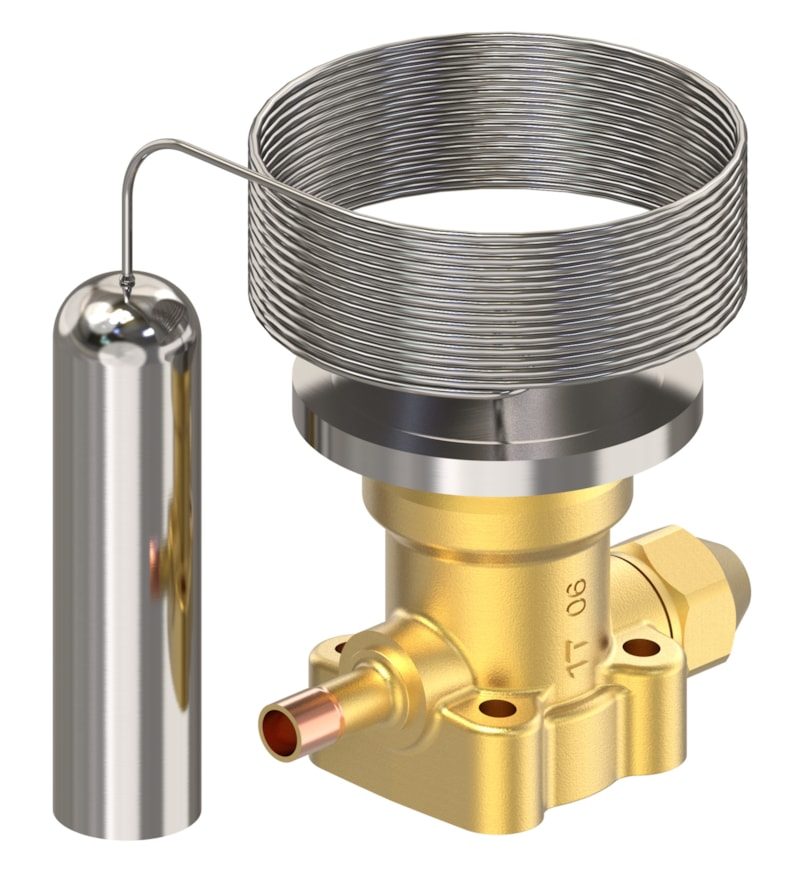

Danfoss power element for TE 5 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 60, evaporating -60 to -10 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss exchangeable thermostatic power element for the TE 5 expansion valve, charged for R404A/R507A. Externally equalized, MOP 60 (at -5 °C), evaporating range -60 to -10 °C. Laser-welded stainless steel element, capillary tube and bulb; supplied with bulb strap.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- TE 5
- Refrigerant
- R404A/R507A
- Pressure equalization
- externally equalized
- MOP
- MOP 60 (at -5 °C)
- Evaporating temperature range
- -60 to -10 °C
- Capillary tube
- 3000 mm
- Equalization connection
- 1/4 in solder ODF
- Element/capillary/bulb
- Laser-welded stainless steel
- Net weight
- 0.47 kg / Gross: 0.571 kg
- EAN
- 5702428017411
- Code number
- 067B3388
- Product group
- Expansion valves
- Type designation
- Element
- Body material
- Brass
- Max. working pressure
- 28.0 bar
- Temperature range
- -60 °C to -10 °C
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube length
- 3000 mm
- Equalization connection type
- Solder, ODF
- Equalization size
- 6 mm
- MOP Point
- -5 °C
- MOP Point [psig]
- MOP 60
- Parts included
- Bulb strap; Gasket; Key; O-ring
- Superheat setting
- Adjustable
- EU RoHS compliance
- Yes with exemptions
- Compatible with
- TE 5 thermostatic expansion valve
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
