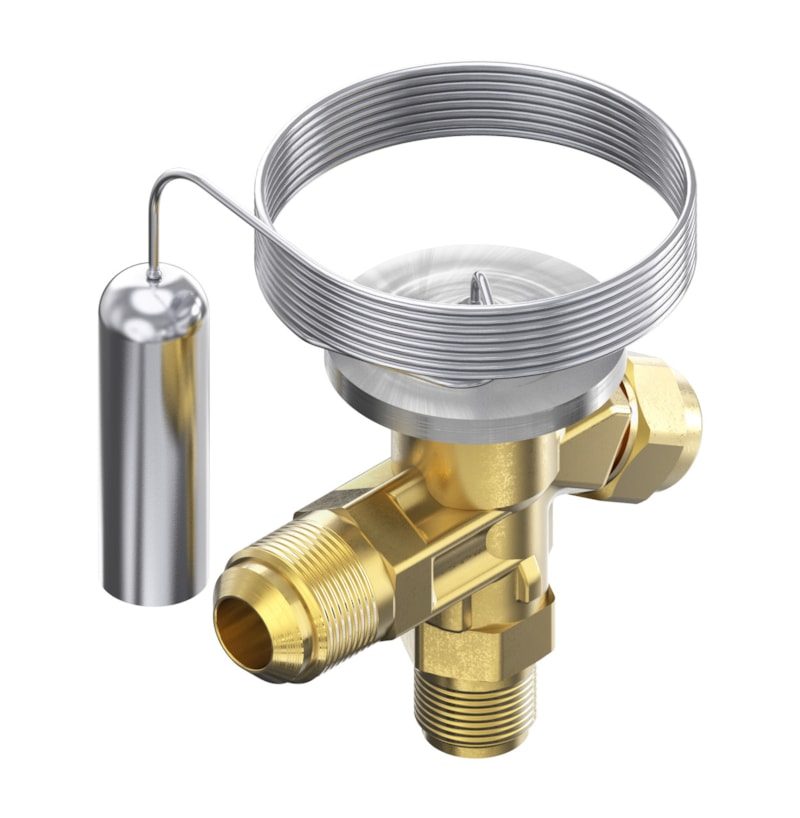

Danfoss T 2 thermostatic expansion valve, R404A/R507A, 3/8 in flare × 1/2 in flare, internally equalized, without MOP, evaporating -60 to -25 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss T 2 thermostatic expansion valve for R404A/R507A. Internally equalized with adjustable 4 °C static superheat, without MOP, 3/8 in flare inlet and 1/2 in flare outlet, evaporating range -60 to -25 °C. Interchangeable orifice assembly (ordered separately).
Technical Specifications
- Type
- Thermostatic expansion valve
- Series
- T 2 (T2 / TE 2 program)
- Refrigerant
- R404A/R507A
- Inlet
- 3/8 in flare
- Outlet
- 1/2 in flare
- Pressure equalization
- Internally equalized
- MOP
- Without
- Evaporating temperature range
- -60 to -25 °C
- Static superheat
- 4 °C (adjustable)
- Capillary tube
- 1500 mm
- Max working pressure
- 34 bar (500 psig)
- Body/connection material
- Brass
- Orifice
- Replaceable (ordered separately)
- Net weight
- 0.283 kg / Gross: 0.306 kg
- EAN
- 5702422125839
- MPN
- 068Z3401
- Product group
- Expansion valves
- Approval
- EAC
- Body material
- Brass
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3011:X:10; 3011:X:13)
- Connection material
- Brass
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 2
- Identical product
- 068Z3636
- Inlet connection type
- Flare
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Outlet connection type
- Flare
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R404A/R507A
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- -25 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- -15 °F
- Temperature range [°F] [min]
- -75 °F
Standards & Compliance
- Classification / Approval
- UL, EAC, PED 2014/68/EU Art. 4 par. 3, EN 12178, EN 12284
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility per Danfoss datasheet. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss T 2 thermostatic expansion valve, R404A/R507A, 3/8 in flare × 1/2 in flare, internally equalized, MOP 120, evaporating -40 to +10 °C
068Z3402
Danfoss

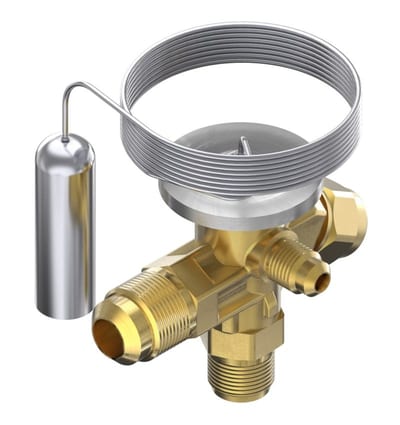

Danfoss TE 2 thermostatic expansion valve, R404A/R507A, 3/8 in flare × 1/2 in flare, externally equalized, without MOP, evaporating -40 to +10 °C
