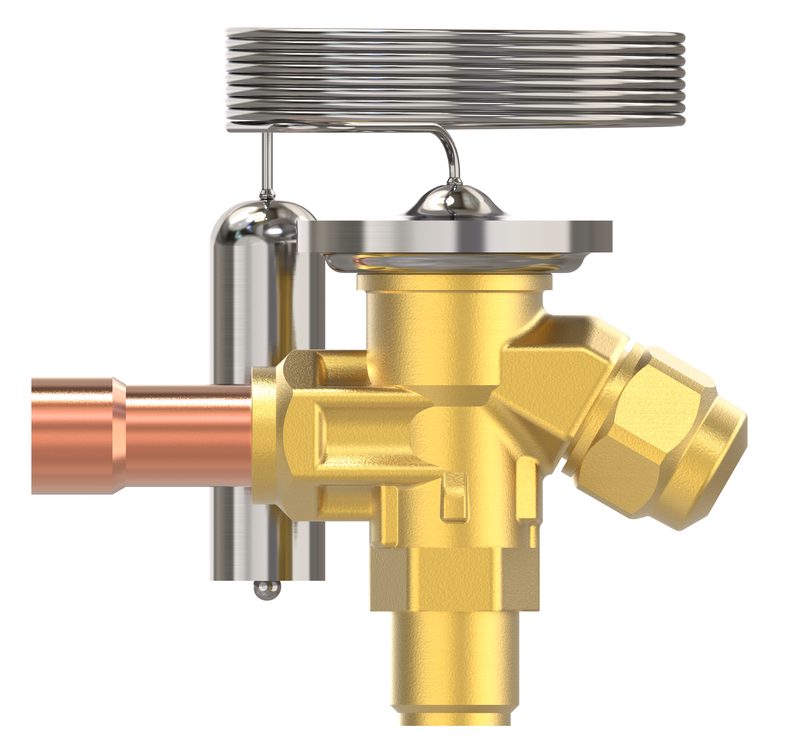

Danfoss T 2 thermostatic expansion valve, R404A/R507A, 3/8 in flare × 12 mm solder, internally equalized, MOP 30, evaporating -60 to -25 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss T 2 thermostatic expansion valve for R404A/R507A. Internally equalized with adjustable 4 °C static superheat, MOP 30 (limited at -20 °C), 3/8 in flare inlet and 12 mm solder outlet, evaporating range -60 to -25 °C. Interchangeable orifice assembly (ordered separately).
Technical Specifications
- Type
- Thermostatic expansion valve
- Series
- T 2 (T2 / TE 2 program)
- Refrigerant
- R404A/R507A
- Inlet
- 3/8 in flare
- Outlet
- 12 mm solder
- Pressure equalization
- Internally equalized
- MOP
- MOP 30 (limited at -20 °C)
- Evaporating temperature range
- -60 to -25 °C
- Static superheat
- 4 °C (adjustable)
- Capillary tube
- 1500 mm
- Max working pressure
- 34 bar (500 psig)
- Body/connection material
- Brass
- Orifice
- Replaceable (ordered separately)
- Net weight
- 0.27 kg
- EAN
- 5702422124610
- MPN
- 068Z3427
- Product group
- Expansion valves
- Approval
- EAC
- Body material
- Brass
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3011:X:10; 3001:X:12)
- Connection material
- Brass
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 2
- Identical product
- 068Z3645
- Inlet connection type
- Flare
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- MOP Point [psig]
- MOP 30
- MOP Point [°C]
- -20 °C
- MOP Point [°F]
- -5 °F
- Outlet connection type
- Solder
- Outlet size [mm]
- 12 mm
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R404A/R507A
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- -25 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- -15 °F
- Temperature range [°F] [min]
- -75 °F
Standards & Compliance
- Classification / Approval
- UL, EAC, PED 2014/68/EU Art. 4 par. 3, EN 12178, EN 12284
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility per Danfoss datasheet. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss TE 2 thermostatic expansion valve, R404A/R507A, 3/8 in flare × 12 mm solder, externally equalized, MOP 30, evaporating -60 to -25 °C
068Z3428
Danfoss

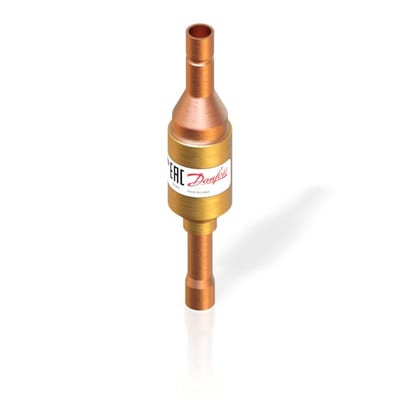

Danfoss NRV 6S Check Valve 6 mm ODF Solder Straightway
020B1014
Danfoss

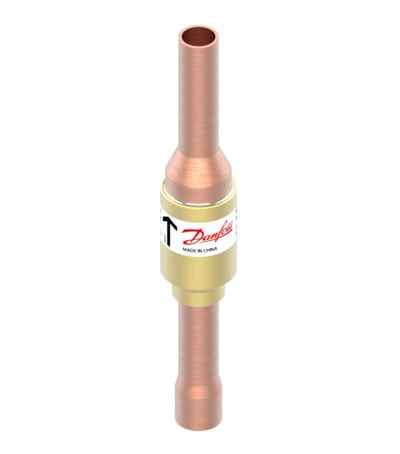

Danfoss NRV 10S Check Valve 10 mm ODF Solder Straightway
020B1015
Danfoss

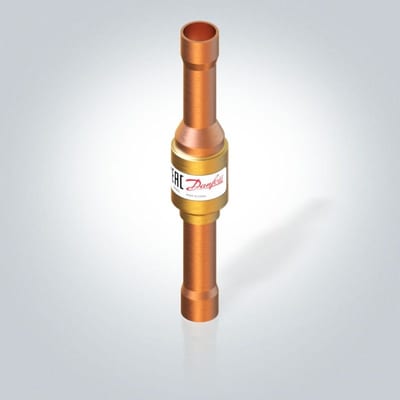

Danfoss NRV 12S Check Valve 12 mm ODF Solder Straightway
020B1016
Danfoss

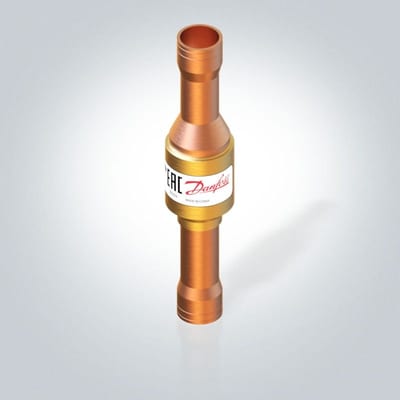

Danfoss NRV 19S Check Valve 18 mm ODF Solder Straightway
020B1017
Danfoss

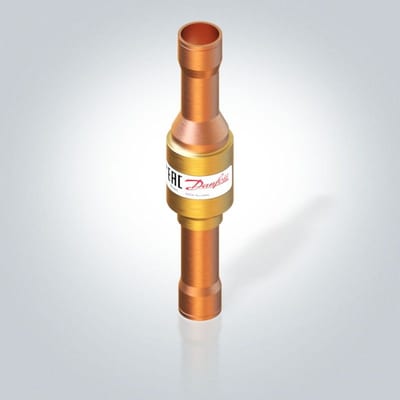

Danfoss NRVH 16S Check Valve 16 mm (5/8 in) ODF Solder Straightway
020B1038
Danfoss

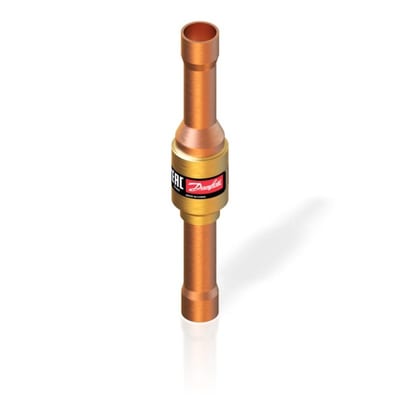

Danfoss NRVH 12S Check Valve 1/2 in ODF Solder Straightway 020B1039
Danfoss

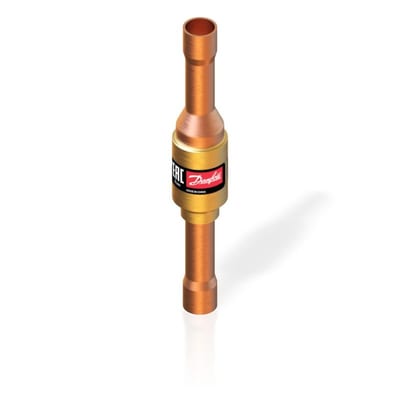

Danfoss NRVH 10S Check Valve 3/8 in ODF Solder Straightway 020B1046
