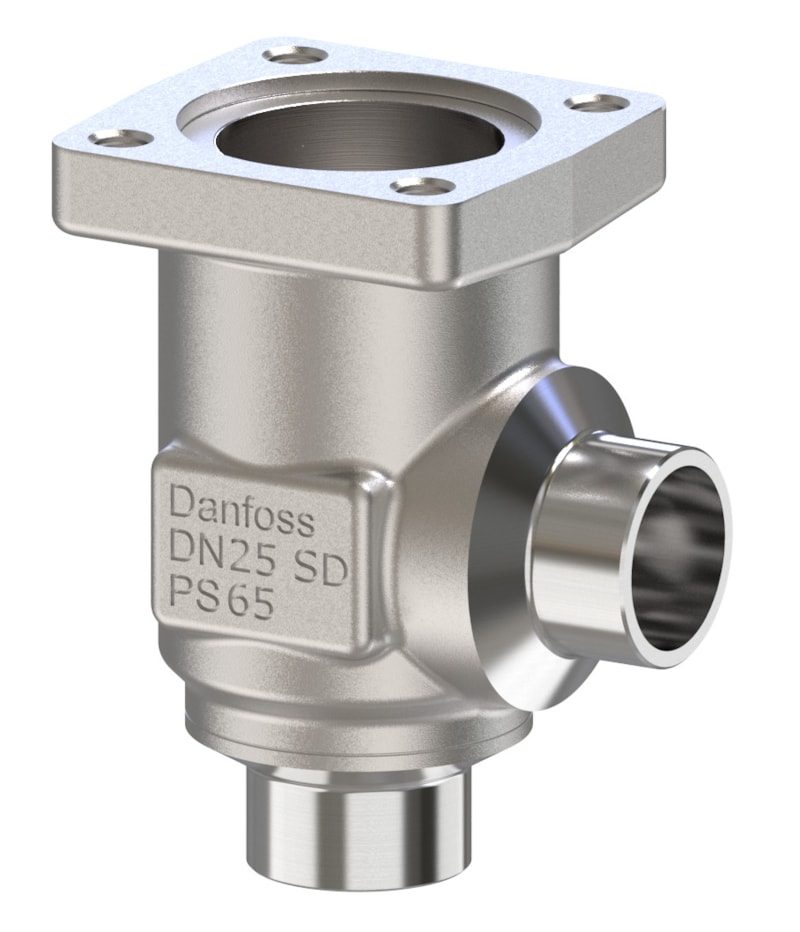

Danfoss SVL Flexline multifunction valve body, SVL 25 angleway solder 28 mm, 65 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 25 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B6726. This is the bare valve housing (body only, without function module): it is soldered permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). Keeping a common body across functions lets a plant standardise on one housing and change the valve duty later without re-soldering. This SKU is the angleway body with 28 mm solder connections to EN 1254-5. Bi-flow body; maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway bodies place the inlet and outlet at 90 degrees. Order the matching SVL function module separately for the required duty and nominal size.
Technical Specifications
- Type
- Multifunction valve body, SVL 25 (SVL Flexline)
- Code number
- 148B6726
- Series
- SVL Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module
- Nominal size
- SVL 25
- Direction
- Angleway
- Flow direction
- Bi-flow
- Connection standard
- EN 1254-5
- Connection size
- 28 mm
- Connection type
- Solder
- Body material
- Steel
- Connection material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- Approvals
- CE, UKCA
- Net weight
- 1.85 kg
- EAN
- 5702428559867
- Product group
- Multifunction valves
- Approval
- UKCA
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [mm]
- 28 mm
- Inlet connection type
- Solder
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [mm]
- 28 mm
- Outlet connection type
- Solder
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 25
Standards & Compliance
- Size / Series
- 28 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body. Select by nominal size (SVL 25), body direction (angleway) and connection (28 mm solder, EN 1254-5). The same soldered body accepts any SVL Flexline function module of the matching size, so the valve duty (shut-off / regulating / check & stop / check) is set by the top part fitted, not by the body. Solder and butt-weld housings are separate codes and are not interchangeable; ASME B16.22 (imperial) and EN 1254-5 (metric) solder ends are also separate codes — confirm the mating pipe standard before ordering. Angleway and straightway bodies of the same size share the function-module range.
