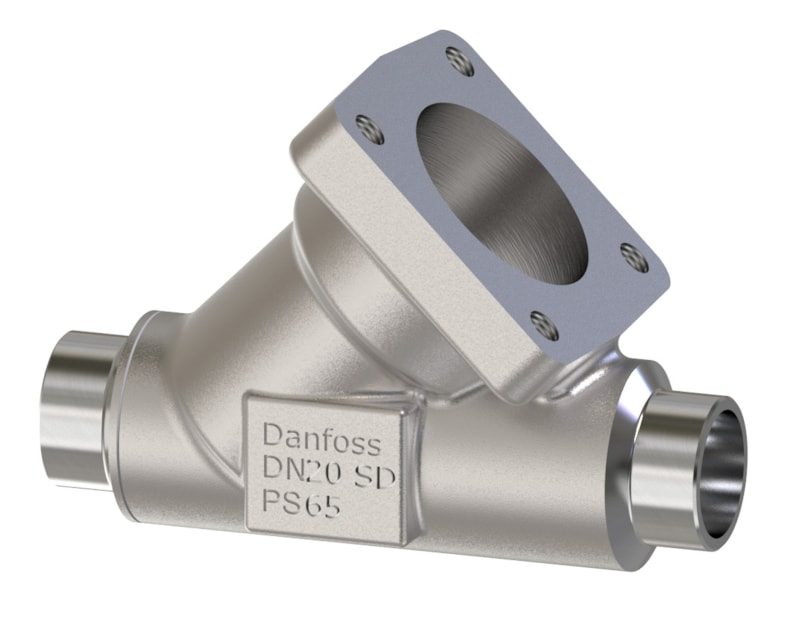

Danfoss SVL Flexline multifunction valve body, SVL 20 straightway solder 22 mm, 65 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 20 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B6746. This is the bare valve housing (body only, without function module): it is soldered permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). Keeping a common body across functions lets a plant standardise on one housing and change the valve duty later without re-soldering. This SKU is the straightway body with 22 mm solder connections to EN 1254-5. Bi-flow body; maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway bodies place the inlet and outlet in line. Order the matching SVL function module separately for the required duty and nominal size.
Technical Specifications
- Type
- Multifunction valve body, SVL 20 (SVL Flexline)
- Code number
- 148B6746
- Series
- SVL Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module
- Nominal size
- SVL 20
- Direction
- Straightway
- Flow direction
- Bi-flow
- Connection standard
- EN 1254-5
- Connection size
- 22 mm
- Connection type
- Solder
- Body material
- Steel
- Connection material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- Approvals
- CE, UKCA
- Net weight
- 1.018 kg
- EAN
- 5702428559669
- Product group
- Multifunction valves
- Approval
- UKCA
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [mm]
- 22 mm
- Inlet connection type
- Solder
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [mm]
- 22 mm
- Outlet connection type
- Solder
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 20
Standards & Compliance
- Size / Series
- 22 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body. Select by nominal size (SVL 20), body direction (straightway) and connection (22 mm solder, EN 1254-5). The same soldered body accepts any SVL Flexline function module of the matching size, so the valve duty (shut-off / regulating / check & stop / check) is set by the top part fitted, not by the body. Solder and butt-weld housings are separate codes and are not interchangeable; ASME B16.22 (imperial) and EN 1254-5 (metric) solder ends are also separate codes — confirm the mating pipe standard before ordering. Angleway and straightway bodies of the same size share the function-module range.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 25 straightway solder 28 mm, 65 bar, steel
148B6747
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 32 straightway solder 35 mm, 65 bar, steel
148B6748
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 40 straightway solder 42 mm, 65 bar, steel
148B6749
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 65 straightway solder 64 mm, 65 bar, steel
148B6750
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 80 straightway solder 76.1 mm, 65 bar, steel
148B6751
Danfoss
Danfoss SVL Flexline multifunction valve body, SVL 100 straightway solder 108 mm, 65 bar, steel
148B6752
Danfoss
Danfoss hand tool set 7/8/10/14 mm for SVA valve service (SVA 15-20, 25-40, 50-65, 80-100), 24-Piece pack
148B6573
Danfoss

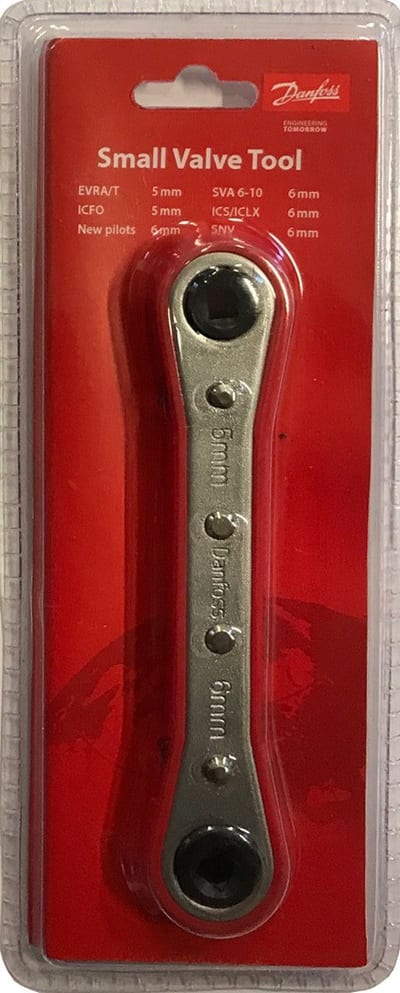

Danfoss hand tool set 5/6 mm for EVRA, SVA 6-10, SNV, ICFO, ICLX, ICS and pilot valve service, 30-Piece pack
