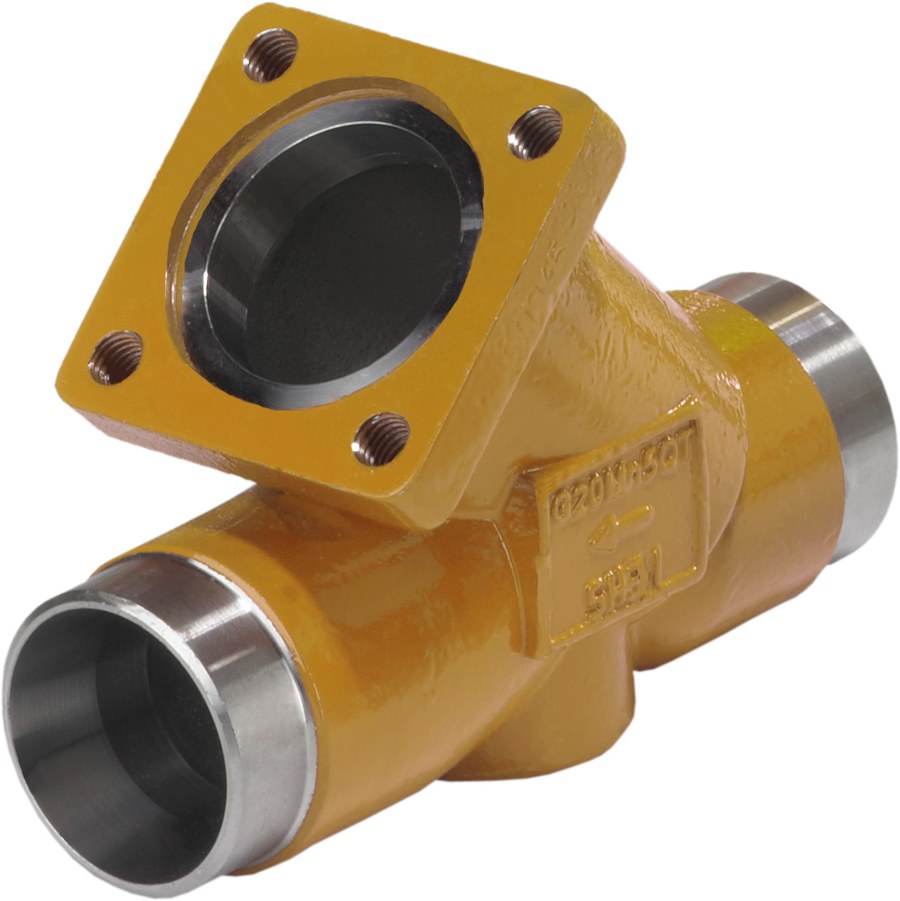

Danfoss SVL 65 multifunction valve body (SVL Flexline), straightway, 65 mm (2 1/2 in) butt weld EN 10220, steel, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 65 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B6648. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded permanently into the line and then converted to a shut-off (SVA-S / SVA-L), regulating (REG-SA / REG-SB), stop & check (SCA-X) or check (CHV-X) valve by fitting the matching SVL Flexline function module (complete top part). Standardising on one welded housing lets the valve duty be changed later without re-welding. This SKU is the straightway body with 65 mm (2 1/2 in) butt weld connections to EN 10220. Bi-flow body; maximum working pressure 65 bar (943 psig); media temperature range -60 to 200 C. Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Order the matching SVL function module separately for the required duty.
Technical Specifications
- Type
- Multifunction valve body, SVL 65 (SVL Flexline)
- Code number
- 148B6648
- Series
- SVL Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-S / SVA-L, REG-SA / REG-SB, SCA-X or CHV-X function module
- Nominal size
- 65 mm (2 1/2 in)
- Flow direction body
- Straightway
- Connection
- Butt weld
- Connection standard
- EN 10220 / GOST 8734-75, 8732-78
- Body material
- Steel
- Flow
- Bi-flow body
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 200 C (-76 to 392 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Conformity assessment
- PED category II
- Approvals
- CE (PED category II)
- EAN
- 5702428507097
- Net weight
- 2.578 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2001:D29:65); (2005:D29:65)
- Connection material
- Steel
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 1/2 in
- Inlet connection size [mm]
- 65 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 2 1/2 in
- Outlet connection size [mm]
- 65 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 65
Standards & Compliance
- Size / Series
- 65 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 200 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body. Select by nominal size (65 mm / 2 1/2 in), body direction (straightway) and connection standard (EN 10220 butt weld). The same welded body accepts any SVL Flexline function module of the matching size, so the valve duty (shut-off / regulating / stop & check / check) is set by the top part fitted, not by the body. EN (DIN) and ASME weld-end variants are separate codes — confirm the mating pipe standard before ordering. Angleway and straightway bodies of the same size share the function-module range.
