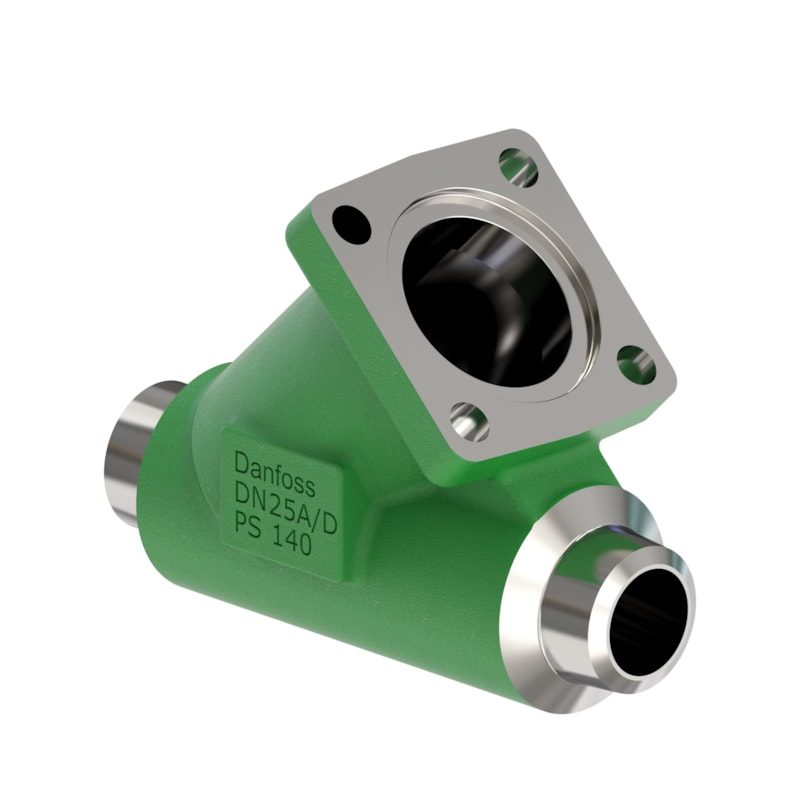

Danfoss SVL-140B 25 multifunction valve body, straightway butt weld 1 in, 140 bar CO2, steel

Danfoss SVL-140B 25 multifunction valve body for the 140 bar (2030 psig) SVL Flexline range for industrial R744 (CO2) sub- and trans-critical refrigeration, code 148B6868. This is the bare valve housing (body only, no function module): it is welded or brazed permanently into the line and then given its duty — shut-off (SVA-140B), stop/check or check (CHV-140B) or strainer (FIA-140B) — by fitting the corresponding complete top part, which exchanges without cutting the body out of the line. This SKU is the straightway body with 1 in butt weld connections to ANSI B36.10 SCH80, EN 10216-2. Maximum working pressure 140 bar (2030 psig); media temperature range -40 to 150 C (-40 to 302 F); housing in low-temperature steel. Straightway bodies keep the inlet and outlet in line. Order the matching SVA-140B, CHV-140B or FIA-140B function module separately for the required duty.

Type

Multifunction valve body, SVL-140B 25 (SVL Flexline, 140 bar CO2)

Code number

148B6868

Series

SVL-140B Flexline (multifunction valve body / housing)

Function

Bare valve body — accepts SVA-140B (shut-off), CHV-140B (stop/check) or FIA-140B (strainer) function module

Nominal size

SVL-140B 25

Direction

Straightway

Connection standard

ANSI B36.10 SCH80, EN 10216-2

Connection size

1 in

Connection type

Butt weld

Body material

Low-temperature steel

Connection material

Steel

Maximum working pressure

140 bar (2030 psig)

Media temperature range

-40 to 150 C (-40 to 302 F)

Applicable media

R744 (CO2), sub- and trans-critical

Fluid group

2

CE mark

No (PED Article 4, paragraph 3 — sound engineering practice)

PED category

Art. 4 par. 3

Approvals

C UL US LISTED, CRN

Net weight

2.55 kg

Gross weight

2.75 kg

EAN

5715162794432

Size / Series

1 in

Material

Low-temperature steel

Pressure Rating

140 bar

Temperature Range

-40 to 150 C

HS Code

8481.90
