Danfoss SFV 25 safety relief valve, G thread, set pressure 16 bar (232 psig), Danfoss cert (code 2416+270)
Danfoss · HVAC & Refrigeration · Safety Relief Valves

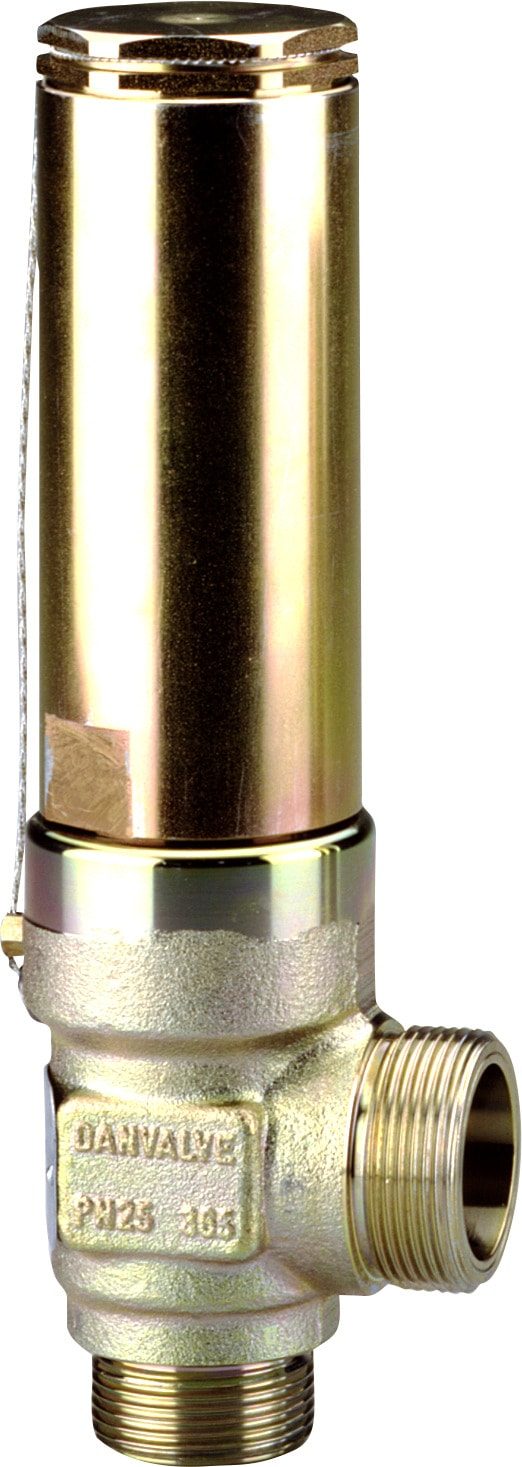

Danfoss SFV 25 back-pressure-dependent safety relief valve, store code 2416+270, set pressure 16 bar g (232 psig), supplied with a Danfoss pressure-setting certificate. SFV 20 and SFV 25 are standard, back-pressure-dependent safety relief valves in angle-way execution, designed to protect pressure vessels and other components against excessive pressure in industrial refrigeration plant. On a rise above the set pressure the valve starts to open, is fully open before the pressure is 10% above set pressure, and is fully closed again before the pressure falls 10% below set pressure (DIN 3320 characteristic). The housing is special steel approved for low-temperature operation; the spindle and seat are stainless steel for precise operation, and the valve cone gasket is a special chloroprene (neoprene) compound. The spring housing is closed tightly to avoid refrigerant leakage. After the set pressure is adjusted at Danfoss the valve is sealed, and a metal plate records the flow diameter, set pressure, date of production, production number and type-approved code. Applicable for R717 (ammonia), HFC and HCFC (e.g. R22, R134a, R404A) and R744 (CO2), within a temperature range of -30 to +100 C (-22 to +212 F). The valves are designed for a strength test of 43 bar g (624 psig). It is recommended that the valves be installed in pairs in conjunction with the DSV double stop / change-over valve so one valve can be inspected or replaced while the other keeps the vessel protected. Approved in accordance with the Pressure Equipment Directive (PED) and CE marked; discharge capacity certified to ISO 4126-1 / EN 13136. This code is an SFV 25 (nominal valve size 25 mm (1 in), flow diameter 23 mm (0.906 in), flow area 415 mm2 (0.643 in2)) with G outside-pipe-thread connections per ISO 228/1: inlet G 1 1/4 in, outlet G 1 1/2 in. Set pressure 16 bar g (232 psig); de-rated certified coefficient of discharge Kdr 0.48; valve lift 4.5 mm. PED 2014/68/EU category IV, fluid group I, CE marked. Specifications per Danfoss store code 2416+270.
Specifications
- Part number
- 2416+270
- HS code
- 8481.40
- Material
- Special low-temperature steel housing; stainless steel spindle and seat; chloroprene (neoprene) cone gasket
- Pressure rating
- 16 bar g (232 psig) set pressure
- Temperature range
- -30 to 100 C
- Standard size
- Inlet G 1 1/4 in x outlet G 1 1/2 in (ISO 228/1)
- Thread standard
- ISO 228/1
Compatibility
Danfoss SFV 25 safety relief valve. Install with the spring housing upwards for exact opening pressure. Recommended to install in pairs on a DSV double stop / change-over valve so one valve can be serviced while the other protects the vessel — SFV 25 pairs with the DSV 2 change-over valve (2 x SFV 25) and the matching 148F30xx flange + gasket spare set. Select by required set pressure (16 bar g) and certificate type.
Standards
- ISO 228/1
- EN ISO 4126-1
- PED 2014/68/EU
Approvals
HVAC & Refrigeration · More Danfoss · Printable datasheet
