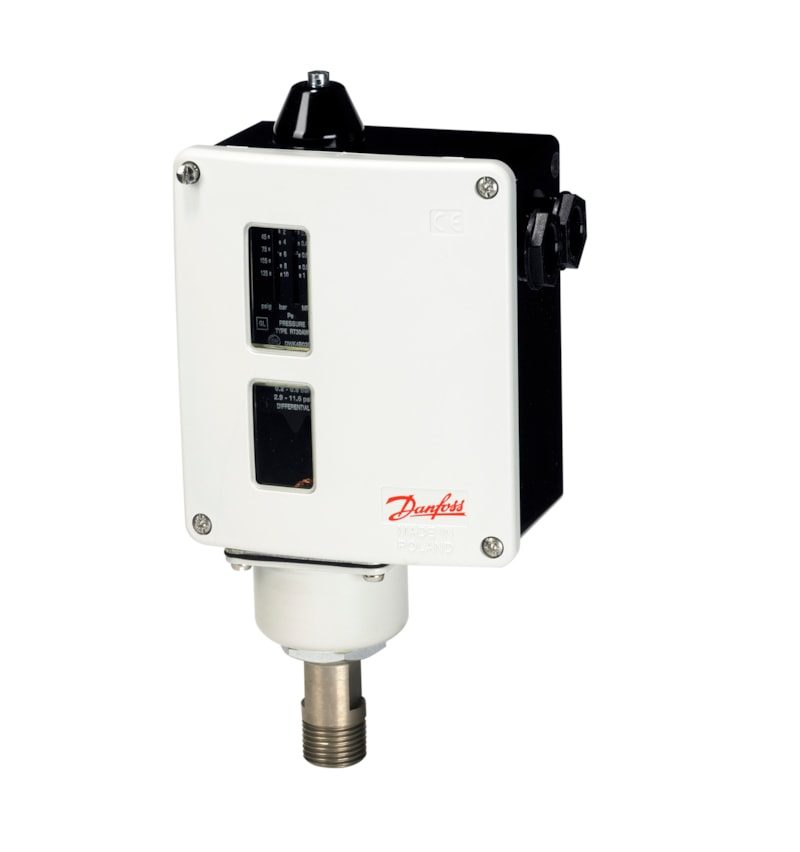

Danfoss RT6AS Pressure Switch 10 to 28 bar SPDT Manual Max Reset (017-507666)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT6AS mechanical pressure switch with bellows sensing element and single-pole double-throw (SPDT) contact, manual max reset. Pressure setting (regulating) range 10 to 28 bar, differential 1.5 bar; max. working pressure 34 bar (495 psig). Pressure connection G 3/8 in male (ISO 228-1). Enclosure IP66. For industrial and marine refrigeration applications. Danfoss code number 017-507666; EAN 5702428517454.
Technical Specifications
- Brand
- Danfoss
- Model
- RT6AS pressure switch
- Code number
- 017-507666
- Pressure setting (regulating) range
- 10 to 28 bar
- Differential
- 1.5 bar
- Max. working pressure
- 34 bar (495 psig)
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Manual Max Reset
- Sensing element
- bellows
- Pressure connection
- G 3/8 in male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -40 to +70 degC (-40 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, PED, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702428517454
- Part number
- 017-507666
- Net weight
- 0.986 Kilogram
- Type
- RT6AS
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- Burst pressure [bar]
- 136 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar]
- 1.5 bar
- Differential [psi]
- 14.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Out of scope
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 38 bar
- Max. test pressure [psig]
- 551 psig
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 495 psig
- PED category
- IV
- Pressure connection notes
- Weld nipple d6.5/D10mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Regulation range [bar] Pe [max]
- 28 bar
- Regulation range [bar] Pe [min]
- 10 bar
- Regulation range [psig] Pe [max]
- 406.1 psig
- Regulation range [psig] Pe [min]
- 145 psig
- Reset function
- Manual Max
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 34 bar (495 psig)
- Temperature Range
- -40 to +70 degC (-40 to +158 degF)
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, PED, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 in male (ISO 228-1) pressure connection. Confirm regulating range and reset type against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT14E Thermostat -5 to 30 degC SPDT gold Auto Reset, 2 m capillary
017-509866
Danfoss
Danfoss RT14 Thermostat -5 to 30 degC SPDT Auto Reset, 2 m capillary
017-509966
Danfoss
Danfoss RT14 Thermostat -5 to 30 degC SPDT Auto Reset, 3 m capillary
017-510066
Danfoss
Danfoss RT14 Thermostat -5 to 30 degC SPDT Auto Reset, 5 m capillary
017-510166
Danfoss
Danfoss RT14 Thermostat -5 to 30 degC SPDT Auto Reset, 8 m capillary
017-510266
Danfoss

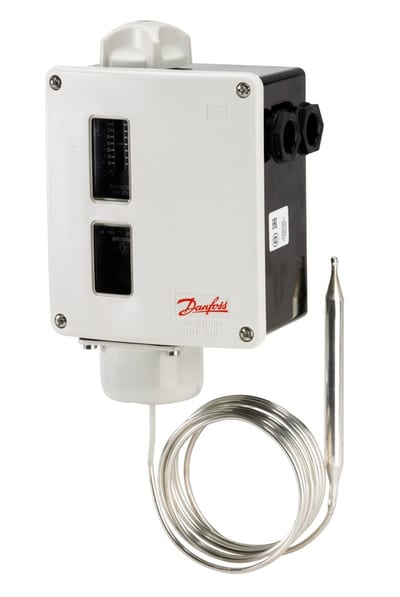

Danfoss RT15 Thermostat 8 to 32 degC SPDT Auto Reset, 2 m capillary
017-511566
Danfoss

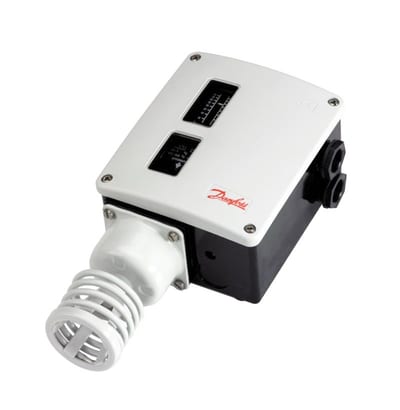

Danfoss RT17 Thermostat -50 to -15 degC SPDT Auto Reset
