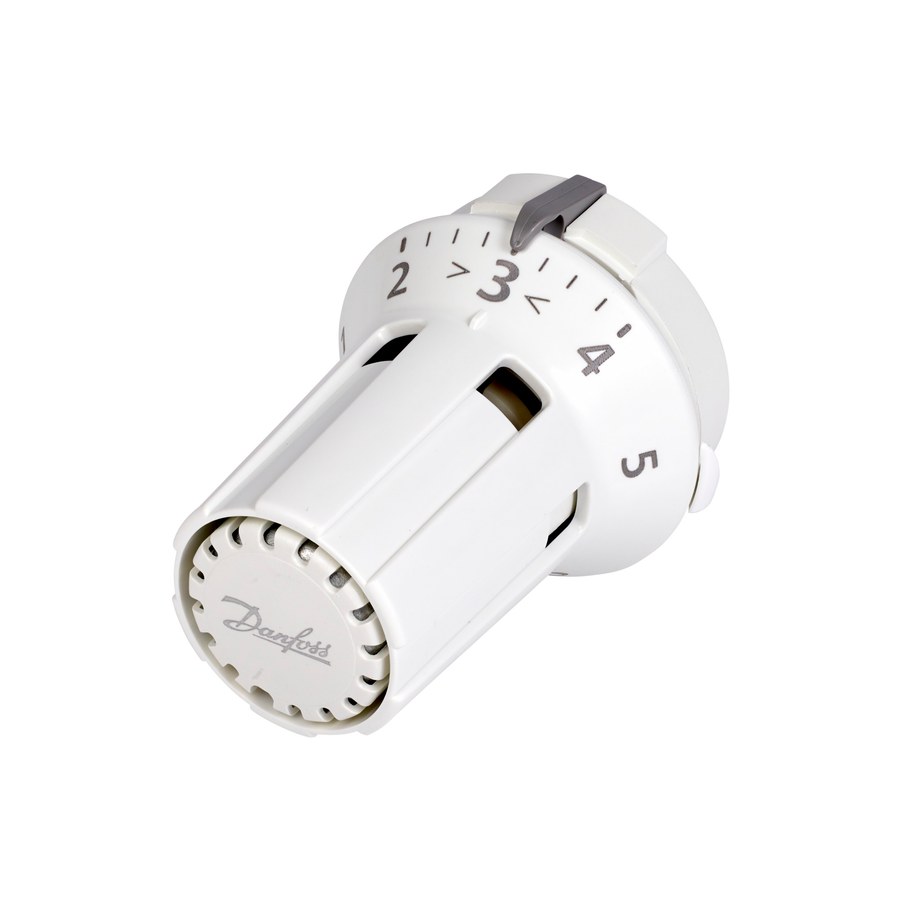

Danfoss RAW/RTD thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RTD connection

Danfoss RAW/RTD Sensors thermostatic radiator sensor, OEM order code 013G5215 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RTD radiator valves via the RTD connection (metal nut fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial, a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5215). OEM P/N 013G5215, EAN 5702420112794. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5215 Brand: Danfoss Type: RAW/RTD Sensors Product group: Radiator Sensors Sensor design: RAW/RTD Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RTD Sensor / adjuster connection: Metal nut Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: Yes Colour: White RAL 9016 Feature description: Replacement sensor for old RTD valves CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.134 kg Gross weight: 0.142 kg EAN: 5702420112794 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
