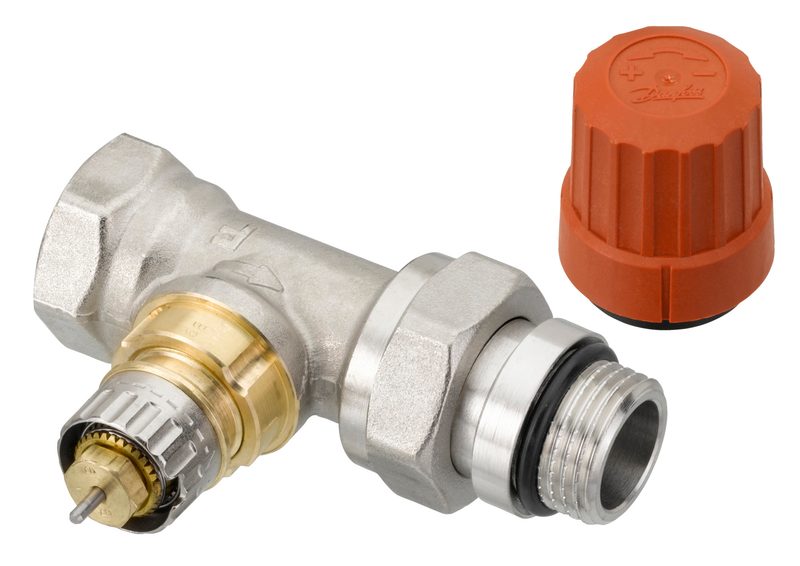

Danfoss RA-N DN 15 straight radiator valve, normal flow with presetting, dimension standard F (013G0114)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RA-N — thermostatic radiator valve body with presetting for two-pipe hydronic heating systems, OEM order code 013G0114. The RA-N (normal flow) valve body accepts an RA-series thermostatic sensor (RA 2000 / living-eco head) or an actuator on its clamp connection; the integral presetting device limits the design flow per radiator so the system self-balances without a separate balancing valve. Presetting is stepped 1…7 plus fully open (N), read on the scale under the head. Nickel-plated brass body, straight pattern. (RA-N DN 15, straight, dimension standard F.) Nominal size DN 15, connection Rp 1/2 (inlet) / R 1/2 (outlet), Kvs 0.9 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated; tailpiece Self-sealing. Application: 2-pipe system. Net weight 0.251 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G0114). OEM P/N 013G0114, EAN 5702420095387.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G0114
- Type
- RA-N
- Product group
- Radiator Valves
- Description
- Normal flow valves with presetting
- Valve type
- Normal flow
- Design
- Straight
- Dimension standard
- F
- Nominal size
- DN 15
- Connection size (inlet)
- Rp 1/2
- Connection size (outlet)
- R 1/2
- Connection types
- Internal thread
- Tailpiece type
- Self-sealing
- Presetting
- yes
- Kvs value
- 0.9 m³/h
- Kv at presetting
- setting 1 = 0.04 m³/h, setting 2 = 0.09 m³/h, setting 3 = 0.16 m³/h, setting 4 = 0.25 m³/h, setting 5 = 0.36 m³/h, setting 6 = 0.43 m³/h, setting 7 = 0.52 m³/h, setting N = 0.73 m³/h
- Application
- 2-pipe system
- Flow temperature (max)
- 120 °C
- Working pressure (max)
- 10 bar
- Test pressure
- 16 bar
- Differential pressure (max)
- 0.6 bar
- Finish
- Nickel plated
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.251 Kilogram
- Gross weight
- 0.263 Kilogram
- EAN
- 5702420095387
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Body brass, Nickel plated
- Pressure Rating
- 10 bar max working (test 16 bar)
- Temperature Range
- up to 120 °C (flow)
- HS Code
- 8481.80
Compatibility & Fitment
Two-pipe radiator valve body for DN 15 straight connection (Rp 1/2). Accepts a Danfoss RA-series thermostatic sensor (RA 2000 / living eco) or thermal/electric actuator on the valve clamp ring. Set the presetting to the design flow of the radiator. Confirm design (Straight), nominal size (DN 15) and dimension standard (F) against the installation before ordering.
