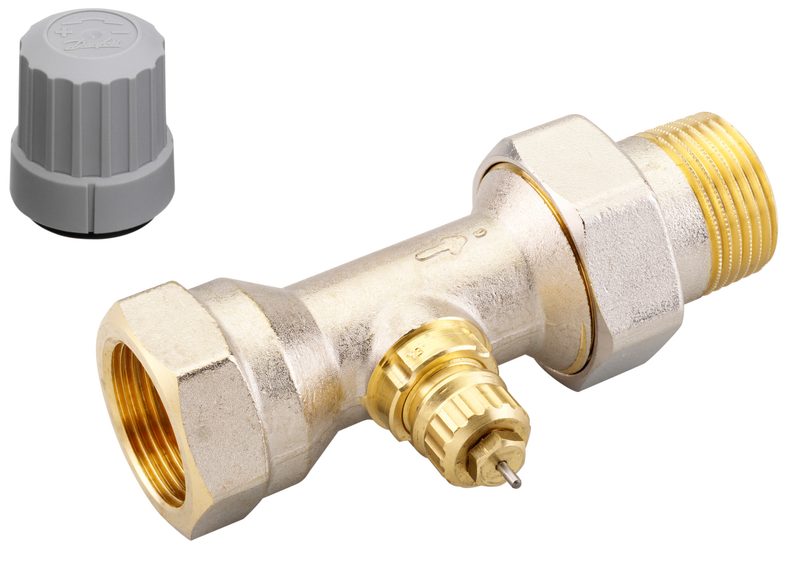

Danfoss RA-FN DN 25 straight radiator valve, fixed capacity (no presetting), dimension standard D
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RA-FN — thermostatic radiator valve body (fixed capacity, no presetting) for two-pipe hydronic heating systems, OEM order code 013G0028. The RA-FN (fixed capacity) valve body is the non-presettable version of the RA-N: it accepts an RA-series thermostatic sensor (RA 2000 / living-eco head) or an actuator on its clamp connection and gives a fixed Kv per nominal size, so radiator flow is set solely by the thermostatic head. Use where individual branch presetting is not required. Nickel-plated brass body, straight pattern. (RA-FN DN 25, straight, dimension standard D.) Nominal size DN 25, connection Rp 1 (inlet) / R 1 (outlet), Kvs 1.4 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated; tailpiece Standard. Application: 2-pipe system. Net weight 0.636 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G0028). OEM P/N 013G0028, EAN 5702420004150.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G0028
- Type
- RA-FN
- Product group
- Radiator Valves
- Description
- Normal flow valves without presetting
- Valve type
- Fixed capacity
- Design
- Straight
- Dimension standard
- D
- Nominal size
- DN 25
- Connection size (inlet)
- Rp 1
- Connection size (outlet)
- R 1
- Connection types
- Internal thread
- Tailpiece type
- Standard
- Presetting
- no
- Kvs value
- 1.4 m³/h
- Kv at Xp = 1 K
- 0.58 m³/h
- Kv at Xp = 2 K
- 1.04 m³/h
- Application
- 2-pipe system
- Flow temperature (max)
- 120 °C
- Working pressure (max)
- 10 bar
- Test pressure
- 16 bar
- Differential pressure (max)
- 0.6 bar
- Finish
- Nickel plated
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.636 Kilogram
- Gross weight
- 0.66 Kilogram
- EAN
- 5702420004150
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Body brass, Nickel plated
- Pressure Rating
- 10 bar max working (test 16 bar)
- Temperature Range
- up to 120 °C (flow)
- HS Code
- 8481.80
Compatibility & Fitment
Two-pipe radiator valve body for DN 25 straight connection (Rp 1). Accepts a Danfoss RA-series thermostatic sensor (RA 2000 / living eco) or thermal/electric actuator on the valve clamp ring. Fixed Kv — no branch presetting. Confirm design (Straight), nominal size (DN 25) and dimension standard (D) against the installation before ordering.
