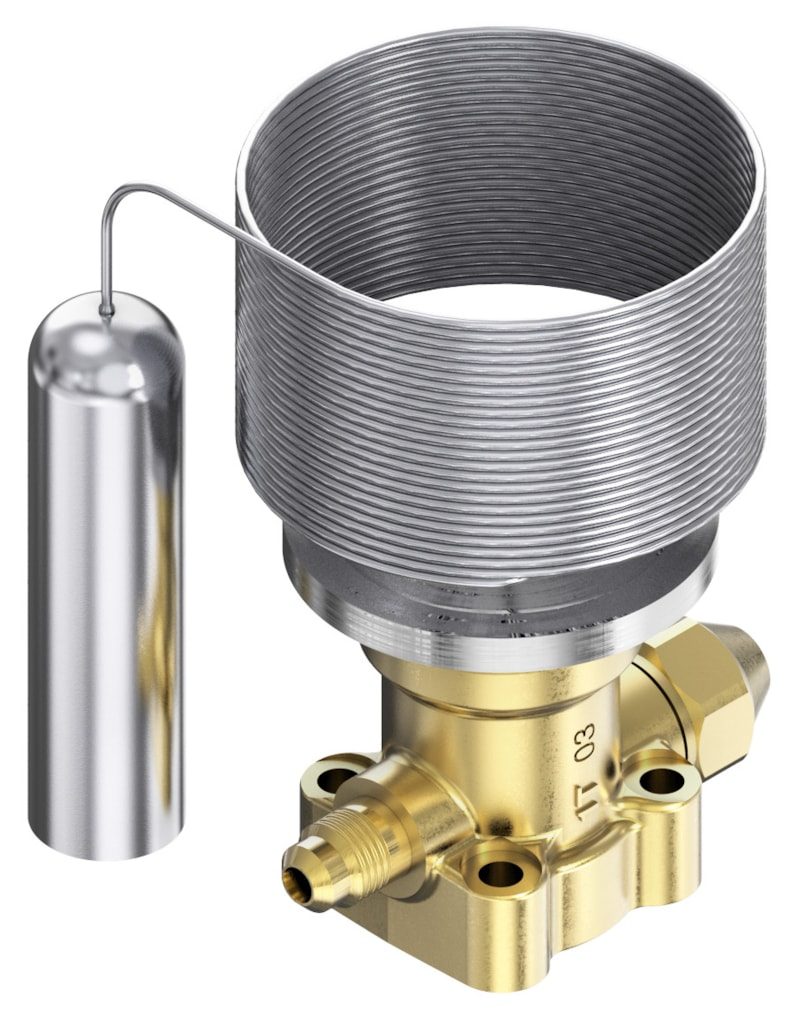

Danfoss power element for PHT (PHTN) thermostatic expansion valve, R134A, externally equalized, 5000 mm capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss exchangeable thermostatic power element for the PHT (PHTN) expansion valve, charged for R134a. Externally equalized via a 1/4 in flare connection. 5000 mm (197 in) capillary tube. Max working pressure 28 bar (400 psig). Laser-welded stainless steel element, capillary tube and bulb; brass body. Supplied with bulb strap.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- PHTN
- Refrigerant
- R134a
- Pressure equalization
- externally equalized
- MOP
- per element charge
- Max working pressure
- 28 bar (400 psig)
- Capillary tube
- 5000 mm
- Equalization connection
- 1/4 in flare
- Element/capillary/bulb
- Laser-welded stainless steel; brass body
- Net weight
- 0.478 kg
- EAN
- 5702428034593
- Code number
- 067B3315
- Product group
- Expansion valves
- Type designation
- Element
- Body material
- Brass
- Temperature range
- -40 °C to 10 °C
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube length
- 5000 mm
- Equalization connection type
- Flare
- Equalization size
- 1/4 in
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss

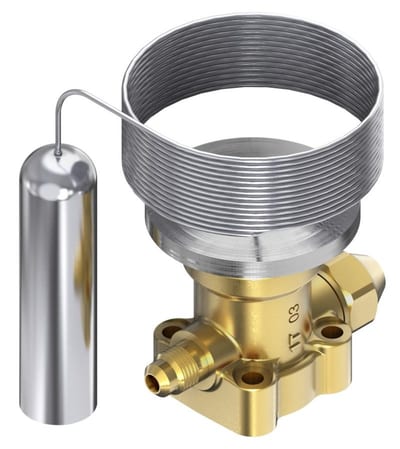

Danfoss power element for PHT (PHTN) thermostatic expansion valve, R134A, externally equalized, 3000 mm capillary, -40 to 10 °C
067B3316
Danfoss
Danfoss power element for PHT (PHTS) thermostatic expansion valve, R404A/R507A, externally equalized, 5000 mm capillary, -40 to 10 °C
067B3319
Danfoss
Danfoss power element for TE 20 thermostatic expansion valve, R134A, externally equalized, 5000 mm capillary
067B3370
Danfoss
Danfoss power element for TE 20 thermostatic expansion valve, R407C, externally equalized, 5000 mm capillary
067B3371
Danfoss

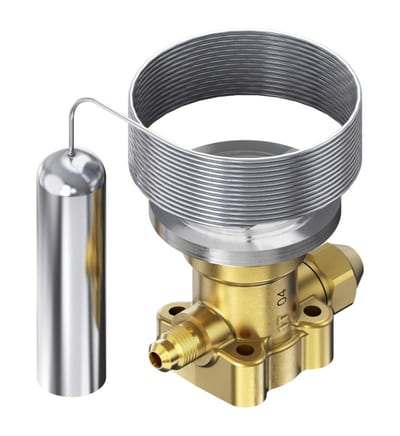

Danfoss power element for TE 5 thermostatic expansion valve, R407F/R407A, externally equalized, 3000 mm capillary
