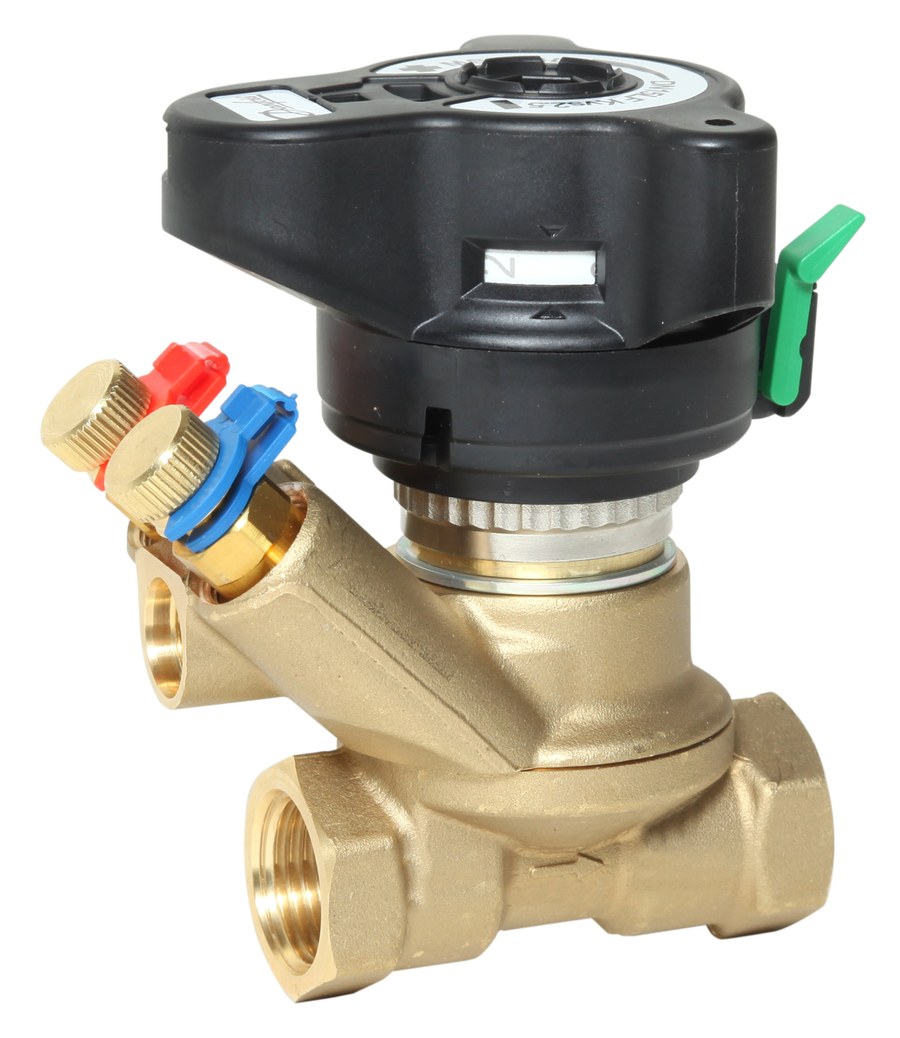

Danfoss MVT DN 15 manual balancing valve, internal thread

Danfoss MVT DN 15 (low-flow trim) — compact manual balancing valve for setting and limiting circuit flow in hydronic heating and cooling systems. Flow is set by a lockable presetting on a graduated scale; the valve provides shut-off and a drain function. DZR brass body, PN 20, internal thread, Kvs 2.5 m³/h, differential-pressure range up to 2.5 bar, media temperature -20 °C to 120 °C. OEM P/N 003Z4080. EAN 5702425180460. Technical data quoted verbatim from store.danfoss.com (code 003Z4080).

Brand

Danfoss

Part number

003Z4080

Code number

003Z4080

Type

MVT

Product group

Manual balancing

Description

MVT DN 15 Low flow, Internal thread, manual balancing valve

Valve size

DN 15

Valve body material

DZR brass

Connection types

Internal thread

Pressure class

PN 20

Kvs values [m³/h]

2.5 m³/h

Differential pressure range [bar] [Max]

2.5 bar

Media temperature [°C] [Min]

-20 °C

Media temperature [°C] [Max]

120 °C

Drain function

Yes

Setting scale

Yes

Shut-off function

Yes

Contains batteries

No

Net weight

0.805 Kilogram

Gross weight

0.805 Kilogram

Volume

1.35 Liter

EAN

5702425180460

HS code

8481.80

Size / Series

DN 15

Material

Valve body DZR brass

Pressure Rating

PN 20

Temperature Range

-20 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
