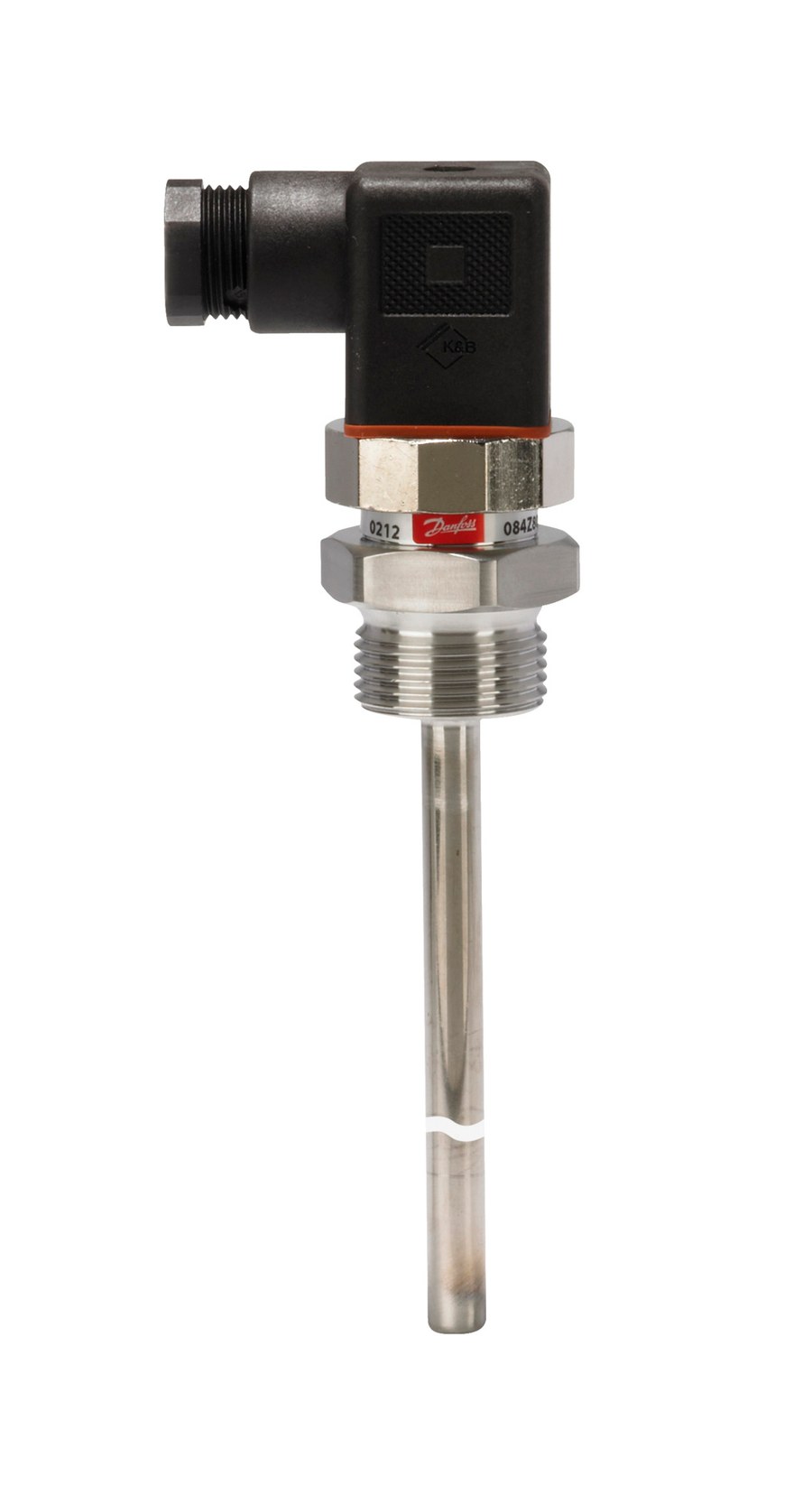

Danfoss MBT 5250 temperature sensor, Pt100 100 ohm, 100 mm insertion, G 3/4 process connection (code 084Z8013)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty temperature sensor, code 084Z8013 (type designation MBT 5250-0000-100-340). Insertion RTD temperature sensor for controlling cooling water, lubricating oil, hydraulic oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 100 mm; G 3/4 male process connection (ISO 228-1-A); AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 13.5; IP65 enclosure per IEC 60529. Withstands 4 g vibration (5-200 Hz) and 100 g / 6 ms shock. The measuring insert of the MBT 5250 is changeable. Supplied in a 20-piece multipack. CE marked.
Specifications
- Part number
- 084Z8013
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5250 insertion sensor with changeable measuring insert. Confirm the required insertion length (100 mm), process thread (G 3/4) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
- EN 60751
- EN 175301-803-A
- IEC 60529
Approvals
