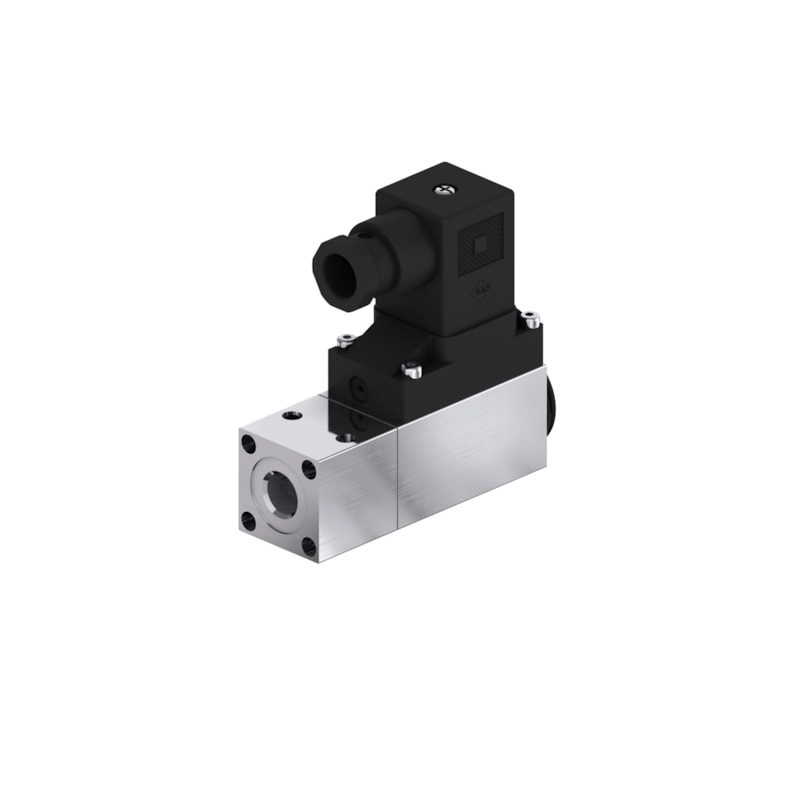

Danfoss MBC 5100-2231-1DB04 heavy-duty block-type pressure switch, 1 bar to 6 bar, SPDT, automatic reset, G1/4, Pg 11 plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBC 5100-2231-1DB04 heavy-duty block-type pressure switch, genuine OEM code number 061B100966. Single-pressure switch from the Danfoss MBC block system for demanding industrial and marine environments — engine, compressor and pump supervision, hydraulic power units, lube-oil and cooling-water pressure monitoring. Stainless steel diaphragm sensing element, regulation range 1 bar to 6 bar with 1 bar to 2.5 bar differential at the min/max setting. SPDT single-pole changeover contact, automatic reset. G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve) pressure connection; DIN 43650-A / EN 175301-803-A plug, Pg 11. Anodized aluminium housing, IP65 enclosure, ambient -10 °C to 85 °C. Max. working pressure 150 bar (2175 psig), burst 300 bar. EAN 5702423218660.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 061B100966
- Type designation
- MBC 5100-2231-1DB04
- Product
- MBC 5100 heavy-duty block-type pressure switch
- Category
- Sensors & Instrumentation — Pressure Switches
- Sensing element
- Diaphragm
- Regulation (setting) range
- 1 bar to 6 bar
- Differential at min/max setting
- 1 bar to 2.5 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole changeover)
- Contact rating
- AC15=0.5 A, 250 V DC13=12 W, 125 V
- Pressure connection
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Electrical connection
- DIN 43650-A / EN 175301-803-A plug, Pg 11
- Max. working pressure
- 150 bar (2175 psig)
- Max. test pressure
- 150 bar
- Burst pressure
- 300 bar
- Enclosure rating
- IP65 (EN 60529)
- Ambient temperature
- -10 °C to 85 °C
- Housing
- anodized AlMgSi1 (AW-6082T6) aluminium; plug fixture glass-filled PA 6.6
- Wetted sensing element
- stainless steel diaphragm
- EAN
- 5702423218660
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Material
- Stainless steel diaphragm; anodized AlMgSi1 aluminium housing; IP65 enclosure
- Thread Standard
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Pressure Rating
- max. working pressure 150 bar (2175 psig); test 150 bar; burst 300 bar
- Temperature Range
- -10 °C to 85 °C ambient
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
MBC 5100 is part of the Danfoss MBC block system; the flanged (D-type) pressure connection accepts an MBV test valve for in-service checking. Stainless steel diaphragm element suits media compatible with stainless steel (air, neutral gases, oil, water). Distinct from other MBC codes by range × sensing element × pressure connection × plug entry — verify the full type designation MBC 5100-2231-1DB04.
