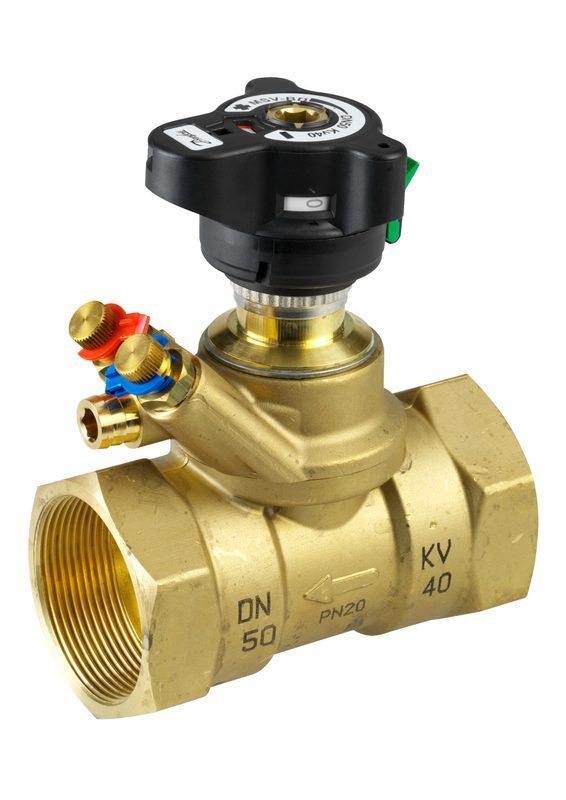

Danfoss LENO MSV-BD DN 50 Internal thread manual balancing valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss LENO MSV-BD — manual (static) double-regulating balancing valve, OEM order code 003Z4006. Manual static balancing valve with presetting and integral shut-off for the constant-flow (hydronic) balancing of heating and cooling distribution systems. The digital handwheel presets a hydraulic resistance so the design flow is fixed in the branch or riser; the two integral test plugs allow the differential pressure across the valve to be measured and the flow read off the valve chart (or a Danfoss PFM meter). Drain function and full shut-off are built in. (MSV-BD DN 50, Internal thread, manual balancing valve.) Nominal size DN 50, Kvs 40 m³/h, PN 20, Internal thread ISO 228/1 connection (G 2"), DZR brass body, media temperature -20 °C to 120 °C. Net weight 2.6 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003Z4006). OEM P/N 003Z4006, EAN 5702420084107. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z4006
- Type
- LENO MSV-BD
- Product group
- Manual balancing
- Function
- manual (static) double-regulating balancing valve
- Store description
- MSV-BD DN 50, Internal thread, manual balancing valve
- Nominal size
- DN 50
- Kvs value
- 40 m³/h
- Connection thread size
- G 2"
- Connection type
- Internal thread ISO 228/1
- Pressure class
- PN 20
- Max. differential pressure
- 3 KPa
- Max. differential-pressure range
- 2.5 bar
- Setting scale
- Yes
- Test plugs
- With test plugs
- Shut-off function
- Yes
- Drain function
- Yes
- Shut-off leakage rate (ISO 5208)
- Rate A
- Valve body material
- DZR brass
- Media temperature
- -20 °C to 120 °C
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 2.6 Kilogram
- Gross weight
- 2.612 Kilogram
- EAN
- 5702420084107
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Valve body DZR brass
- Thread Standard
- ISO 228/1 (parallel)
- Pressure Rating
- PN 20
- Temperature Range
- -20 °C to 120 °C (media)
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Manual static balancing valve for constant-flow hydronic balancing of a DN 50 branch or riser. Confirm nominal size (DN 50), Kvs (40 m³/h) and connection (Internal thread ISO 228/1 G 2") against the circuit design; measure flow at the test plugs and preset the design flow. Read flow with a Danfoss PFM meter or the valve chart.
