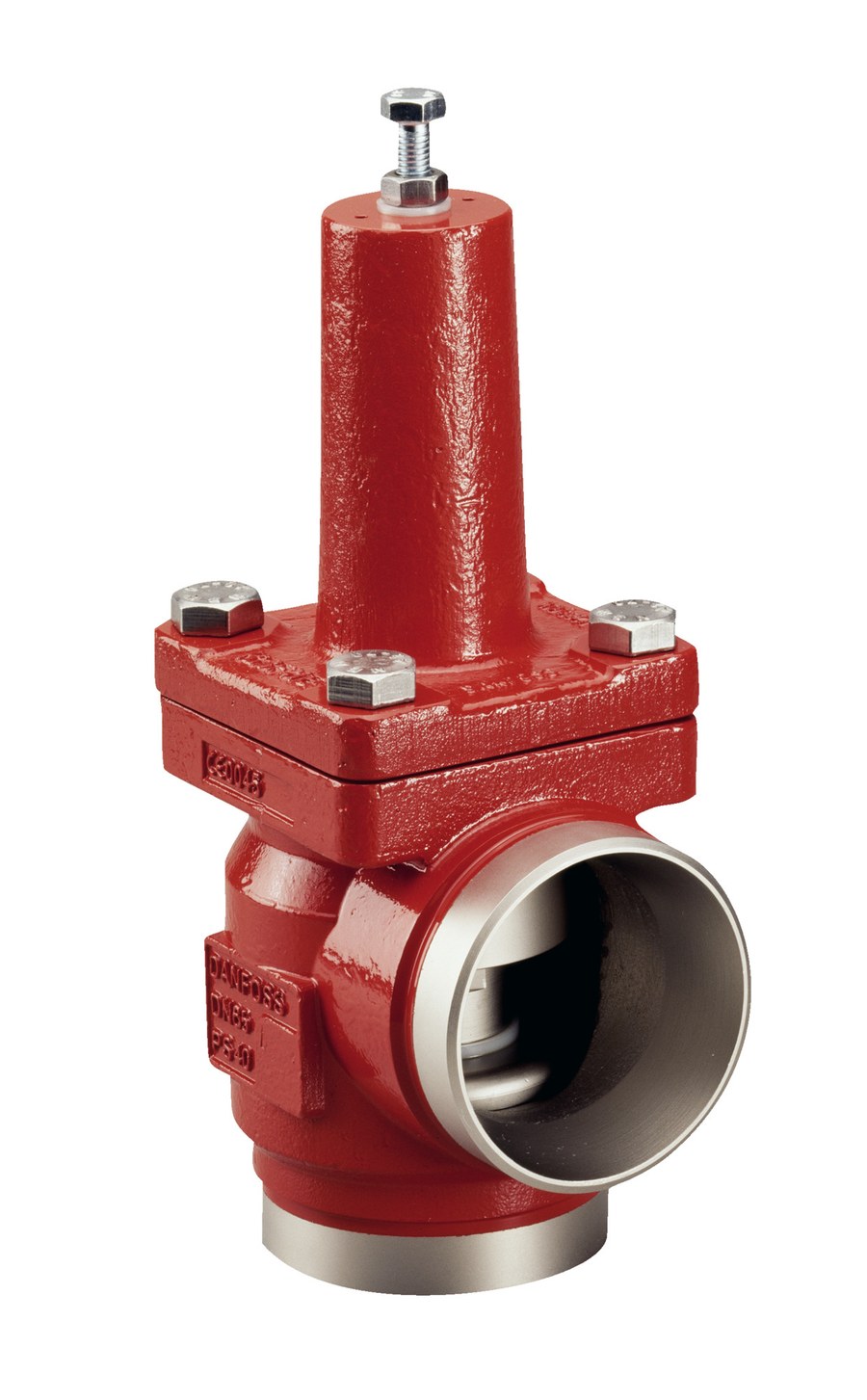

Danfoss KDC 80 D 1 multifunctional compressor pressure control valve, 80 mm (3 in) butt weld EN 10220, angle-way, 1 bar opening differential, 40 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KDC 80 D 1 multifunctional compressor valve (pressure control valve), code 148G3775. Angle-way valve with butt-weld connections to EN 10220, nominal size 80 mm (3 in), for industrial refrigeration compressor packages. The KDC controls the compressor discharge pressure to ensure a fast build-up of pressure and lubrication (oil) pressure at start-up, and simultaneously acts as a check valve in the compressor discharge line to prevent reverse flow when the compressor stops. The valve is force-controlled: it opens when the pressure downstream (oil separator / discharge side) rises to 1 bar (14.5 psi) above the suction pressure, at which point the spring is compressed and the cone lifts. This 1 bar spring setting suits high-pressure compressors. Housing and bonnet are low-temperature steel with stainless-steel bolts; the valve is mounted vertically with the cone downward and carries a threaded NPT 1/4 in pilot-line connection on the bonnet. Maximum working pressure 40 bar (580 psig); media temperature range -50 °C to 150 °C (-58 °F to 302 °F). Flow coefficient Kv 118 m³/h (Cv 137 gal/min) fully open. Suitable for HCFC / HFC, R717 (ammonia) and R744 (CO2) refrigerants. PED category II. CE marked.
Technical Specifications
- Type
- Danfoss KDC 80 D 1 multifunctional compressor valve (pressure control valve)
- Code number
- 148G3775
- Series
- KDC / GVD (mechanical pressure regulating valves)
- Function
- discharge-pressure control + discharge-line check valve (fast oil/lubrication pressure build-up at compressor start)
- Direction
- Angle-way
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 80 mm (3 in)
- Opening (set) differential pressure
- 1 bar (14.5 psi)
- Maximum working pressure
- 40 bar (580 psig)
- Media temperature range
- -50 °C to 150 °C (-58 °F to 302 °F)
- Kv fully open
- 118 m³/h
- Cv fully open
- 137 gal/min
- Body / bonnet material
- low-temperature steel; stainless-steel bolts
- Pilot connection
- NPT 1/4 in (on bonnet)
- Mounting
- vertical, cone downward
- Refrigerants
- R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R717, R744, R507A
- PED category
- II
- Approvals
- CE marked
- Net weight
- 10.028 Kilogram
- Gross weight
- 10.321 Kilogram
- EAN
- 5702428431897
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 80 mm
- Material
- Low-temperature steel
- Pressure Rating
- 40 bar
- Temperature Range
- -50 °C to 150 °C
- HS Code
- 8481.10
Compatibility & Fitment
Danfoss KDC 80 D 1 is selected by compressor package: match nominal size (80 mm (3 in)), weld-end standard (EN 10220; letter D = EN 10220, letter A = ASME B36.10M Schedule 40), and the opening differential-pressure spring (1 bar — use 0.5 bar for low-pressure/booster compressors and 2 bar for standard high-pressure compressors). This is the HCFC/HFC/R717/R744 version. KDC and GVD share internal parts and servicing; seal kits, spring kits and bonnet/housing spares are available separately under the KDC/GVD spare-part codes.
