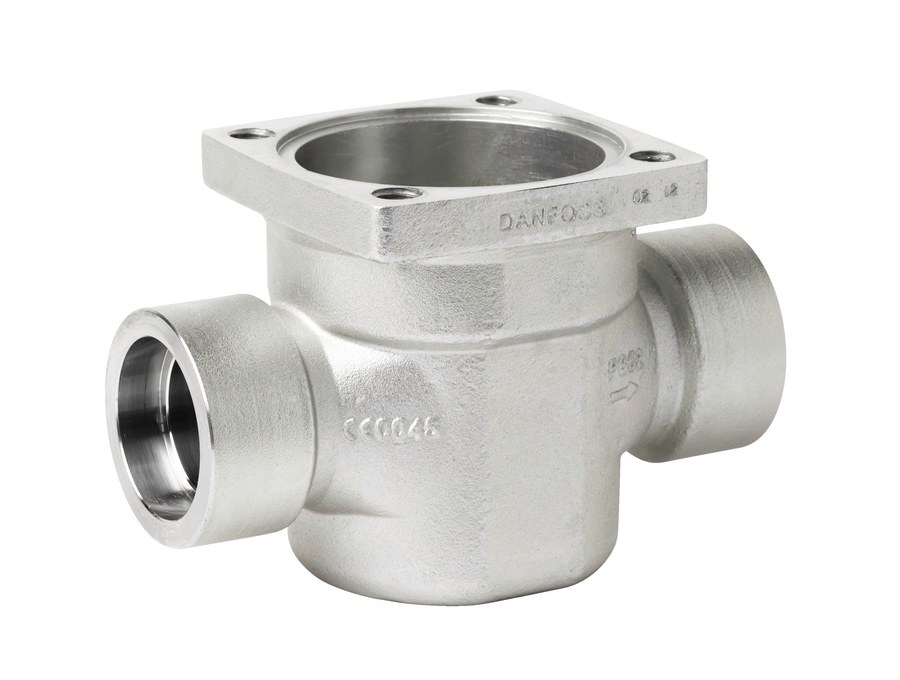

Danfoss ICV 25 multifunction valve body, butt weld, 3/4 in (20 mm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 25 multifunction valve body (code 027H2128) for the ICM 25 / ICS 25 Flexline valve. Butt weld steel connection 3/4 in (20 mm) (ASME B36.10M). Maximum working pressure 65 bar; media temperature -60 to +120 C; steel body. The valve body accepts an ICM function module (A/B/C cone) and an ICAD actuator (ordered separately) -- Kv depends on the chosen function module. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICV 25 multifunction valve body
- Code number
- 027H2128
- Connection
- butt weld, 3/4 in (20 mm), steel (ASME B36.10M)
- Direction
- Straightway
- Body material
- Steel
- Max working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Net weight
- 1.496 kg; gross weight: 1.744 kg
- EAN
- 5702428242950
- Function module
- ICM A/B/C cone ordered separately (sets Kv)
- Actuator system
- ICAD motor, magnetic coupling (ordered separately)
- Refrigerants
- R717 (ammonia), R744 (CO2), R134a, R404A, R407C, R410A, R22 and others
- Approvals
- EAC
- Compliance
- EU RoHS, China RoHS
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection Code
- (2001:D23:20)
- Connection material
- Steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICM 25
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
Multifunction valve body for industrial refrigeration. Requires an ICM function module (A/B/C cone, which sets Kv) and an ICAD actuator. Butt weld connection 3/4 in (20 mm) (ASME B36.10M). Verify refrigerant compatibility and required Kv against your duty before ordering.
