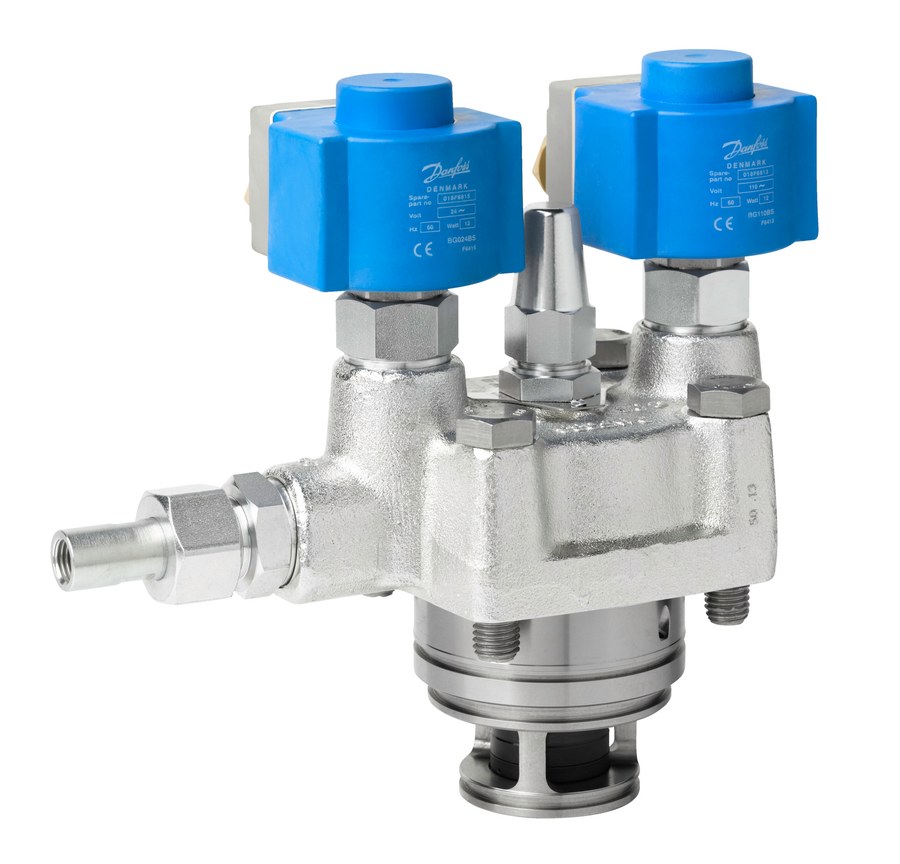

Danfoss ICLX 50 two-step solenoid valve function module (top assembly)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICLX 50 two-step (pilot-operated) solenoid valve function module / top assembly (code 027H5204), steel, for the ICLX 50 / ICV 50 Flexline valve. Kv 47 m3/h, maximum working pressure 65 bar; media temperature -60 to +120 C. The function module is the complete operating top assembly that mounts onto an ICV PM valve housing to build a two-step ICLX 50 valve; it does not include the valve body. Two-step opening for high differential-pressure duties such as hot-gas defrost in industrial refrigeration; coils ordered separately. Suitable for a broad range of refrigerants including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICLX 50 two-step solenoid valve function module (top assembly)
- Code number
- 027H5204
- Fits valve
- ICLX 50 / ICV 50 (with top assembly)
- Nominal size
- 50 mm (2 in)
- Kv value
- 47 m3/h
- Body material
- Steel
- Valve operation
- Solenoid operated, two-step (pilot-operated)
- Function
- top assembly / function module (mounts onto an ICV PM valve housing; valve body ordered separately)
- Coils
- ordered separately (not included)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Net weight
- 5.016 kg; gross weight: 8.859 kg
- Refrigerants
- R717 (ammonia), R744 (CO2), R134a, R404A, R407C, R410A, R290 and others
- Approvals
- EAC, TUV, UL
- EU RoHS / China RoHS
- compliant
- EAN
- 5702428483179
- Product group
- Press. and temp. regul. valves
- Actuator system
- 2 EVM pilot sol valve module
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Cv value [gal/min]
- 54.5 gal/min
- Description
- Function module
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Kv value [m³/h]
- 47 m³/h
- Manual operation option
- Manual open spindle
- Opening configuration
- 1-step (optional setting)
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Step 1 opening degree (~) [%]
- 10 %
- Step 2 initialization
- Delta p < 1.25 bar (18 psig)
- Used for product
- ICV 50
- Used for product comments
- With top assembly
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
Two-step solenoid valve function module (top assembly) for the ICLX 50 / ICV 50 Flexline valve, for high differential-pressure duties (e.g. hot-gas defrost) in industrial refrigeration. Kv 47 m3/h, 65 bar working pressure. Mounts onto an ICV 50 PM valve housing (valve body ordered separately); coils ordered separately. Verify the housing, refrigerant and required Kv against your duty before ordering.
