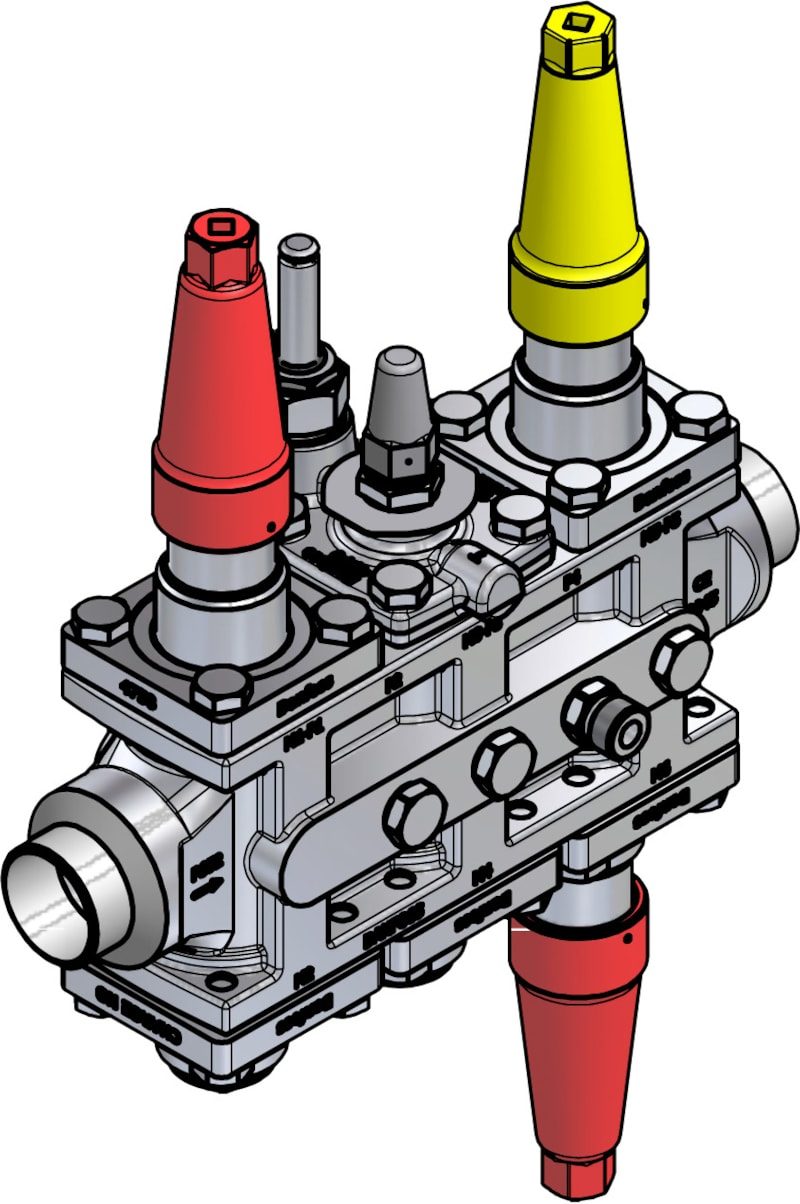

Danfoss ICF SS 25-6-3RB stainless steel valve station, 32 mm, ASME B 36.19M Schedule 40S (code 027L3587)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF SS 25-6-3RB Flexline stainless steel valve station (code 027L3587). The ICF SS valve station combines several refrigeration control functions in a single stainless steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 6-function-module (ICF SS 25-6) configuration with 32 mm butt weld end connections to ASME B 36.19M Schedule 40S. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. The stainless steel housing and modules suit corrosive and hygienic-duty plant where the carbon-steel ICF line is unsuitable. Supplied as a complete factory-assembled and pressure-tested station.
Specifications
- Part number
- 027L3587
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
Compatibility
6-module ICF SS stainless steel valve station, 32 mm butt weld connection to ASME B 36.19M Schedule 40S. Confirm the configuration designation (ICF SS 25-6-3RB) and connection size/standard before ordering; the carbon-steel ICF line and the EN 10220 connection-standard variants are separate code numbers.
Approvals
