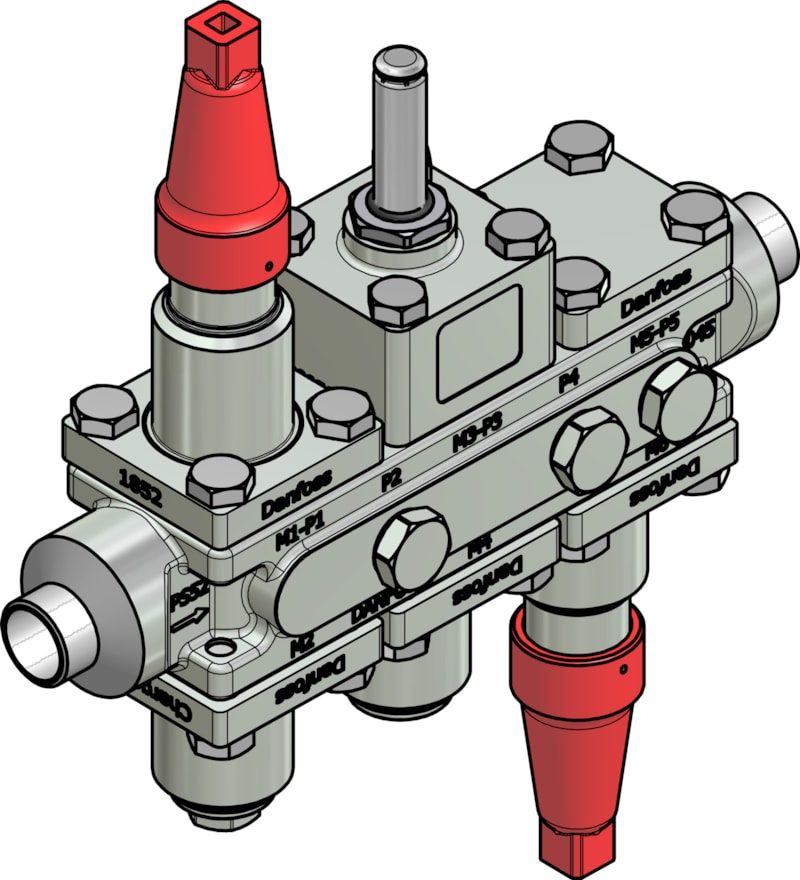

Danfoss ICF 20-6-90 Flexline valve station, 20 mm, EN 10220 (code 027L3387)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-90 Flexline valve station (code 027L3387). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Check valve (ICFC 20), Blank top cover (ICFB 20), Stop valve (ICFS 20). Connection size 20 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-6-90 Flexline valve station
- Code number
- 027L3387
- Connection size
- 20 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Check valve (ICFC 20), Blank top cover (ICFB 20), Stop valve (ICFS 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- gross weight 10.604 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428891479
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Filter
- Module 2 type
- ICFF 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20H
- Module 4
- Check valve
- Module 4 type
- ICFC 20
- Module 5
- Blank top cover
- Module 5 type
- ICFB 20
- Module 6
- Stop valve
- Module 6 type
- ICFS 20
- Side port connection size
- 3/8 in
- Side port connection type
- G
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-90 (Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20H), Check valve (ICFC 20), Blank top cover (ICFB 20), Stop valve (ICFS 20)). The station bolts into a 20 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
