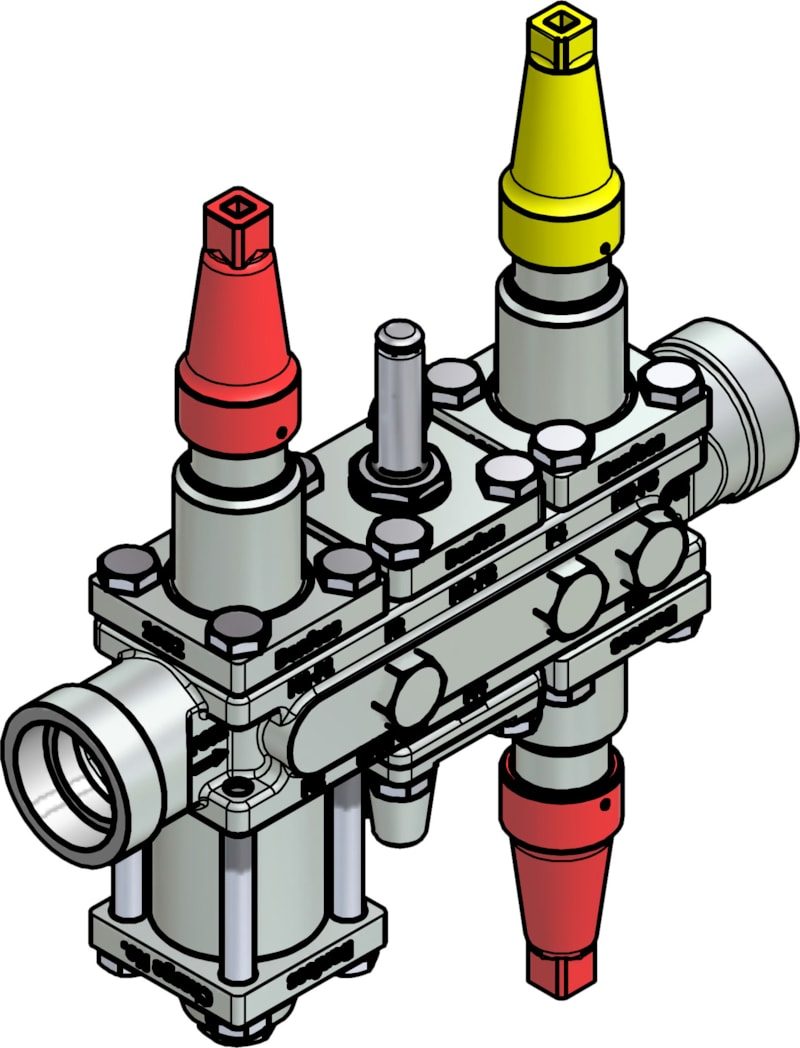

Danfoss ICF 20-6-1RA Flexline valve station, 32 mm, ASME B 16.11 (code 027L3008)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-6-1RA Flexline valve station (code 027L3008). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: ICFS 20 stop valve, ICFF 20E filter, ICFE 20 solenoid valve, ICFO 20 manual opening, ICFR 20A manual regulating valve, ICFS 20 stop valve. Connection size 32 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L3008
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- ASME B 16.11
- Standard size
- 32 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-1RA (ICFS 20 stop valve, ICFF 20E filter, ICFE 20 solenoid valve, ICFO 20 manual opening, ICFR 20A manual regulating valve, ICFS 20 stop valve). The station bolts into a 32 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
