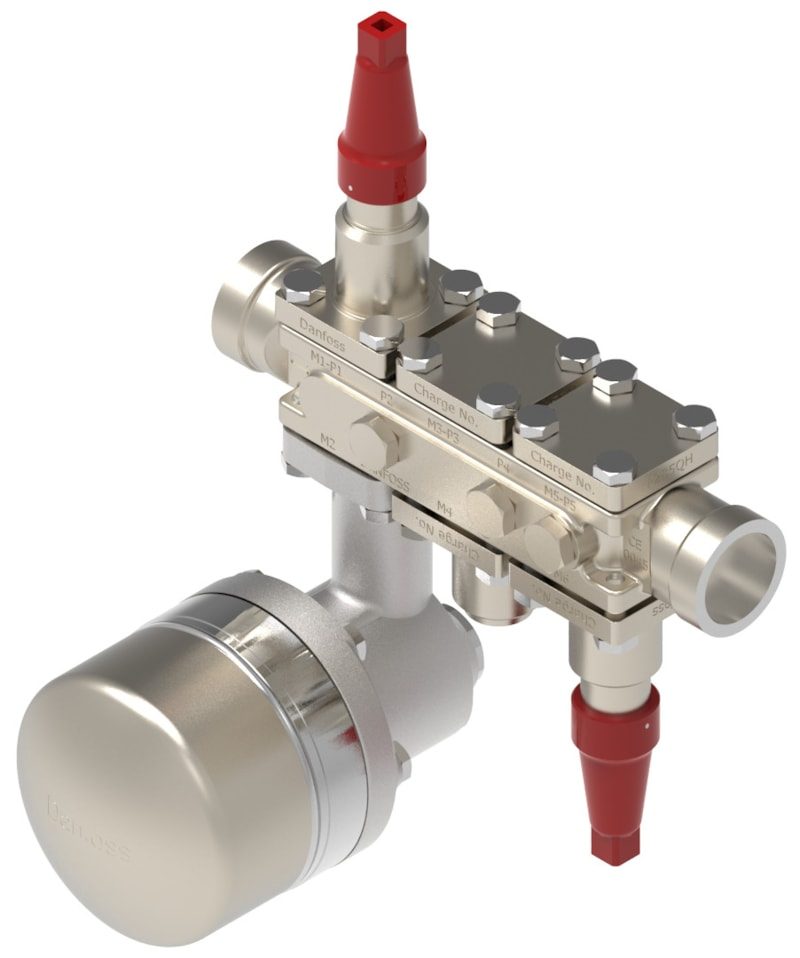

Danfoss ICF 20-6-110D1P1 carbon steel valve station, 25 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-110D1P1 Flexline carbon steel valve station (code 027L3626). The ICF Flexline valve station combines several refrigeration control functions in a single carbon steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 6-function-module (ICF 20-6) configuration with 25 mm socket weld end connections to ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. Supplied as a complete factory-assembled and pressure-tested station.
Technical Specifications
- Type
- ICF 20-6-110D1P1 Flexline carbon steel valve station
- Code number
- 027L3626
- Module count
- 6 function modules (ICF 20-6)
- Connection size
- 25 mm
- Connection type
- Socket weld
- Connection standard
- ASME B 16.11
- Housing and module material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Applicable refrigerants
- HCFC, non-flammable HFC, R717 (ammonia), R744 (CO2)
- Weight
- net weight 15.525 kg, gross weight 18.439 kg
- Approvals
- CE, EAC, TUV, UL
- EAN
- 5702428573115
- Net weight
- 15.525 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Float Expansion Valve
- Module 2 type
- ICFD 20
- Module 3
- Blank top cover
- Module 3 type
- ICFB 20
- Module 4
- Check valve
- Module 4 type
- ICFC20-PHIGH-DP
- Module 5
- Blank top cover
- Module 5 type
- ICFB 20
- Module 6
- Stop valve
- Module 6 type
- ICFS 20
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity [pc]
- 6 pc
- Surface coating
- ZnCr04
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-20-6-25SSXD1BXC1BXSX6AAX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
6-module ICF carbon steel valve station, 25 mm socket weld connection to ASME B 16.11. Confirm the configuration designation (ICF 20-6-110D1P1) and connection size/standard before ordering; the stainless-steel ICF SS line and the other connection-standard variants are separate code numbers.
