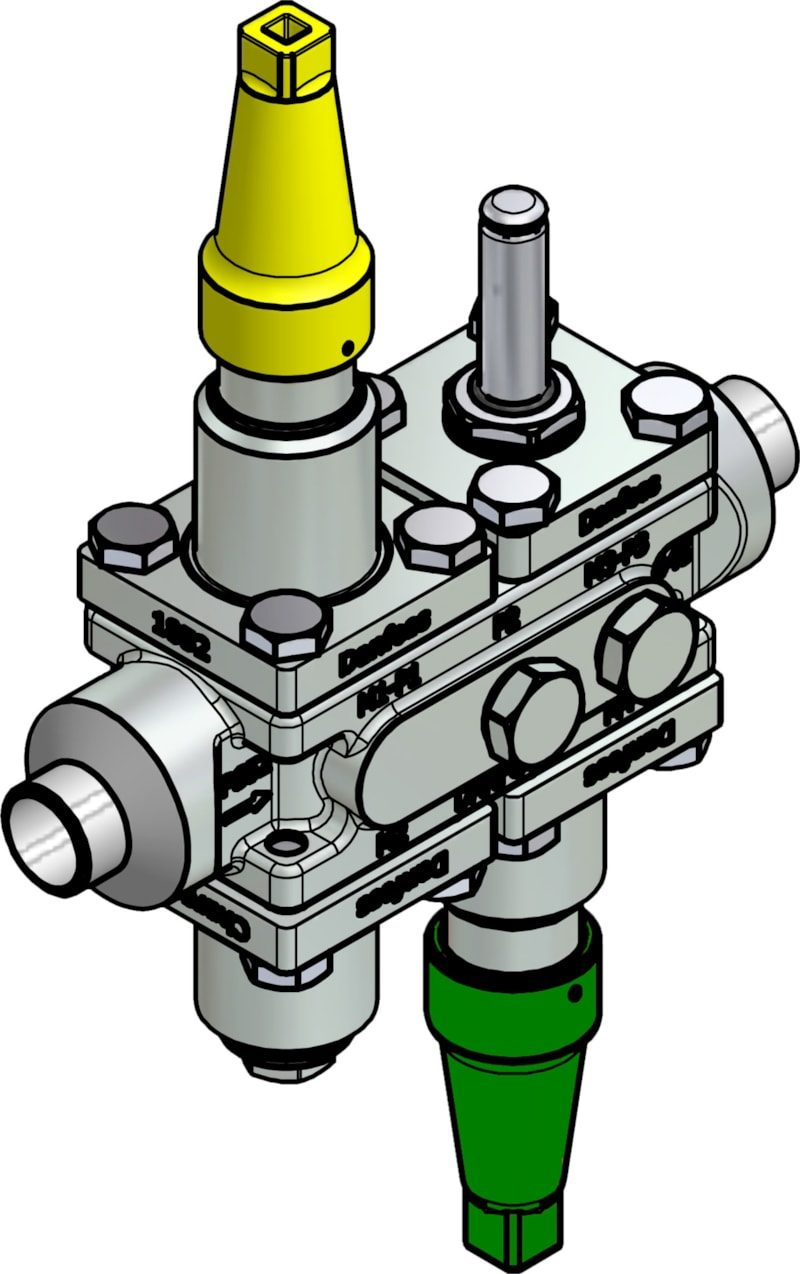

Danfoss ICF 20-4-90 Flexline valve station, 20 mm, EN 10220 (code 027L3155)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-4-90 Flexline valve station (code 027L3155). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Manual regulating valve (ICFR 20A), Filter (ICFF 20), Solenoid valve (ICFE 20), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-4-90 Flexline valve station
- Code number
- 027L3155
- Connection size
- 20 mm
- Connection standard
- EN 10220
- Module configuration
- Manual regulating valve (ICFR 20A), Filter (ICFF 20), Solenoid valve (ICFE 20), Stop/check valve (ICFN 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 6.423 kg, gross weight 7.798 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428401135
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Manual regulating valve
- Module 1 type
- ICFR 20A
- Module 2
- Filter
- Module 2 type
- ICFF 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20
- Module 4
- Stop/check valve
- Module 4 type
- ICFN 20
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- Zn (TLP)
- Type code ICF
- ICF-20-4-20DRAFXEXNXXXXX4XXX
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-4-90 (Manual regulating valve (ICFR 20A), Filter (ICFF 20), Solenoid valve (ICFE 20), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 20-4-90 Flexline valve station, 20 mm, EN 10220 (code 027L3156)
Danfoss
Danfoss ICF 20-6-15RA Flexline valve station, 25 mm, EN 10220
027L3157
Danfoss
Danfoss ICF 20-6-5MB66 Flexline valve station, 20 mm, ASME B 16.11
027L3159
Danfoss
Danfoss ICF 20-6-5MB66 Flexline valve station, 20 mm, EN 10220
027L3161
Danfoss
Danfoss ICF 20-4-104D1 Flexline valve station, 32 mm, EN 10220
027L3170
Danfoss
Danfoss ICF 20-6-5HMA Flexline valve station, 25 mm, EN 10220
027L3322
Danfoss
Danfoss ICF 20-6-5HMA Flexline valve station, 25 mm, ASME B 16.11
027L3323
Danfoss

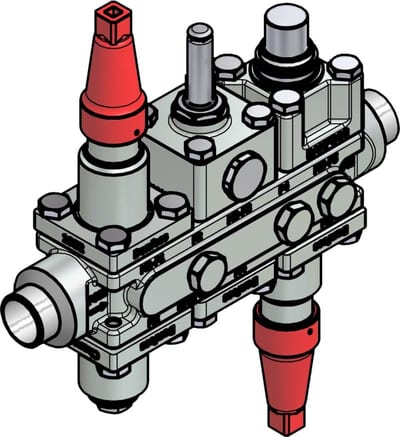

Danfoss ICF 20-6-5HMC Flexline valve station, 25 mm, EN 10220
