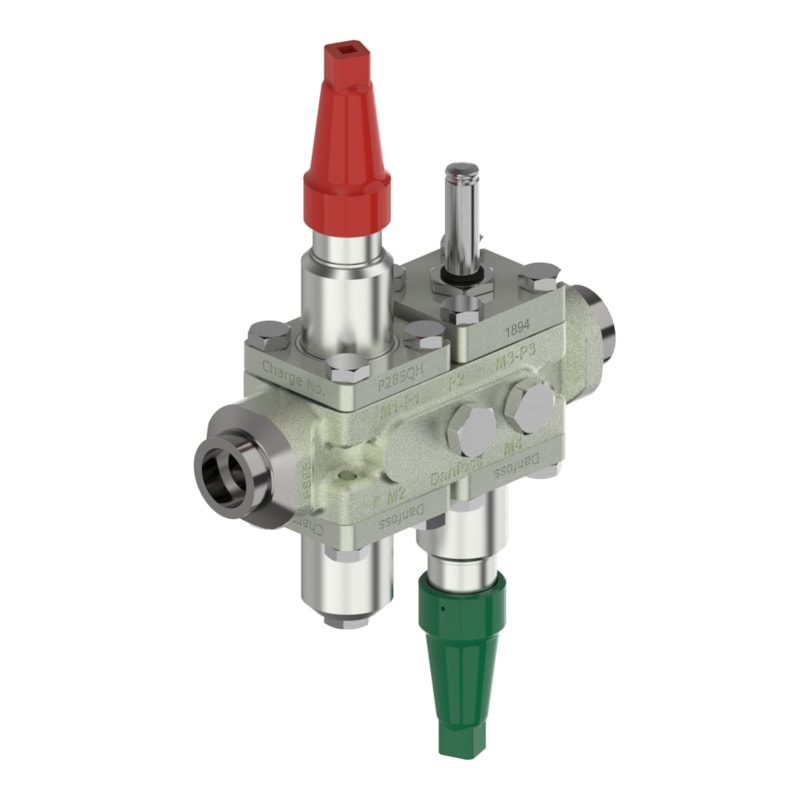

Danfoss ICF 20-4-13B Flexline valve station, 20 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-4-13B Flexline valve station (code 027L4666). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFA 20B), Check valve (ICFN 20). Connection size 20 mm, connection standard ASME B 16.11 (socket weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-4-13B Flexline valve station
- Code number
- 027L4666
- Connection size
- 20 mm
- Connection standard
- ASME B 16.11
- Connection type
- Socket weld
- Module configuration
- Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFA 20B), Check valve (ICFN 20)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 6.772 kg, gross weight 7.186 kg
- Approvals
- C-UL-US Listed, EAC
- EAN
- 5715162976623
- Net weight
- 6.772 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Filter
- Module 2 type
- ICFF 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFA 20B
- Module 4
- Check valve
- Module 4 type
- ICFN 20
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8-18
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-4-13B (Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFA 20B), Check valve (ICFN 20)). The station bolts into a 20 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 20-4-13C Flexline valve station, 20 mm, ASME B 16.11
027L4667
Danfoss
Danfoss ICF 20-4-12B Flexline valve station, 20 mm, EN 10220
027L4669
Danfoss
Danfoss ICF 20-4-12C Flexline valve station, 20 mm, EN 10220
027L4670
Danfoss
Danfoss ICF 20-4-12B Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4671
Danfoss
Danfoss ICF 20-4-12C Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4672
Danfoss
Danfoss ICF 20-4-12B Flexline valve station, 20 mm, ASME B 16.11
027L4673
Danfoss
Danfoss ICF 20-4-12C Flexline valve station, 20 mm, ASME B 16.11
027L4674
Danfoss

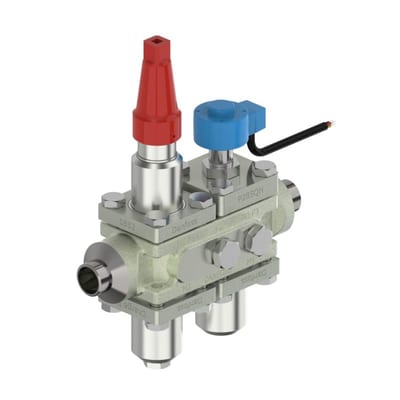

Danfoss ICF 20-4-16LD NeoCharge Flexline valve station, 20 mm, EN 10220
