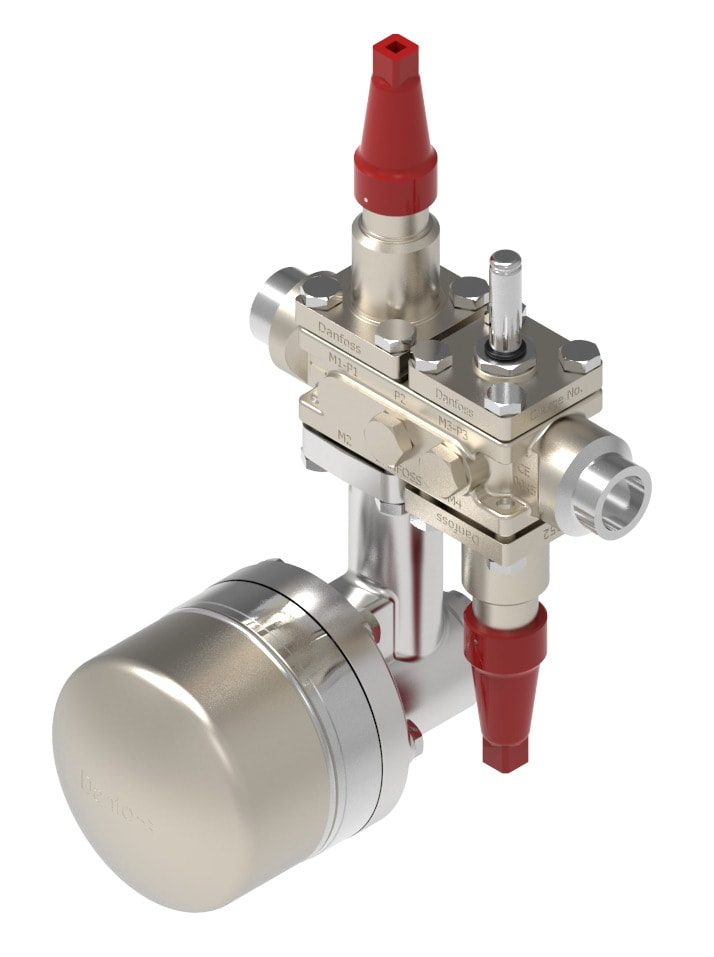

Danfoss ICF 20-4-102D2 carbon steel valve station, 20 mm, ASME B 16.11 (code 027L3607)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-4-102D2 Flexline carbon steel valve station (code 027L3607). The ICF Flexline valve station combines several refrigeration control functions in a single carbon-steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 4-function-module (ICF 20-4) configuration with 20 mm socket weld end connections to ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. Supplied as a complete factory-assembled and pressure-tested station.
Specifications
- Part number
- 027L3607
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
Compatibility
4-module ICF carbon-steel valve station, 20 mm socket weld connection to ASME B 16.11. Confirm the configuration designation (ICF 20-4-102D2) and connection size/standard before ordering; the stainless-steel ICF SS line and the other connection-standard variants are separate code numbers.
Approvals
