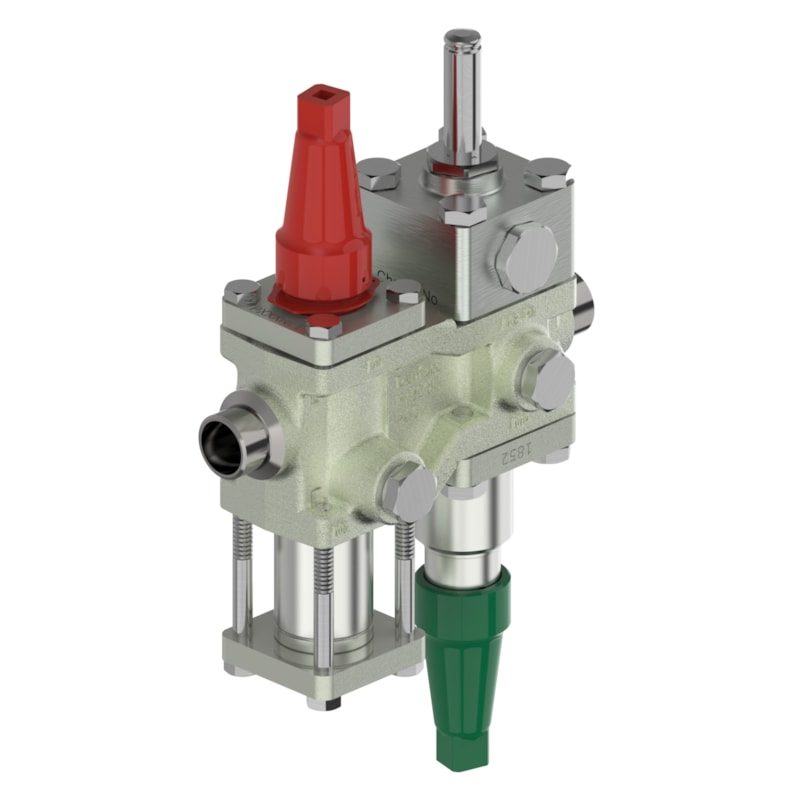

Danfoss ICF 15-4-13C Flexline valve station, 20 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15-4-13C Flexline valve station (code 027L4654). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFA 20C), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-13C Flexline valve station
- Code number
- 027L4654
- Connection size
- 20 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFA 20C), Stop/check valve (ICFN 20)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 7 kg, gross weight 7.55 kg
- Approvals
- C-UL-US Listed, EAC
- EAN
- 5715162976746
- Net weight
- 7 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 450 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Solenoid valve
- Module 3 type
- ICFA 20C
- Module 4
- Stop/check valve
- Module 4 type
- ICFN 20
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P1-P2
- Side port quantity [pc]
- 2 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-13C (Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFA 20C), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 15-4-13B Flexline valve station, 15 mm, ASME B 36.10M Schedule 80
027L4655
Danfoss
Danfoss ICF 15-4-13C Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4656
Danfoss
Danfoss ICF 20-4-13C Flexline valve station, 20 mm, EN 10220
027L4657
Danfoss
Danfoss ICF 20-4-13C Flexline valve station, 25 mm, EN 10220
027L4658
Danfoss
Danfoss ICF 15-4-13B Flexline valve station, 20 mm, ASME B 16.11
027L4660
Danfoss
Danfoss ICF 15-4-12B Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4662
Danfoss
Danfoss ICF 20-4-13C Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4659
Danfoss

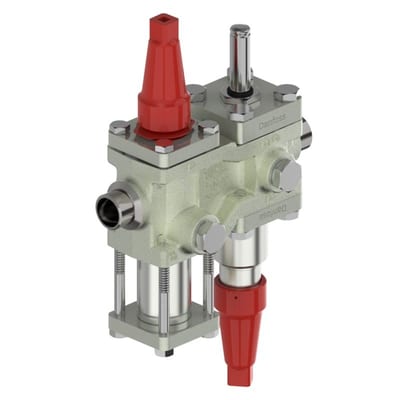

Danfoss ICF 15-4-12B Flexline valve station, 20 mm, EN 10220
