Product Description

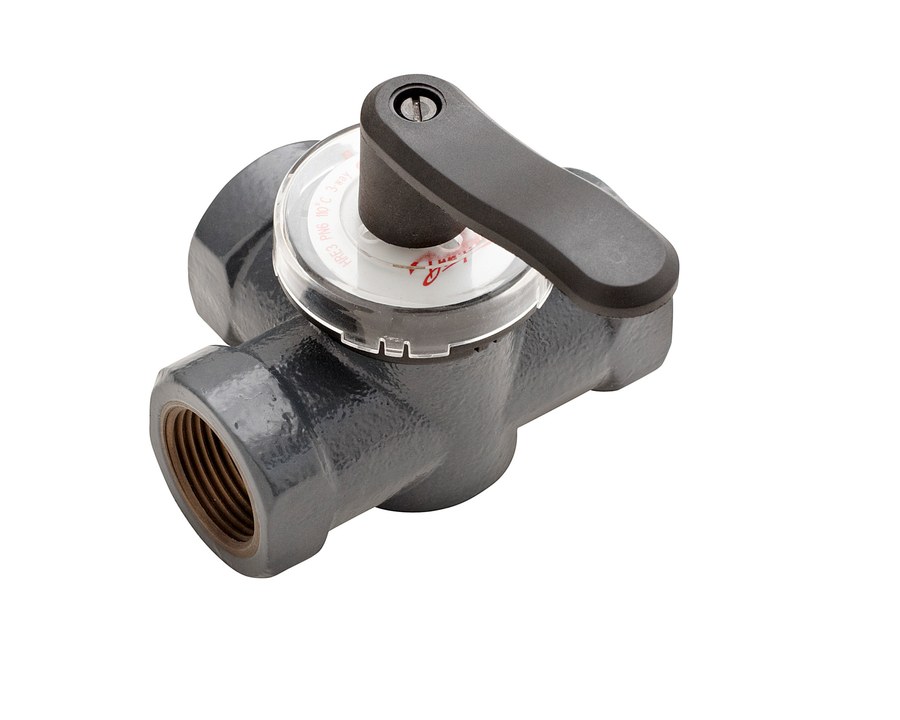

Danfoss HRE 3 3-way rotary mixing valve body (OEM designation "HRE 3 PN6 20/6.3 rotary 3-way Rp3/4"). A rotating-slide 3-way valve for mixing or diverting service in heating and district-heating circuits — the slide is turned through 90° by a Danfoss AMB rotary actuator (ordered separately) or by the manual handle. Valve size DN 20; PN 6; Kvs 6.3 m³/h m³/h; Internal thread connection (Rp 3/4); S characteristic flow characteristic; operating torque 5 N-m. Body Grey cast iron EN-GJL-250 (GG-25); cone DZR brass CuZn36Pb2AS (CW 602N); slide shoe DZR brass CuZn36Pb2AS (CW 602N); stuffing-box seal EPDM; port leakage Diverting: 0.5 | Mixing: 1.0 % Kvs. Maximum closing differential pressure 1 bar (mixing) / 1 bar (diverting). Media District heating/cooling circulation water — alternative Glycolic water up to 50%, 2 °C to 110 °C. OEM P/N 065Z0418. EAN 5710104033341. Technical data quoted verbatim from store.danfoss.com (code 065Z0418).
Technical Specifications
- Code number
- 065Z0418
- Type
- HRE 3
- Product group
- Other valves
- Gross weight
- 1.113 Kilogram
- Net weight
- 1.09 Kilogram
- Volume
- 1.921 Liter
- Application
- Heating
- Closing differential pressure (diverting) [bar] [Max]
- 1 bar
- Closing differential pressure (mixing) [bar] [Max]
- 1 bar
- Connection size
- Rp 3/4
- Connection types
- Internal thread
- Description
- HRE 3 PN6 20/6.3 rotary 3-way Rp3/4
- Diameter [mm]
- 20 mm
- Flow characteristic
- S characteristic
- Function
- Mixing valve
- Kvs values [m³/h]
- 6.3 m³/h
- Leakage through port max. [% Kvs]
- Diverting: 0.5 | Mixing: 1.0
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 110 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting version
- Flow
- Number of ports
- 3
- Operating torque [Nm]
- 5 N-m
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 6 bar
- Slide shoe material
- DZR brass CuZn36Pb2AS (CW 602N)
- Stuffing box sealing material
- EPDM
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- DZR brass CuZn36Pb2AS (CW 602N)
- EAN
- 5710104033341
- HS code
- 8481.80
- Nominal diameter
- DN20
Standards & Compliance
- Size / Series
- HRE 3
- Material
- Grey cast iron EN-GJL-250 (GG-25)
- Thread Standard
- Rp 3/4
- Pressure Rating
- PN 6
- Temperature Range
- 2 °C to 110 °C
- HS Code
- 8481.80
Compatibility & Fitment
Rotary 3-way mixing valve for weather-compensated heating and cooling circuits. Turn the threaded body with a Danfoss AMB rotary actuator (ordered separately) or the manual handle. Confirm valve size (DN 20), Kvs (6.3 m³/h m³/h), PN 6 and thread size Rp 3/4 against the HRB/HRE/HFE data sheet before ordering; the actuator, connection set and stuffing-box service parts are ordered separately (065Z0439-0461).
Product Documentation
More from Danfoss
Danfoss
Danfoss HRE 3 rotary 3-Way mixing valve body DN 25 Kvs 10 m³/h PN 6 Rp 1
065Z0419
Danfoss
Danfoss HRE 3 rotary 3-Way mixing valve body DN 32 Kvs 16 m³/h PN 6 Rp 1 1/4
065Z0420
Danfoss
Danfoss HRE 3 rotary 3-Way mixing valve body DN 40 Kvs 25 m³/h PN 6 Rp 1 1/2
065Z0421
Danfoss
Danfoss HRE 3 rotary 3-Way mixing valve body DN 50 Kvs 40 m³/h PN 6 Rp 2
065Z0422
Danfoss
Danfoss HRE 4 rotary 4-Way mixing valve body DN 20 Kvs 6.3 m³/h PN 6 Rp 3/4
065Z0423
Danfoss
Danfoss HRE 4 rotary 4-Way mixing valve body DN 25 Kvs 10 m³/h PN 6 Rp 1
065Z0424
Danfoss

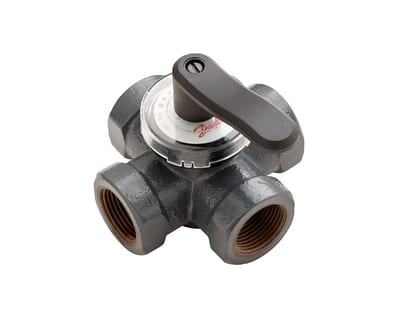

Danfoss HRE 4 rotary 4-Way mixing valve body DN 32 Kvs 16 m³/h PN 6 Rp 1 1/4
