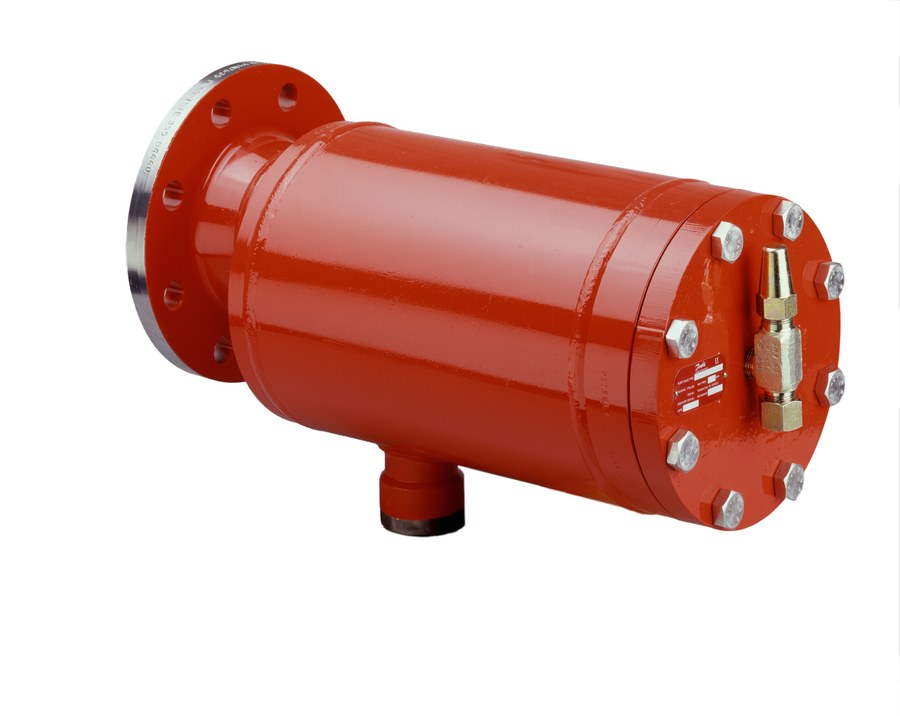

Danfoss HFI 050 F high pressure float valve (liquid level regulating valve), 150 mm (6 in) flange inlet (DIN 2635/2512-F EN 1092-1 EN 10220), 50 mm (2 in) butt weld outlet, 50 mm nozzle, 800 kW R717 rated capacity, 25 bar MWP with two external connections for drainage and pressure equalization

Danfoss HFI 050 F high pressure float valve, code 148G3762, a liquid level regulating (float expansion) valve for industrial refrigeration. HFI is a high-pressure float valve with an internal liquid measuring device; it is designed for direct flange mounting or welding onto plate-heat-exchanger type condensers, and can also be mounted directly on vessels. The valve is direct acting, so no differential pressure is required to activate it: the internal float senses the condensed liquid level and meters high-pressure liquid refrigerant on to the low-pressure side, maintaining the correct liquid level in the high-pressure receiver/condenser. It is equipped with a purge valve for venting non-condensable gases (e.g. air) from the top of the valve housing, which also assists servicing. Inlet connection 150 mm (6 in) flange inlet (DIN 2635/2512-F EN 1092-1 EN 10220); outlet 50 mm (2 in) butt weld; nozzle (orifice) 50 mm. Rated capacity 800 kW (227 TR) on R717 (ammonia) at Temp. -10 - 35 °C; valve constant 33.58. This version has two external connections on the housing for drainage and pressure equalization. Housing (shell and flange) is special steel approved for low-temperature application. Suitable for R717 (ammonia), HCFC and HFC refrigerants with a liquid density of 500-700 kg/m³. Maximum working pressure 25 bar (363 psig); media temperature range -50 °C to +80 °C (-58 °F to +176 °F). PED category III. CE marked; EAC (EAEU) certified.

Type

Danfoss HFI 050 F high pressure float valve (liquid level regulating valve)

Code number

148G3762

Series

HFI (high pressure float valve with internal liquid measuring device)

Function

float-operated high-pressure liquid level regulation / float expansion (direct acting; maintains liquid level in high-pressure receiver / condenser)

Nozzle (orifice) size

50 mm

Inlet connection type

Flange

Inlet connection size

150 mm (6 in)

Outlet connection type

Butt weld

Outlet connection size

50 mm (2 in)

Connection standard

DIN 2635/2512-F EN 1092-1 EN 10220

External connections

two, for drainage and pressure equalization

Purge valve

yes (for venting non-condensable gases)

Rated capacity (R717)

800 kW (227 TR)

Rated capacity conditions

R717: Temp. -10 - 35 °C

Valve constant

33.58

Maximum working pressure

25 bar (363 psig)

Media temperature range

-50 °C to +80 °C (-58 °F to +176 °F)

Refrigerants

R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A

Suitable refrigerant liquid density

500-700 kg/m³

Housing material

special steel approved for low-temperature application

PED category

III

Approvals

CE marked; EAC (EAEU) certified

Gross weight

47.5 Kilogram

EAN

5702428412391

Standard

DIN 2635/2512-F EN 1092-1 EN 10220

Size / Series

150 mm

Material

Low-temperature steel

Pressure Rating

25 bar

Temperature Range

-50 °C to +80 °C

HS Code

8481.80
