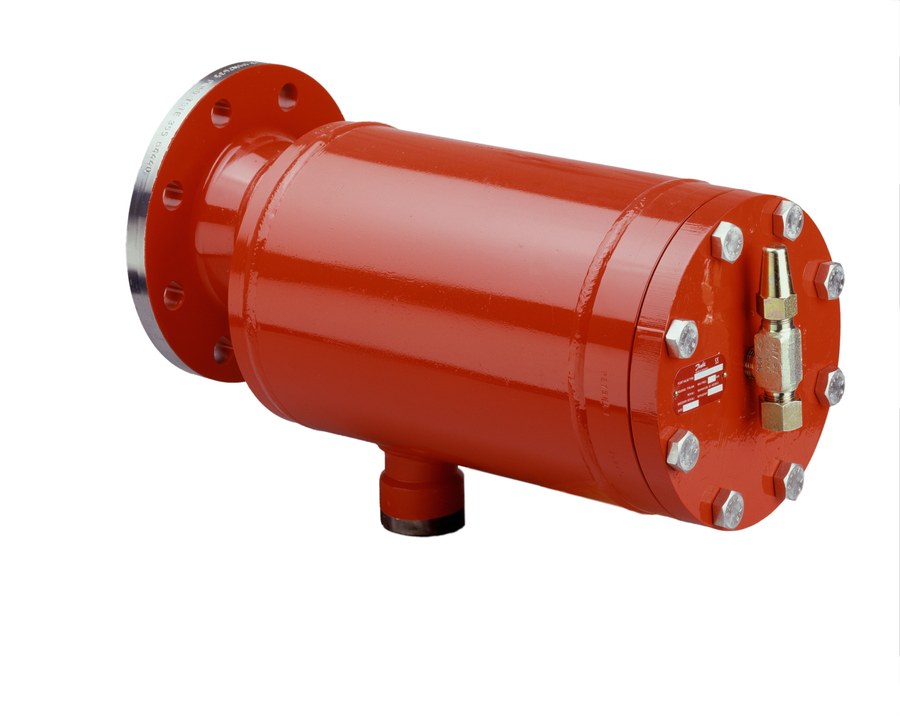

Danfoss HFI 040 F high pressure float valve (liquid level regulating valve), 100 mm (4 in) flange inlet (DIN 2635/2512-F EN 1092-1 EN 10220), 50 mm (2 in) butt weld outlet, 40 mm nozzle, 400 kW R717 rated capacity, 25 bar MWP

Danfoss HFI 040 F high pressure float valve, code 148G3102, a liquid level regulating (float expansion) valve for industrial refrigeration. HFI is a high-pressure float valve with an internal liquid measuring device; it is designed for direct flange mounting or welding onto plate-heat-exchanger type condensers, and can also be mounted directly on vessels. The valve is direct acting, so no differential pressure is required to activate it: the internal float senses the condensed liquid level and meters high-pressure liquid refrigerant on to the low-pressure side, maintaining the correct liquid level in the high-pressure receiver/condenser. It is equipped with a purge valve for venting non-condensable gases (e.g. air) from the top of the valve housing, which also assists servicing. Inlet connection 100 mm (4 in) flange inlet (DIN 2635/2512-F EN 1092-1 EN 10220); outlet 50 mm (2 in) butt weld; nozzle (orifice) 40 mm. Rated capacity 400 kW (114 TR) on R717 (ammonia) at Temp. -10 - 35 °C; valve constant 16.79. Housing (shell and flange) is special steel approved for low-temperature application. Suitable for R717 (ammonia), HCFC and HFC refrigerants with a liquid density of 500-700 kg/m³. Maximum working pressure 25 bar (363 psig); media temperature range -50 °C to +80 °C (-58 °F to +176 °F). PED category III. CE marked; EAC (EAEU) certified.

Type

Danfoss HFI 040 F high pressure float valve (liquid level regulating valve)

Code number

148G3102

Series

HFI (high pressure float valve with internal liquid measuring device)

Function

float-operated high-pressure liquid level regulation / float expansion (direct acting; maintains liquid level in high-pressure receiver / condenser)

Nozzle (orifice) size

40 mm

Inlet connection type

Flange

Inlet connection size

100 mm (4 in)

Outlet connection type

Butt weld

Outlet connection size

50 mm (2 in)

Connection standard

DIN 2635/2512-F EN 1092-1 EN 10220

Side branch 1 connection

3/8 in

Side branch 2 connection

1/2 in

Purge valve

yes (for venting non-condensable gases)

Rated capacity (R717)

400 kW (114 TR)

Rated capacity conditions

R717: Temp. -10 - 35 °C

Valve constant

16.79

Maximum working pressure

25 bar (363 psig)

Media temperature range

-50 °C to +80 °C (-58 °F to +176 °F)

Refrigerants

R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A

Suitable refrigerant liquid density

500-700 kg/m³

Housing material

special steel approved for low-temperature application

PED category

III

Approvals

CE marked; EAC (EAEU) certified

Net weight

45.49 Kilogram

Gross weight

53.49 Kilogram

EAN

5702428344074

Standard

DIN 2635/2512-F EN 1092-1 EN 10220

Size / Series

100 mm

Material

Low-temperature steel

Pressure Rating

25 bar

Temperature Range

-50 °C to +80 °C

HS Code

8481.80
